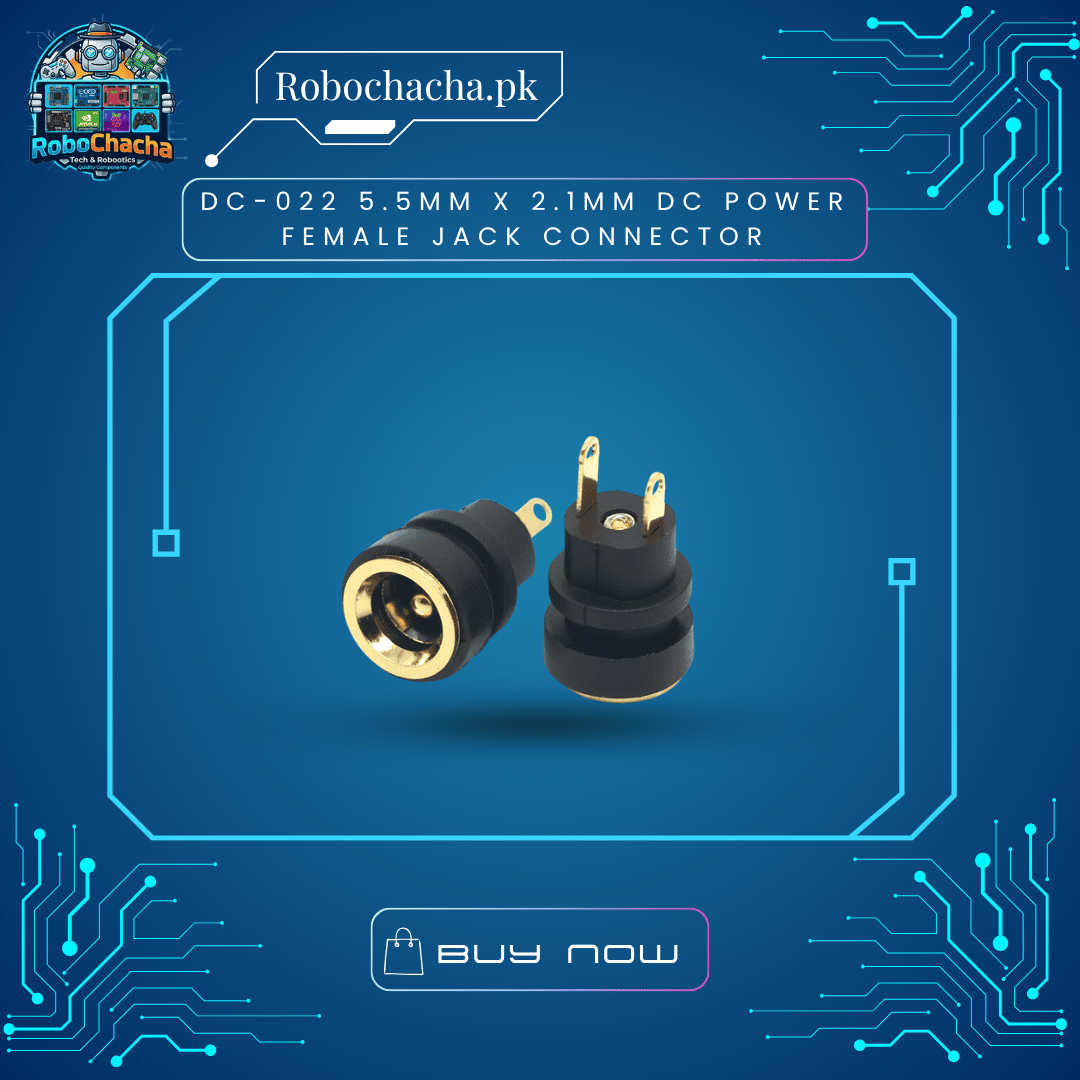

DC-022 5.5mm x 2.1mm DC Power Female Jack Connector – Panel Mount Chassis Socket Plug for Electronics & DIY Projects in Pakistan

Overview

When building custom electronics enclosures, power supply boxes, or benchtop testing rigs, providing a clean and secure external power input interface is essential. The DC-022 DC Power Female Jack Connector is the industry-standard panel-mount barrel socket designed to accept standard 5.5mm x 2.1mm male DC plugs. Featuring a robust threaded metal housing with a tightening nut and secure solder lugs on the rear, this jack ensures a reliable, vibration-resistant power connection for a wide variety of low-voltage electronics.

Key Features

• Standard Barrel Dimensions: Precision-engineered to fit standard 5.5mm outer diameter and 2.1mm inner pin DC power plugs seamlessly.

• Secure Panel Mount Design: Includes a threaded body and mounting nut, allowing you to easily install the socket securely onto project boxes, metal sheets, or plastic enclosures.

• Durable Construction: Built with high-temperature thermoplastic housing and corrosion-resistant metal contacts for long-lasting operational reliability.

• Easy Wire Termination: Rear solder terminals provide clear connection points for positive and negative hookup wires.

Technical Specifications

Common Applications

• DIY Electronics Enclosures: Add a professional external power jack to custom Arduino, ESP32, and Raspberry Pi project cases.

• CCTV & Security Systems: Replacement or custom panel socket for security camera power distribution boxes.

• LED Lighting Setups: Perfect input socket for single-color and RGB LED strip controllers or power splitters.

• Note to customers: Drill a clean chassis hole matching the threaded barrel diameter (approx. 11mm to 12mm) for a snug, professional panel installation!
