Overview

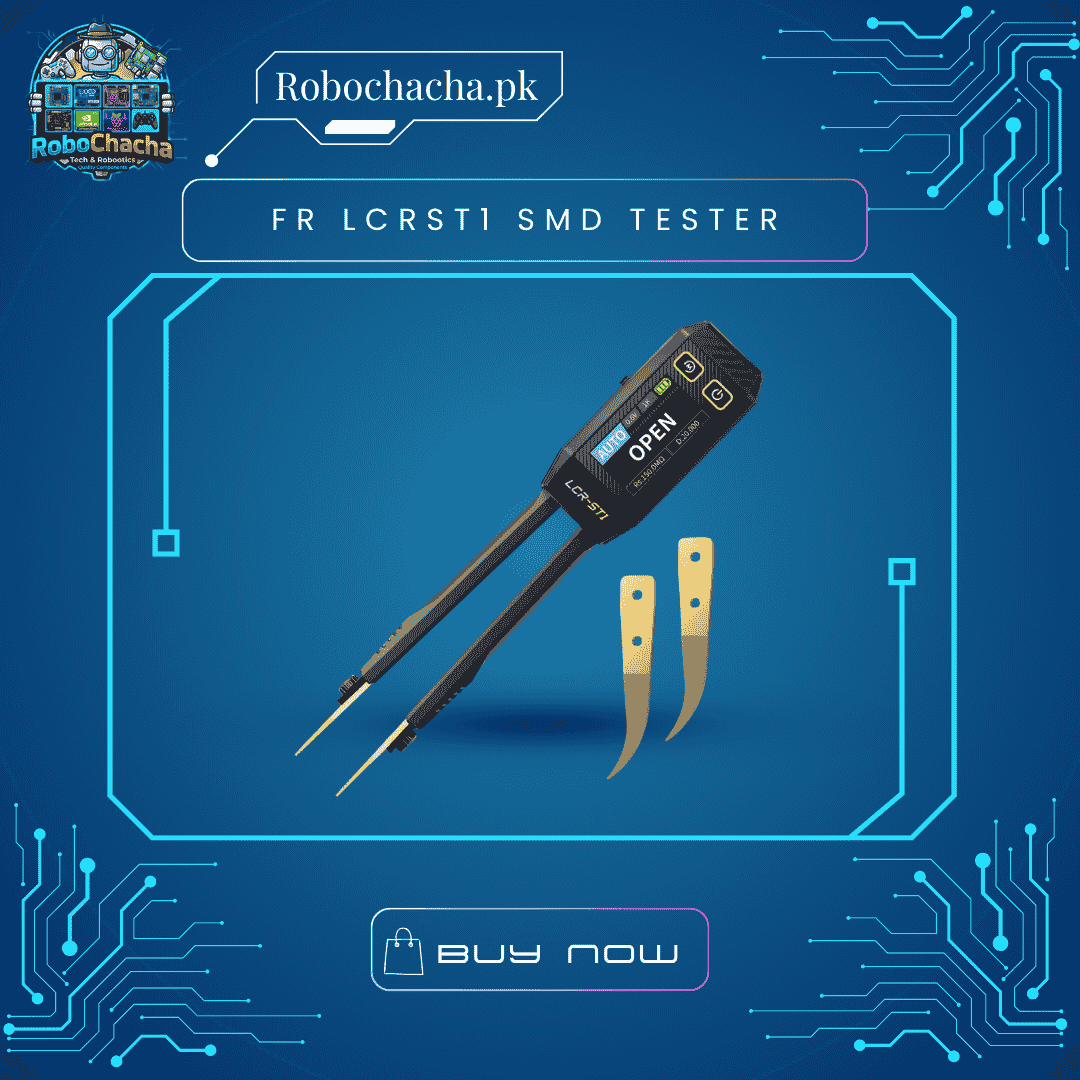

The FNIRSI LCR-ST1 is a revolutionary “Smart Tweezer” designed for the modern electronics lab. Gone are the days of fumbling with multimeter probes on tiny surface-mount components. This device automatically identifies Resistors, Capacitors, and Inductors (LCR) the moment you touch them. With its integrated 1.14-inch HD color display, you get real-time data on ESR, D/Q values, and frequency without ever looking away from your workpiece.
Key Features
Intelligent Auto-ID: Automatically detects the component type (R, L, or C) and selects the best measuring range.
ESR Measurement: Essential for identifying “tired” or failing electrolytic capacitors in power supplies.
1.14″ Color Screen: Crisp display showing primary values, secondary parameters (ESR, Q, D), and battery status.
Replaceable Gold-Plated Tips: Includes pointed and hook-type tips for different PCB layouts and component sizes.
Data Export: Connect to your PC via USB-C to export measurement history as a CSV file for documentation.
Magnetic Design: The tweezers feature a magnetic adsorption function for easy storage on your workbench.
Technical Specifications
| Feature | Specification |
| Resistance Range | 10 mΩ to 10 MΩ |
| Capacitance Range | 1 pF to 22 mF |
| Inductance Range | 1 μH to 10 H |
| Test Frequencies | 100Hz, 1kHz, 10kHz |
| Test Voltage | 0.3V / 0.6V RMS |
| Display | 1.14-inch HD Color Screen |
| Battery | 250mAh Lithium (USB-C Rechargeable) |
| Weight | Ultra-light 41g |
