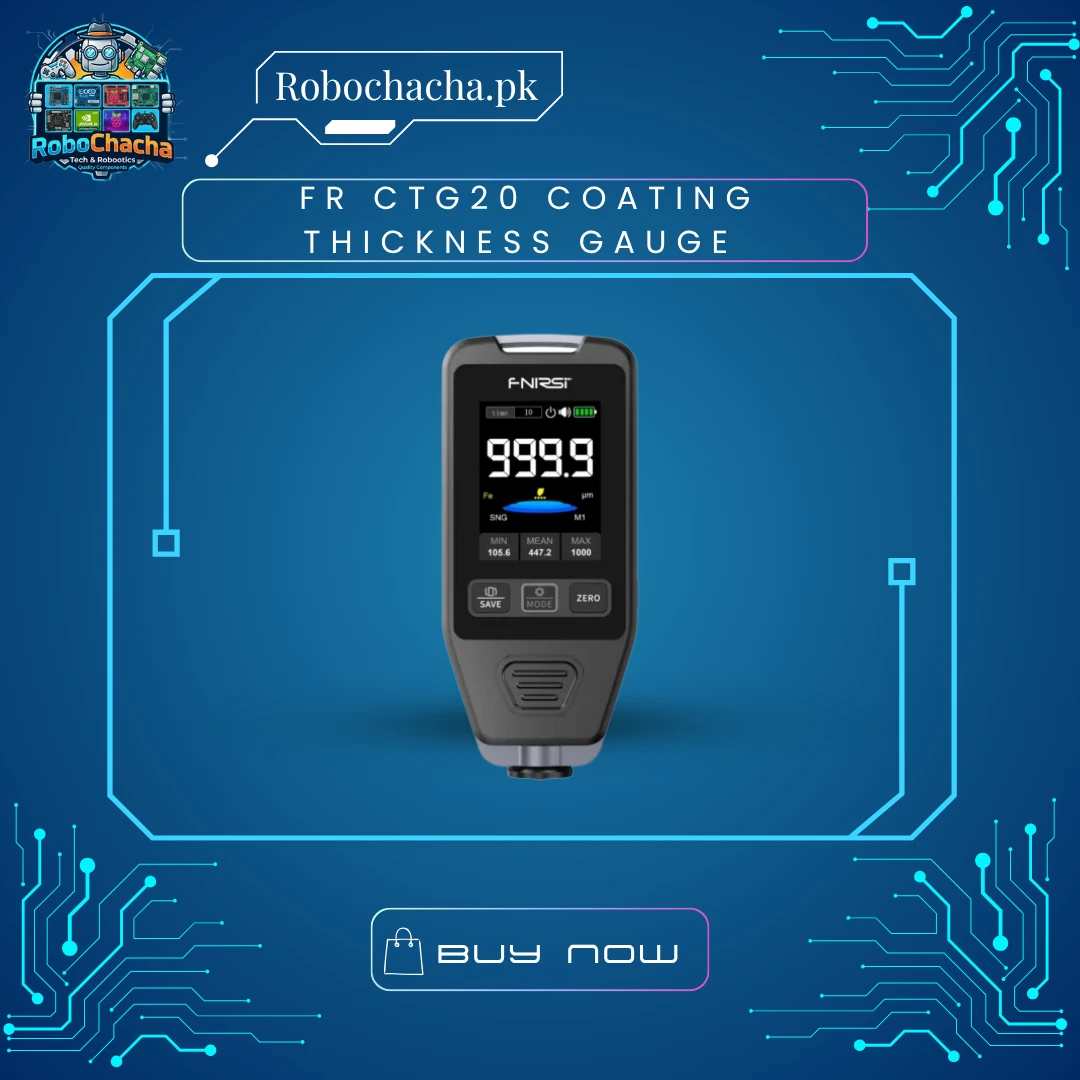

Overview The FR CTG-20 is a high-precision, dual-technology coating thickness gauge. It uses Electromagnetic Induction (for ferrous metals like iron/steel) and Eddy Current (for non-ferrous metals like aluminium/copper) to measure the thickness of non-conductive coatings such as paint, enamel, or plastic on metal surfaces. Its fast response and high accuracy make it ideal for automotive inspection and industrial applications.
Key Features
Automatic Substrate Detection: Identifies Fe (iron/steel) and NFe (aluminium/copper) automatically.
Three Measurement Modes: Single, Continuous, and Difference measurement modes.
High Resolution: Measures in μm, mm, and mil with precise accuracy for thin coatings.
Calibration Support: Zero and multi-point calibration with included foils.
Backlit LCD: Clear display with 180° rotation for easy viewing.
Technical Specifications
Feature
Specification
Measurement Range
0 – 1500 μm (0 – 59.1 mil)
Accuracy
±(3% + 1 μm)
Minimum Resolution
0.1 μm
Substrates
Ferrous (Iron/Steel) & Non-Ferrous (Al/Cu)
Units
μm, mm, mil
Minimum Curvature
Convex: 5 mm / Concave: 25 mm
Power Supply
2 × 1.5V AAA Batteries
Weight
2000 g
Dimensions
15 × 10 × 5 cm
