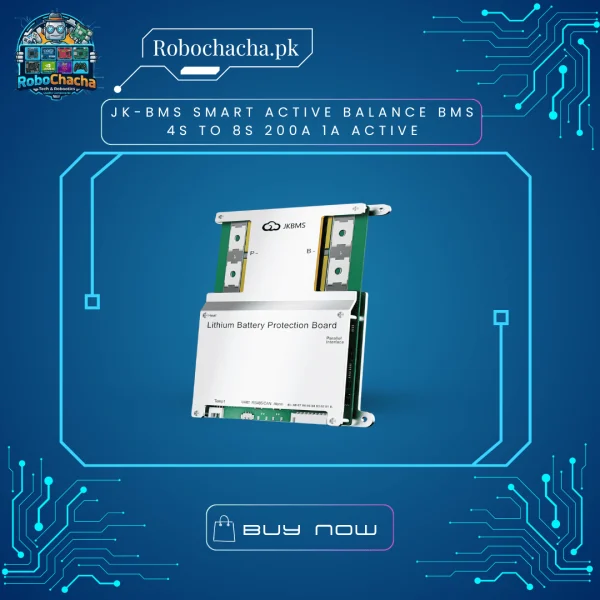

JK-BMS Smart Active Balance BMS 4S to 8S 200A 1A Active Equalization – Bluetooth Lithium Battery Management System in Pakistan

Overview

When constructing high-capacity energy storage systems, off-grid solar power banks, or heavy-duty electric vehicle batteries using LiFePO4, Li-ion, or LTO cells, traditional passive balancing boards struggle to keep large cells uniform over long charge cycles. Voltage drift between high-capacity cells can severely limit total pack performance and lifespan. The JK-BMS Smart Active BMS 4S-8S 200A with 1A Active Equalization provides an advanced intelligent management solution, ensuring continuous active energy transfer between cells to keep your battery bank perfectly balanced and fully protected under heavy loads.

Key Features

• Flexible 4S to 8S Compatibility: Easily configurable to manage 4-series up to 8-series ($4S – 8S$) multi-chemistry battery packs.

• High-Current 200A Continuous Rating: Engineered to handle massive continuous power outputs for heavy-duty inverters, winches, and high-amp motor controllers.

• Powerful 1A Active Balance Equalization: Unlike traditional passive bleed resistors, active balancing shifts real energy from high cells to low cells, maintaining tight voltage equilibrium even during heavy cycling.

• Smart Bluetooth App Monitoring: Built-in Bluetooth connectivity allows real-time cell voltage, temperature, state of charge (SoC), and diagnostic monitoring directly on your smartphone.

• Comprehensive Multi-Layer Protection: Built-in safeguards protect against overcharge, deep discharge, short circuits, and extreme operational temperatures.

Technical Specifications

Common Applications

• Solar & Off-Grid Home Backup: Essential smart protection and balancing for large 12V or 24V lithium home energy storage configurations.

• Marine & RV Power Systems: Reliable high-amp power regulation for auxiliary battery banks powering appliances, refrigerators, and inverters.

Note to customers: Connect all balance wires securely in exact sequence before powering up or plugging the harness into the JK-BMS unit to ensure flawless operation!
