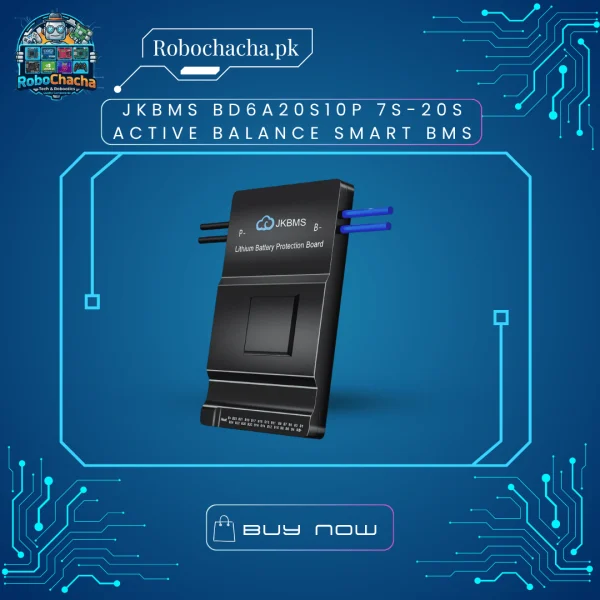

JKBMS BD6A20S10P 7S-20S Active Balance Smart BMS – 100A Lithium Battery Management System in Pakistan

Overview

When building high-capacity multi-series lithium battery banks for electric vehicles, off-grid solar energy storage, or heavy-duty power stations, maintaining precise cell voltage synchronization is critical. Over time, passive balancing struggles to keep up with large cell capacities, leading to reduced pack longevity and uneven charge distribution. The JKBMS BD6A20S10P 7S-20S Active Balance Smart BMS provides an advanced, high-performance battery management solution, offering active energy transfer balancing and comprehensive smartphone app monitoring to ensure maximum safety, efficiency, and lifespan for your custom lithium packs.

Key Features

• Wide Series Compatibility: Configurable to support flexible battery pack configurations ranging from 7 series up to 20 series ($7S$ to $20S$).

• Active Energy Transfer Balancing: Unlike traditional passive bleed balancers, active balancing redistributes energy between high and low cells to maintain uniform voltage with minimal heat loss.

• Smart Bluetooth App Integration: Easily monitor real-time cell voltages, temperatures, state of charge, and protection parameters directly via a mobile smartphone application.

• Comprehensive Multi-Layer Protection: Built-in safeguards protect against overcharge, over-discharge, over-current, and short-circuit conditions.

Technical Specifications

Common Applications

• Solar & Off-Grid Energy Storage: Essential management board for custom 24V, 36V, or 48V home backup and renewable energy battery banks.

• Electric Mobility & DIY Vehicles: Reliable high-current protection and balancing for e-bikes, scooters, and light electric vehicle battery packs.

Note to customers: Ensure accurate wiring harness sequence connection and app configuration parameters before applying full load to your battery pack!
