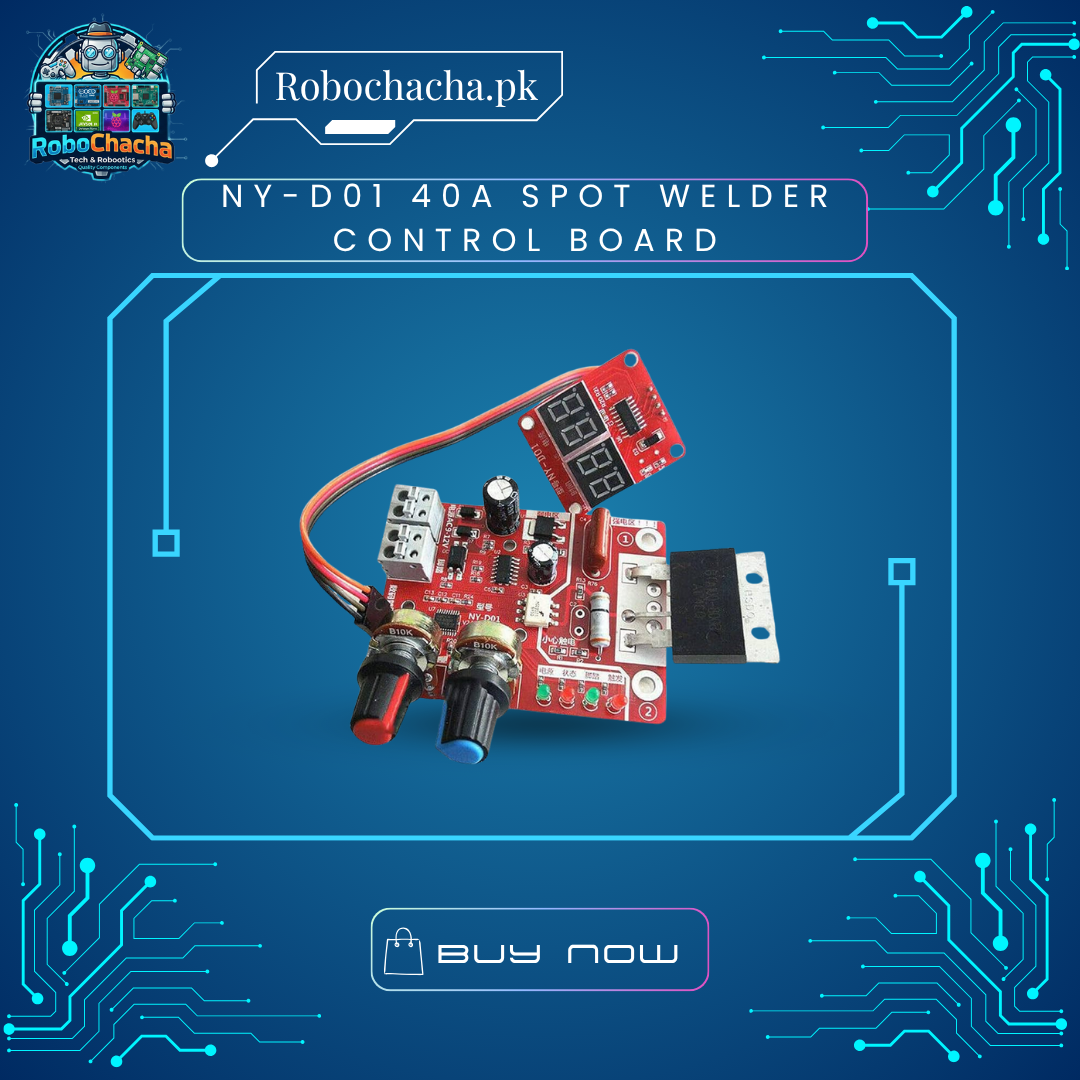

NY-D01 40A Spot Welder Control Board – Digital Time & Current Controller Module for 18650 DIY Battery Welding

Overview

The NY-D01 40A Spot Welder Control Board serves as the digital brain for custom-built resistance spot welders. By regulating a reliable 40A Silicon Controlled Rectifier (SCR), this module gives you granular control over the welding duration (cycles) and weld current (power percentage) via a clear, dual-digit red LED interface. It handles standard 0.1mm to 0.15mm nickel-plated strips with ease, making it an essential component for assembling e-bike batteries, power banks, and laptop pack rebuilds without breaking the bank.

Key Features

• Dual Digital LED Displays: Bright, independent readouts for quick configuration of weld time (1–50 cycles) and pulse current (30%–99%).

• Hobbyist-Optimized 40A SCR: Perfectly balanced for home workshop electrical lines, preventing frequent breaker tripping during high-current pulses.

• Safe Optocoupler Isolation: Keeps the dangerous high-voltage AC mains completely separate from the low-voltage digital control side for ultimate user safety.

• Zero-Crossing Detection Circuit: Ensures smooth SCR switching synchronized with the AC sine wave, minimizing transformer chatter and electrical noise.

• Simple Dial Adjustments: Two rugged onboard potentiometers allow instant adjustments on the fly without navigating frustrating menus.

Technical Specifications

Critical Operation Rules

1. AC Power Requirement: This board relies on AC sine waves for its timing logic. You must power the board controller with a small 9V or 12V AC output transformer. Connecting a standard DC wall adapter will light up the screen but will prevent the welding pulse from firing.

2. Welding Limits: The 40A version is highly optimized for nickel-plated steel strips up to 0.15mm. If your project demands pure thick copper or 0.2mm+ pure nickel sheets, we highly recommend upgrading to our NY-D01 100A variant.
