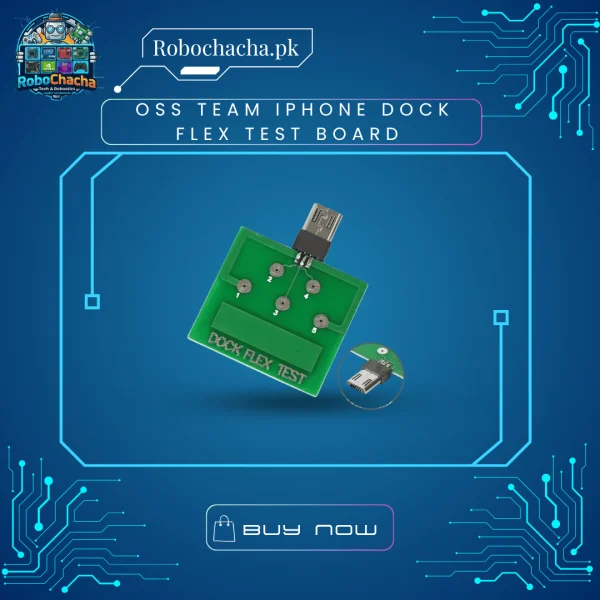

OSS Team iPhone Dock Flex Test Board – Non-Disassembly U2 IC, Battery & Charging Port Diagnostic Tool in Pakistan

Overview

When troubleshooting smartphone charging failures, dead batteries, or suspicious U2 IC behavior on repair benches, completely disassembling the phone just to run preliminary multimeter checks wastes valuable time. Technicians need a fast, non-invasive diagnostic shortcut. The OSS Team iPhone Dock Flex Test Board provides an efficient testing solution, engineered to plug directly into the mobile phone’s tail port to evaluate charging line performance, battery status, and IC health without removing components.

Key Features

• Disassembly-Free Testing: Plugs directly into the external charging port so technicians can diagnose issues instantly without opening the device.

• Multifunctional Diagnostic Range: Accurately tests U2 IC performance, battery line status, and USB charging path integrity.

• Clearly Labeled Pin Breakdown: Features distinct test pads (A1 through A12) mapped to essential power, data, and control lines for precise multimeter probing.

• Compact PCB Build: Durable, lightweight gold-plated circuit board design designed for heavy everyday use on mobile repair benches.

Technical Specifications

Common Applications

• Phone Repair Benches: Quickly determines whether a charging failure stems from a bad battery, damaged tail plug, or a blown U2 charging IC.

• Pre-Repair Intake Checks: Evaluates incoming customer devices instantly to scope repair estimates without breaking housing seals.

Note to customers: For best results, use a digital multimeter in diode mode to compare values against a known good working phone model!
