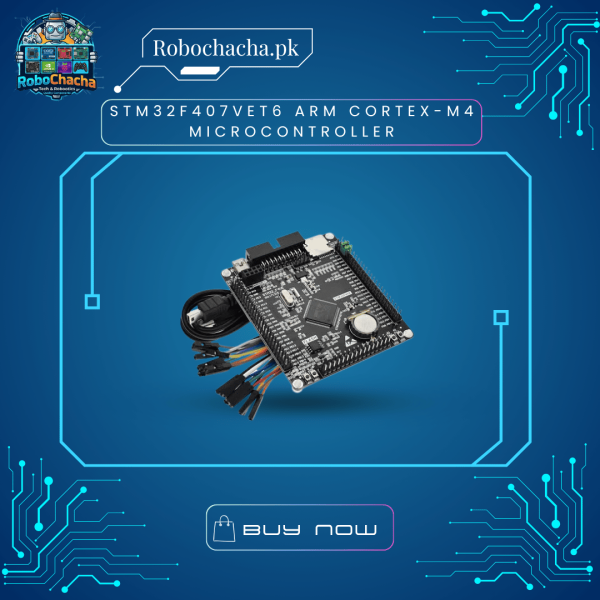

STM32F407VET6 ARM Cortex-M4 Microcontroller – 168MHz, 512KB Flash, 192KB RAM LQFP-100

Overview

The STM32F407VET6 belongs to STMicroelectronics’ high-performance STM32F4 family, powered by the ARM® Cortex®-M4 32-bit RISC core with a hardware Floating Point Unit (FPU). Operating at frequencies up to 168 MHz, it provides DSP instructions and a memory protection unit (MPU), making it a favorite for drone flight controllers, real-time industrial automation, and custom robotics boards.

Key Features

• High-Performance Core: ARM® Cortex®-M4 with FPU operating at up to 168 MHz (210 DMIPS / 1.25 DMIPS/MHz).

• Memory Architecture: Features 512 Kbytes of Flash memory and 192 Kbytes of SRAM (including 64 KB of CCM Core-Coupled Memory for critical real-time tasks).

• Advanced Connectivity: Includes USB 2.0 OTG FS/HS, 10/100 Ethernet MAC, SPI, I2C, USART, CAN buses, and a camera interface (DVP).

• Precision Analog Capabilities: Equipped with two 12-bit DACs, three 12-bit ADCs (up to 2.4 MSPS), and numerous advanced timers geared toward motor control.

• LQFP-100 Package: Provides an optimal balance of pin count and compact surface-mount footprint for multi-layer PCB designs.

Technical Specifications
