Overview

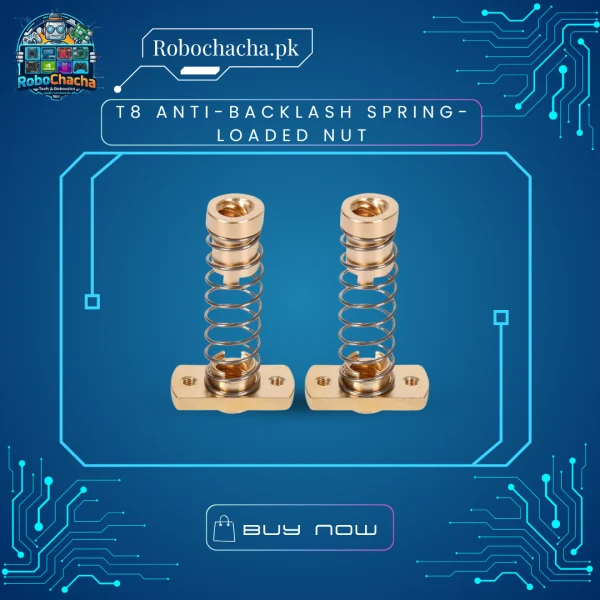

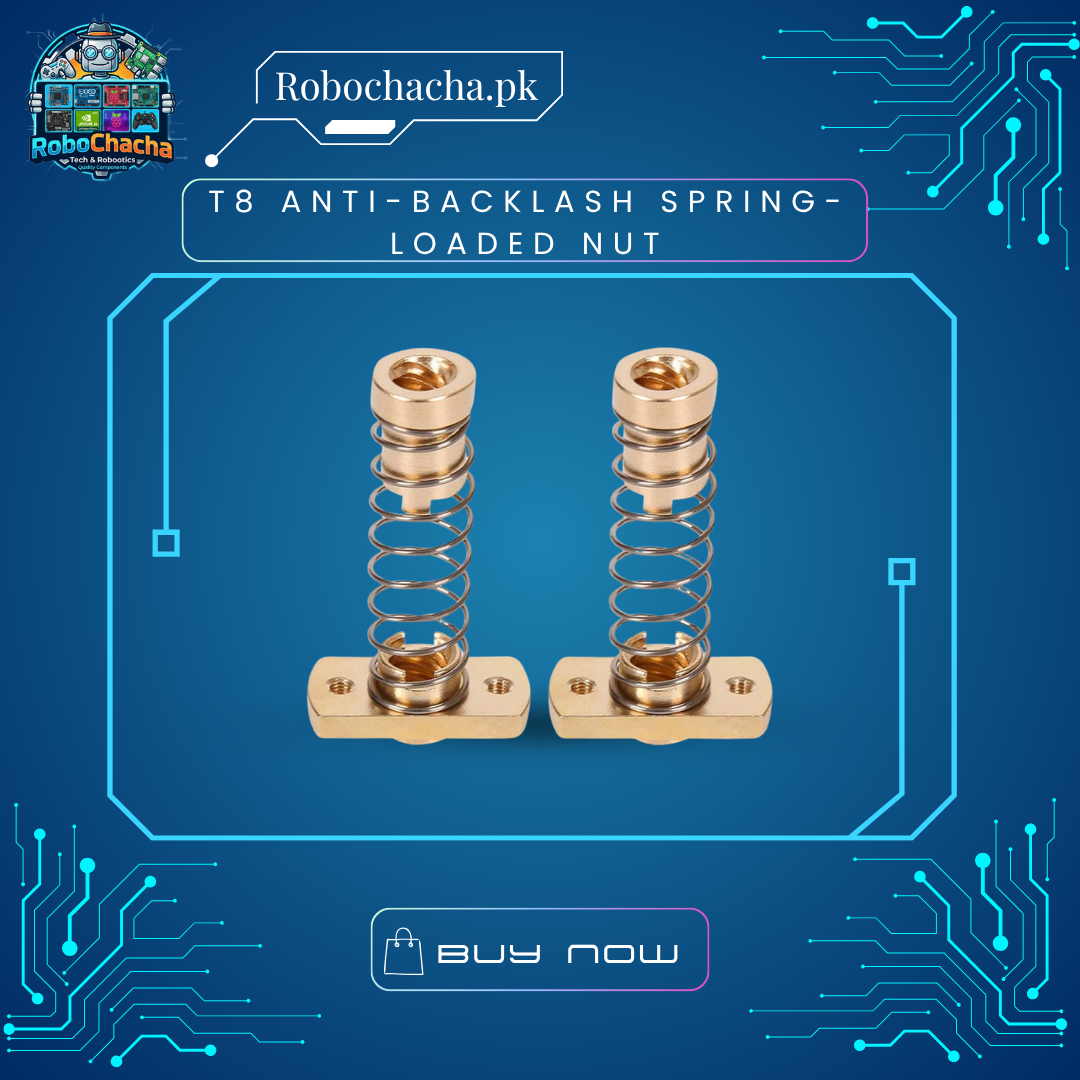

The T8 Anti-Backlash Spring-Loaded Nut Assembly is a high-precision positioning component designed to eliminate mechanical backlash on standard 8mm diameter lead screws. In stock 3D printer setups, the weight of the X-gantry can disguise minor thread wear. However, during fine micro-movements, high-speed retractions, or light CNC milling where forces push upward on the tool head, standard nuts suffer from thread slop.
This smart upgrade uses a dynamic, spring-loaded dual-nut configuration that stays under constant tension, making your layers more consistent and improving the positional accuracy of your machine down to the sub-millimeter level.
Key Features
True Zero-Backlash: The heavy-duty compression spring actively pushes the secondary nut away from the primary flange, maintaining zero thread clearance even as the brass naturally wears down over time.
Premium Machined Brass: Fabricated from low-friction, wear-resistant industrial brass that runs smoothly along steel lead screws without scoring the metal.
Drop-In Layout: Features a standard 4-hole mounting flange that perfectly matches standard Creality Ender 3, CR-10, and universal open-source 3D printer gantry brackets.
Pre-Loaded Assembly: Ships as a complete 3-piece kit (Main Flange Nut, Compression Spring, and Secondary Tension Nut) ready for installation.
Technical Specifications
| Feature | Specification |
| Lead Screw Compatibility | T8 Lead Screw ($8\text{mm}$ Outside Diameter) |
| Lead (Pitch Distance) | 8mm Lead (Most Common standard 4-start screw) / 2mm Pitch |
| Material | Solid Brass Body + Stainless Steel Spring |
| Mounting Hole Diameter | 3.5mm (For M3 screws) |
| Flange Outer Diameter | 22mm |
Installation & Maintenance Tips
Thread Assembly: Thread the main flange nut onto the T8 lead screw first. Slide the spring on, then compress the spring manually using the smaller secondary nut before threading it onto the screw.
Orientation: The spring assembly should ideally face downwards or inwards toward the carriage frame depending on your machine’s clearance layout.
Lubrication: Do not run these bone-dry. Apply a thin coating of high-quality Lithium Grease or PTFE-infused dry lubricant across the lead screw threads to prevent premature brass friction wear.
