Overview

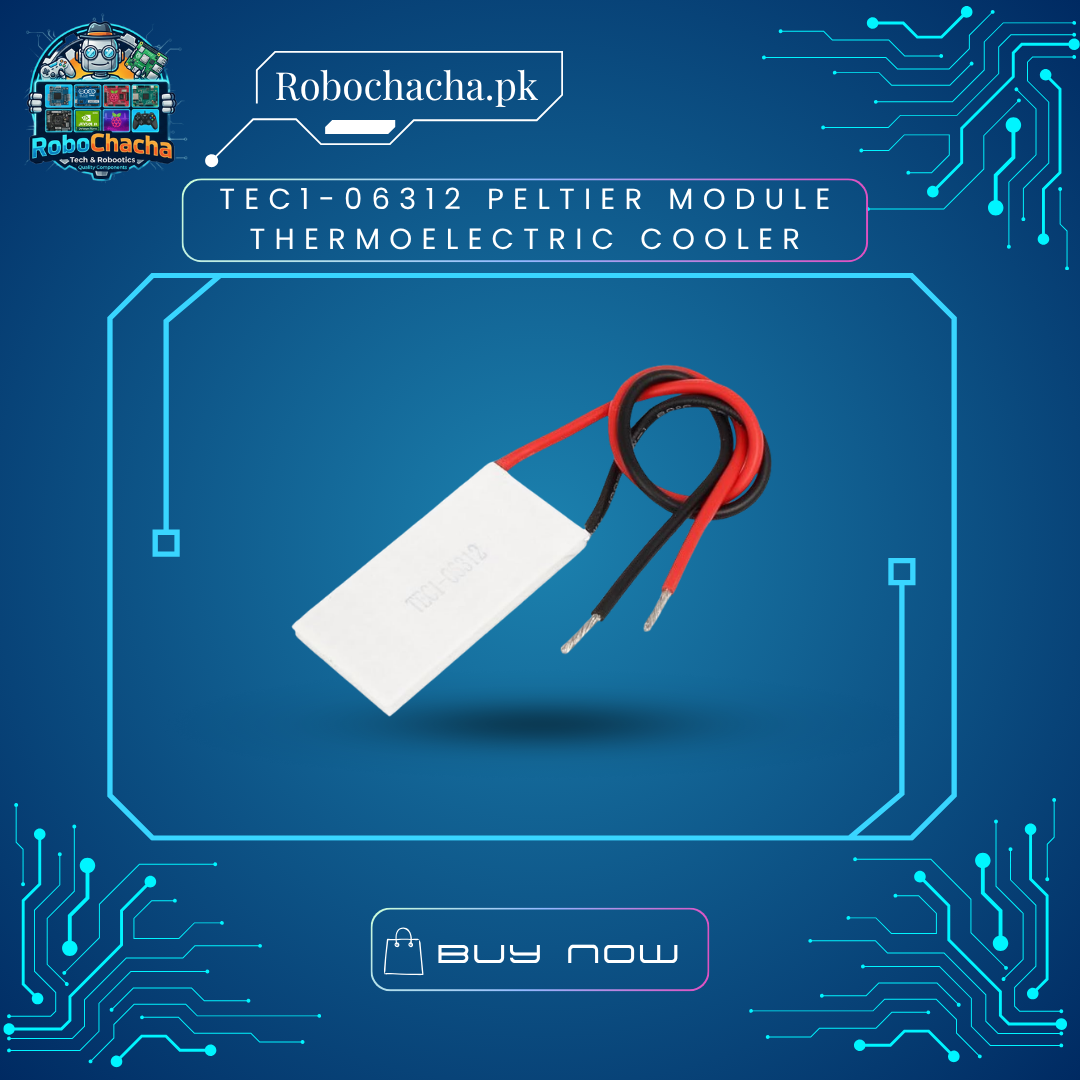

The TEC1-06312 is an advanced Thermoelectric Cooler (TEC) engineered for projects that demand high heat-pumping capacity within a small area. With a 12A rating, this module can create a significant temperature differential ($Delta T$) almost instantly. It is commonly used in high-end DIY projects where standard 12706 Peltiers are too large, but high cooling wattage is still required.
Key Features
Extreme Power Density: Rated for 12A, providing more cooling “punch” per square millimeter than standard modules.
Compact 30mm Profile: Perfectly sized for cooling small electronic components, camera sensors, and laser diodes.
Instant Cooling/Heating: Solid-state technology allows for rapid temperature changes simply by reversing the DC polarity.
Quiet & Vibration-Free: No moving parts make it ideal for sensitive laboratory or audio equipment.
Technical Specifications
| Feature | Specification |
| Model | TEC1-06312 |
| Dimensions | 30mm x 30mm x 3.4mm |
| Max Current (I_max) | 12 Amperes |
| Max Voltage (V_max) | ~8.4V (Typical for 63-couple series) |
| Max Cooling Power (Q_c) | ~60W – 70W |
| Temperature Difference | Up to 65 C (Delta T_max) |
| Internal Resistance | 0.5 ~ 0.7 Ξ© |
Installation Checklist
Massive Heat Dissipation: Because this is a 12A module, the “Hot Side” will generate intense heat very quickly. A high-performance aluminum or copper heatsink with a high-RPM fan is mandatory.
Power Supply: Ensure your power source can handle 12A. Using a weak power supply will result in poor cooling performance or voltage drops.
