Overview

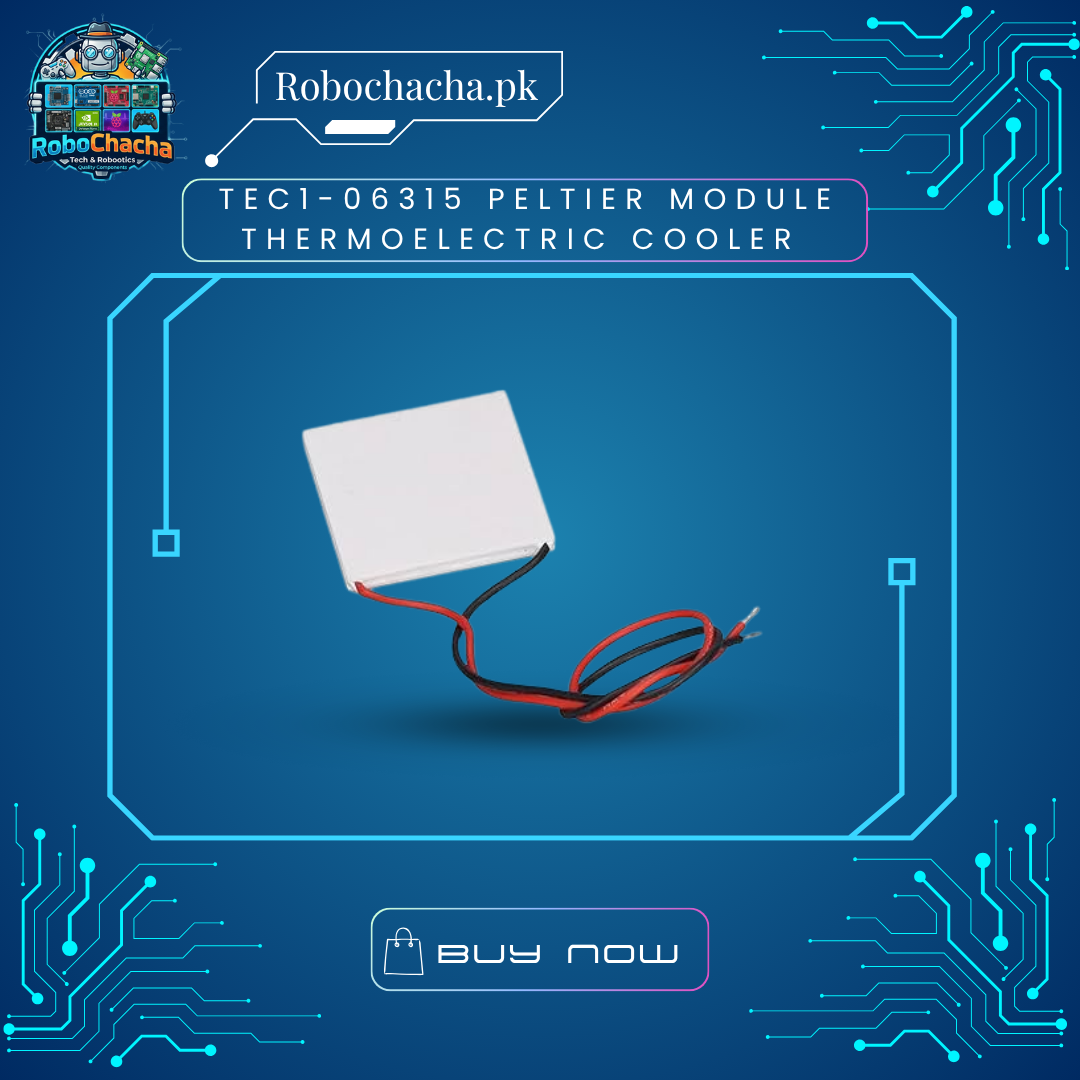

The TEC1-06315 is a premium Thermoelectric Cooler (TEC) that represents the peak of power density for 30x30mm modules. With a maximum current rating of 15 Amperes, it is engineered to provide massive heat pumping (Q_c) for demanding applications. Whether you are cooling a high-frequency processor, a specialized medical sensor, or building a high-performance portable chiller, this module delivers industrial-grade cooling in a miniature footprint.
Key Features
Industrial Grade 15A Power: Capable of handling significantly higher current than standard hobbyist modules for faster cooling cycles.
Concentrated Cooling: Moves heat efficiently from a small 900 mm^2 area, ideal for localized hotspots.
Precision Control: Compatible with PWM controllers for exact temperature maintenance within 0.1 C.
Robust Construction: Features high-quality ceramic plates and internal semiconductor couples for long-term durability under high-load conditions.
Technical Specifications
| Feature | Specification |
| Model | TEC1-06315 |
| Dimensions | 30mm x 30mm x 3.3mm |
| Max Current (I_max) | 15 Amperes |
| Max Voltage (V_max) | ~8.4V DC |
| Max Cooling Power (Q_c) | ~80W – 95W |
| Max Temp Difference (Delta T) | geq 65 C |
| Wire Gauge | 18AWG or 20AWG (High-temp leads) |
Setup Requirements
Heavy Duty Power Supply: This module requires a stable power source capable of delivering at least 15A. A standard 2A or 5A adapter will not work.
Pro-Level Heat Dissipation: At 15A, the hot side becomes extremely hot almost instantly. A large-surface-area heatsink with a high-performance fan or even a liquid cooling block is highly recommended.
Insulation: To prevent “thermal feedback” (where heat leaks back to the cold side), ensure you use proper foam insulation around the edges of the module.
