Overview

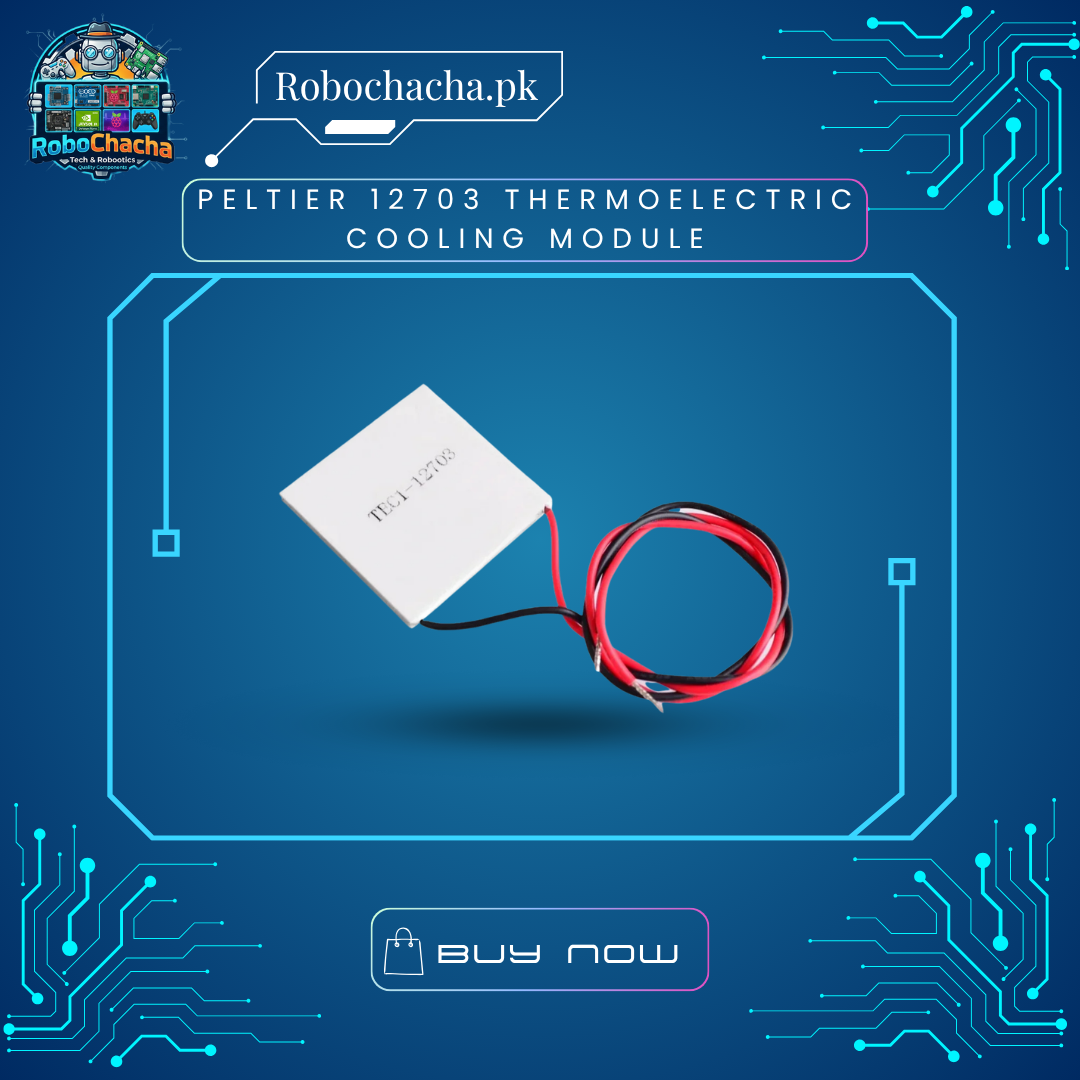

The TEC1-12703 is an ideal solution for applications where power efficiency and heat management are more important than maximum cooling capacity. Because it operates at a lower current (3A), the heat generated on the “hot side” is easier to dissipate using standard aluminum heatsinks. This makes it perfect for cooling delicate components like CCD sensors, laser diodes, or small liquid containers without requiring a massive, power-hungry cooling system.
Key Features
Energy Efficient: Draws only 3 Amperes, making it compatible with smaller power supplies and battery-operated setups.
Easier Thermal Management: The hot side produces less heat compared to high-current models, reducing the risk of thermal runaway.
Precision Cooling: Excellent for stabilizing temperatures in scientific experiments or medical devices.
Quiet & Solid State: No moving parts or refrigerants; provides silent, eco-friendly cooling.
Standard Dimensions: Features the universal 40x40mm size, allowing it to fit standard Peltier mounting brackets.
Technical Specifications
| Feature | Specification |
| Model | TEC1-12703 |
| Operating Voltage | 12V DC (Vmax: 15.5V) |
| Max Current (Imax) | 3.0 Amperes |
| Cooling Power (Qcmax) | ~28 – 33 Watts |
| Temperature Diff (Tmax) | ~65°C |
| Internal Resistance | 3.5 – 4.2 Ω |
| Dimensions | 40mm x 40mm x 3.8mm |
| Operating Temp | -55°C to +80°C |
Best Used For:
Small Enclosure Cooling: Keeping sensors or small electronics at a stable temperature.
Scientific Projects: Precise temperature control for chemical reactions or biological samples.
Small Wine Coolers: Replacing modules in smaller specialized refrigerators.
Portable Drink Chillers: Building USB or battery-powered cup coolers.
