Overview

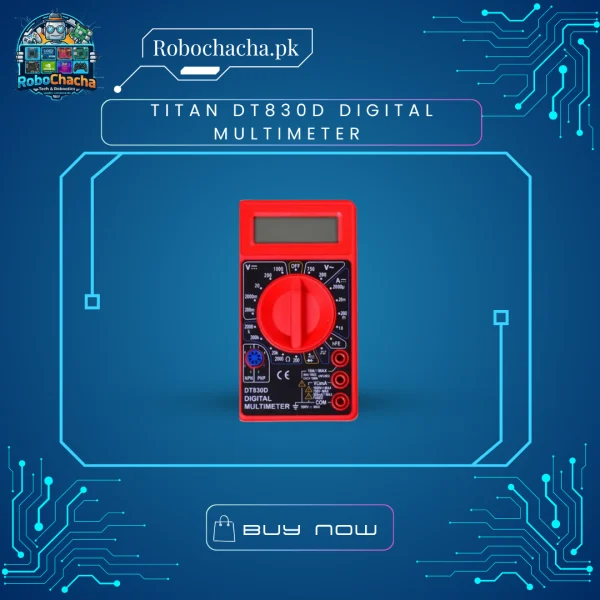

The TITAN DT830D is a compact, 3.5-digit digital multimeter designed for measuring DC and AC voltage, DC current, resistance, and testing diodes/transistors. Unlike the entry-level 830B models, the 830D version includes an audible continuity buzzer, making it ten times easier to check for broken wires or short circuits without having to look at the screen. It’s an essential part of any toolkit for school projects, home repairs, and robotics.
Key Features
8-Function Versatility: Measures Voltage, Current, Resistance, Diode, Transistor (hFE), and Continuity.
Audible Continuity Buzzer: Instantly detect shorts and open circuits with a loud beep—no more squinting at the display!
Overload Protection: Designed with safety in mind to protect the meter from accidental surges (within rated limits).
Portable & Durable: Rugged pocket-sized design with a clear LCD display that’s easy to read.
Complete Kit: Includes high-quality test leads (probes) and a pre-installed 9V battery so you can start testing immediately.
Technical Specifications
| Measurement | Range | Accuracy |
| DC Voltage | 200mV / 2000mV / 20V / 200V / 1000V | ±0.5% |
| AC Voltage | 200V / 750V | ±1.2% |
| DC Current | 2000uA / 20mA / 200mA / 10A | ±1.0% |
| Resistance | 200Ω / 2000Ω / 20kΩ / 200kΩ / 2000kΩ | ±0.8% |
| Continuity | Built-in Buzzer (< 50Ω) | Yes |
| Transistor | hFE Test (NPN/PNP) | Yes |
| Diode Test | Displays Forward Voltage | Yes |
Why Choose the DT830D over the DT830B?
The “D” model is specifically upgraded for troubleshooters. The Continuity Buzzer is the most-used feature for robotics—it allows you to trace PCB paths and check solder joints by ear, allowing you to keep your eyes on your probes and your project.
