Overview

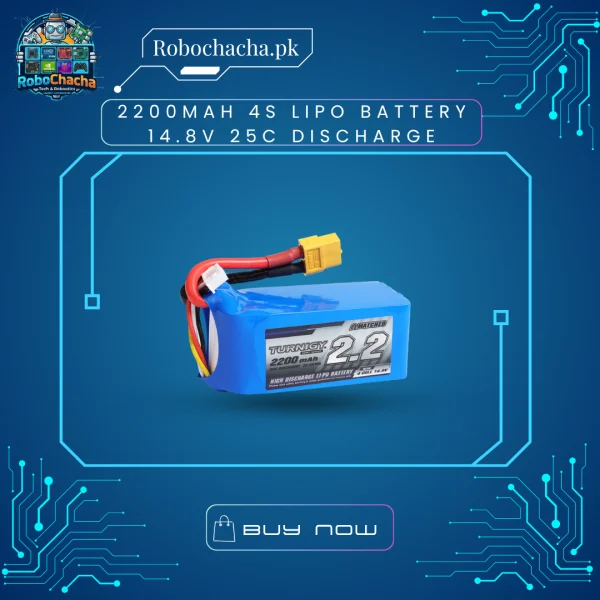

The 4S 2200mAh 25C LiPo Battery is designed for applications that demand high voltage and consistent current delivery. The 14.8V (4-cell) configuration is the gold standard for medium-sized UAVs and advanced robotics projects, where 12V systems often fall short. Whether you are powering a multi-axis robotic manipulator or a high-speed racing drone, the 25C discharge rating ensures that your electronics receive a steady flow of power even under peak loads.
Key Features
4-Cell (4S) Voltage: 14.8V nominal power to drive high-performance brushless motors and high-torque actuators.
High Discharge Rate: 25C continuous discharge allows for a maximum steady output of 55 Amps.
Excellent Capacity: 2200mAh provides a great balance between weight and run-time.
Standard Connectors: Usually comes with an XT60 main connector and a JST-XH balance lead for easy charging and compatibility.
Technical Specifications
| Feature | Specification |
| Chemistry | Lithium Polymer (LiPo) |
| Configuration | 4S1P / 4 Cells / 14.8V |
| Capacity | 2200 mAh |
| Discharge Rate | 25C (Continuous) / 50C (Burst) |
| Max Charge Rate | 1C – 2C (Recommended) |
| Main Connector | XT60 (Standard) |
| Balance Connector | JST-XH |
| Dimensions | Approx. 105mm x 34mm x 32mm |
| Weight | ~200g – 230g |
Why upgrade to 4S?
More Torque: Higher voltage allows motors to generate more torque without drawing excessive current.
Efficiency: Systems often run cooler at 4S compared to 3S when performing the same work.
Professional Grade: Most advanced flight controllers and motor drivers are optimized for 4S input.
