Overview

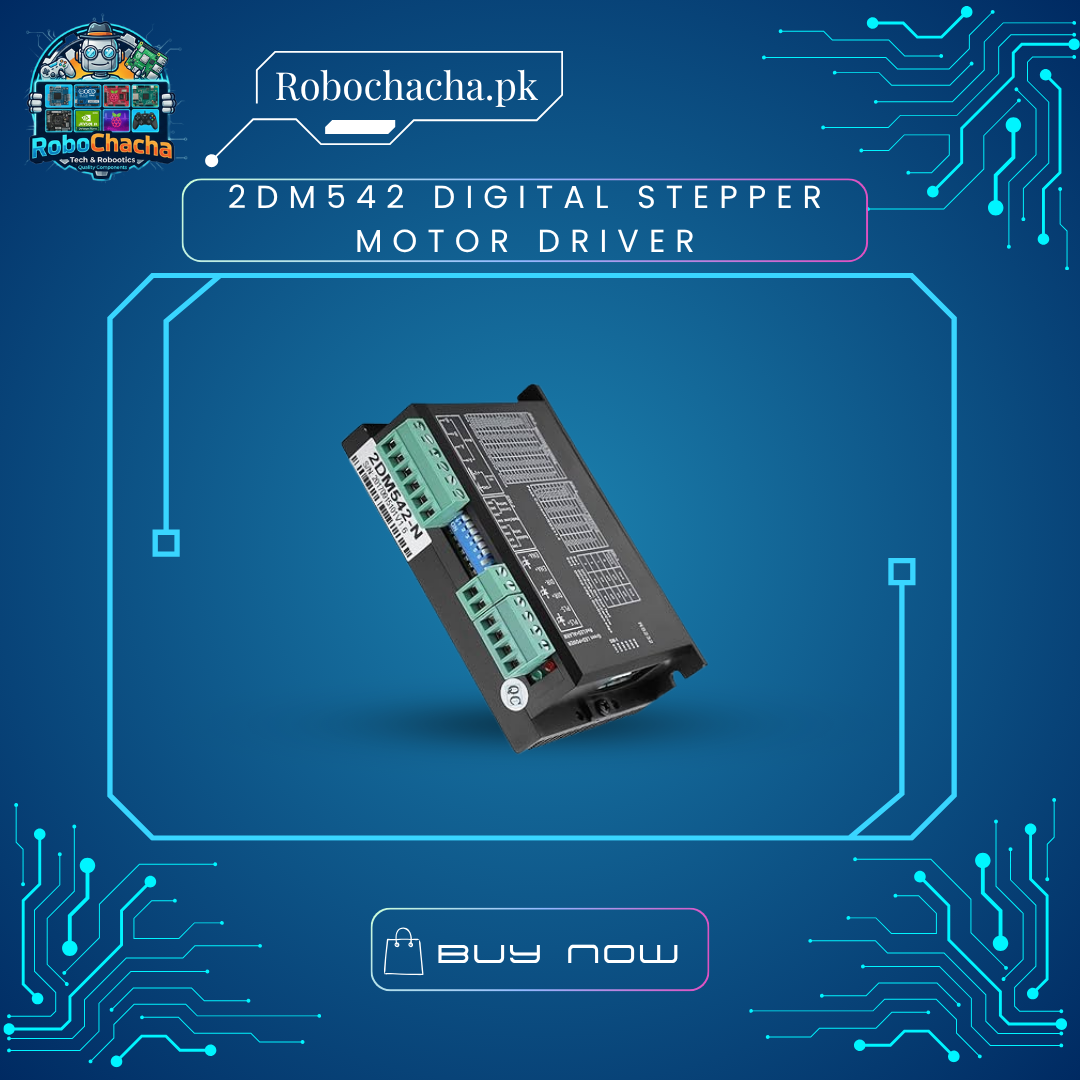

The 2DM542 is a fully digital stepper driver developed with an advanced DSP control algorithm based on modern motion control technology. It allows for a high level of system smoothness, providing optimal torque throughout the motor’s speed range while significantly lowering running noise. It features auto-configuration technology, meaning it automatically measures the motor’s electrical characteristics upon power-up to optimize current loops and minimize heating.
Key Features
32-Bit DSP Architecture: Delivers high-precision, low-noise performance with advanced anti-resonance filtering.
Auto-Tuning Parameter Technology: Automatically configures optimal control parameters for your specific connected motor.
Ultra-Low Noise & Vibration: Greatly reduces the low-speed resonance zone where stepper motors typically stall or stutter.
Variable Microstepping: Offers up to 15 different microstep resolutions up to 25,600 steps/rev via accessible dip switches.
Comprehensive Protection: Built-in safeguards against over-voltage, under-voltage, over-current, and phase short-circuits.
Technical Specifications ⚙️
| Feature | Specification |
| Input Voltage Range | 24V to 48V DC (Typical: 36V DC) |
| Output Peak Current | 1.0A to 4.2A (Adjustable via 3-bit DIP) |
| Logic Signal Current | 7mA to 16mA (Standard 5V pulse compatible) |
| Pulse Input Frequency | 0 to 200 kHz |
| Isolation Resistance | Minimum 500 MΩ |
| Cooling Method | Natural cooling or forced air (Built-in heavy-duty aluminum heatsink) |
| Dimensions | 118mm x 75.5mm x 34mm |
DIP Switch Settings Configuration
Current Selection (SW1 – SW3): Controls dynamic output current to match your motor’s rated amperage.
Standstill Current (SW4): Choose between full-current or half-current holding state when the motor stops (Half-current drastically reduces motor heat).
Microstep Resolution (SW5 – SW8): Sets the pulse multiplier ratio (e.g., 400, 800, 1600, up to 25600 steps/rev).
