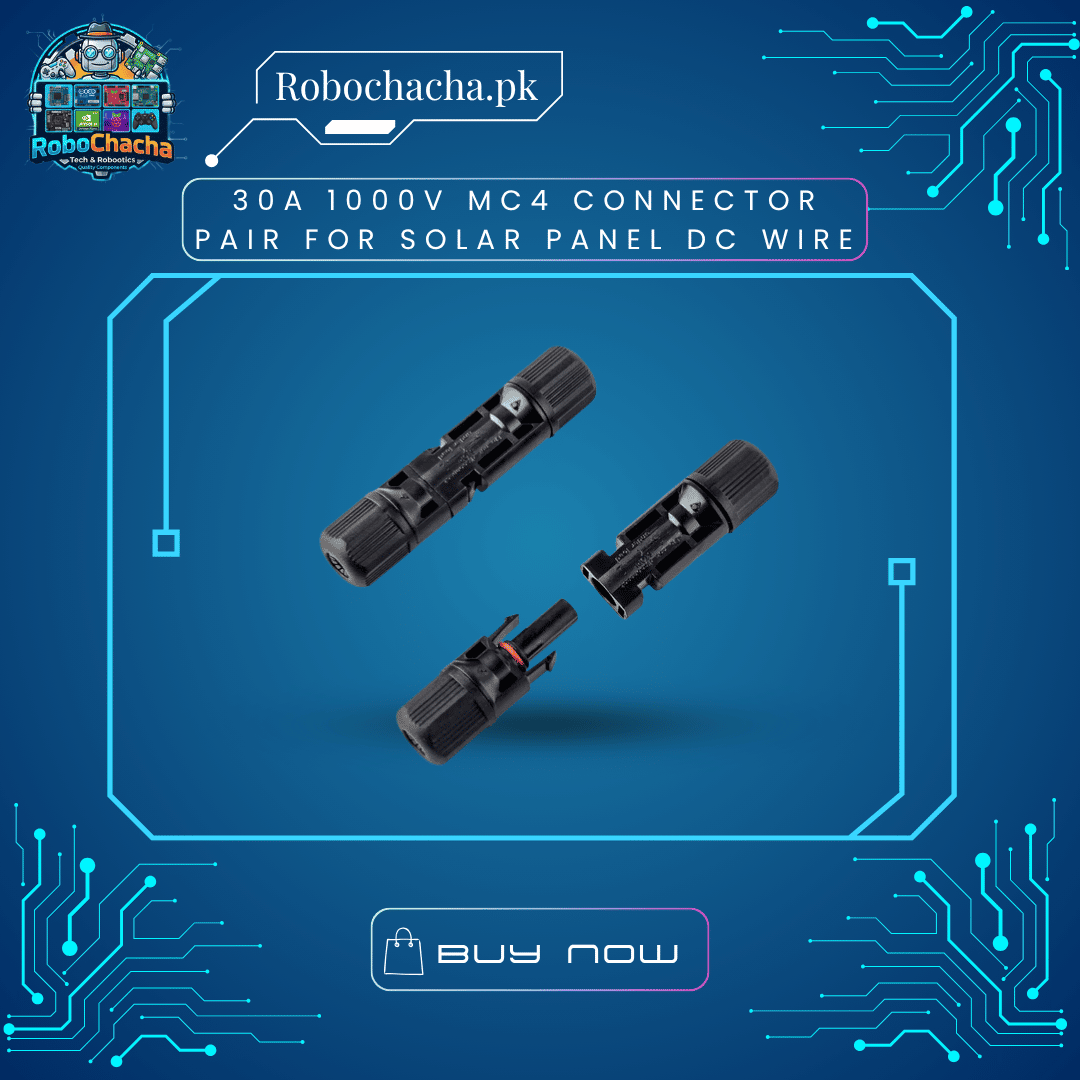

30A 1000V MC4 Connector Pair (Male & Female) for Solar Panel DC Wire – Waterproof IP67

Overview

The 30A 1000V MC4 Connector Set includes one male and one female connector, complete with internal metallic crimp terminals. Designed to handle high currents up to 30 Amperes and system voltages up to 1000V DC, these connectors are essential for connecting solar panels in series or parallel strings. They feature a robust self-locking mechanism that prevents accidental disconnection due to wind or cable strain, alongside an internal O-ring seal that ensures an IP67 waterproof rating.

Key Features

• Heavy-Duty Power Rating: Safely manages up to 30A of continuous DC current and up to 1000V DC insulation voltage.

• IP67 Waterproof & Dustproof: The internal rubber sealing ring tightly grips the cable, making it completely weather-proof for outdoor roofs.

• Stable Self-Locking System: Simple plug-and-play assembly with a secure snap-lock mechanism; easily opened with standard MC4 spanner tools.

• UV & Corrosion Resistant: The outer shell is molded from high-grade PPO material to resist cracking under intense sunlight and extreme temperatures.

• Wide Cable Compatibility: Designed to crimp onto standard solar DC wires ranging from 14 AWG to 10 AWG (2.5 mm^2, 4 mm^2, 6 mm^2).

Technical Specifications

What’s Included in the Pack?

• 1 x Male MC4 Connector Shell

• 1 x Female MC4 Connector Shell

• 2 x Inner Metal Crimp Pins (1 Male, 1 Female)
