Arduino Uno R3 DIP – ATmega328P Development Board (Pakistan)

Product Overview

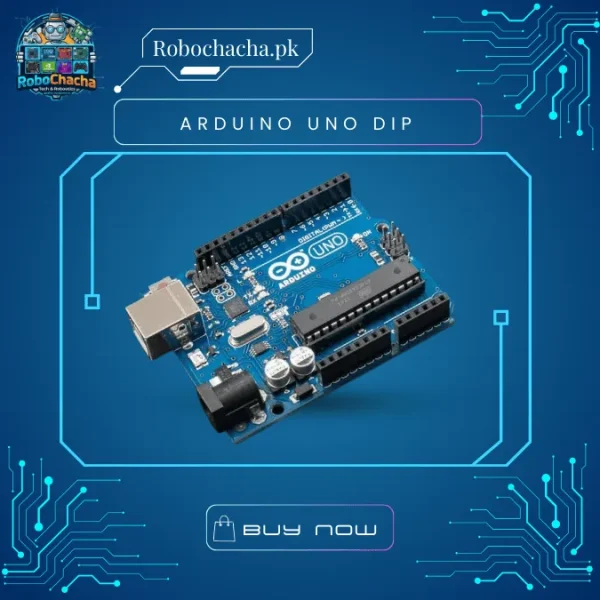

The Arduino Uno R3 DIP is a reliable and beginner-friendly microcontroller development board based on the ATmega328P (DIP package). The removable DIP microcontroller makes it ideal for learning, prototyping, and repair-friendly applications. It is fully compatible with the Arduino IDE and a wide ecosystem of shields, sensors, and modules.

Key Features

• ATmega328P (DIP) microcontroller – removable and replaceable

• 5V logic level, ideal for most sensors and modules

• USB interface for programming and power

• 16 MHz crystal oscillator for stable operation

• Standard Arduino Uno R3 form factor

• ICSP header for direct MCU programming

• Large community support and library availability

• Fully compatible with Arduino IDE (Windows / macOS / Linux)

Technical Specifications

Microcontroller

• MCU: ATmega328P (28-pin DIP)

• Clock Speed: 16 MHz

• Architecture: AVR (8-bit)

Memory

• Flash Memory: 32 KB (0.5 KB used by bootloader)

• SRAM: 2 KB

• EEPROM: 1 KB

Input / Output

• Digital I/O Pins: 14

• PWM Pins: 6 (Pins 3, 5, 6, 9, 10, 11)

• Analog Input Pins: 6 (A0–A5)

• UART: 1 (TX/RX)

• I2C: Yes (SDA/SCL)

• SPI: Yes (via ICSP header)

Electrical Specifications

• Operating Voltage: 5V

• Input Voltage (Recommended): 7–12V

• Input Voltage (Limit): 6–20V

• Max DC Current per I/O Pin: 20 mA (40 mA absolute max)

• Max DC Current for 3.3V Pin: 50 mA

Connectivity & Interface

• USB Port: USB-B (Type-B)

• Power Options:

  • USB

  • DC Barrel Jack

  • VIN Pin

• Reset Button: On-board

• ICSP Header: Yes

Mechanical Details

• Board Type: Arduino Uno R3

• MCU Package: DIP (removable)

• PCB Color: Blue (may vary by batch)

• Headers: Female headers pre-soldered

• Mounting: Standard Arduino mounting holes

Compatibility

• Compatible with most Arduino Uno shields

• Works with Arduino IDE

• Supports common sensors, motor drivers, displays, and communication modules

• Ideal for Arduino Nano/Uno-compatible libraries

Typical Applications

• Embedded systems learning

• Robotics and automation

• Sensor interfacing

• Motor control projects

• IoT prototyping

• Educational labs and workshops

Package Contents

• 1 × Arduino Uno R3 DIP Board
  (USB cable included only if mentioned in the product variant)

Important Notes

• This is a DIP version, microcontroller can be removed or replaced

• Board may be original or compatible clone depending on variant

• Not recommended for high-current loads without external drivers
