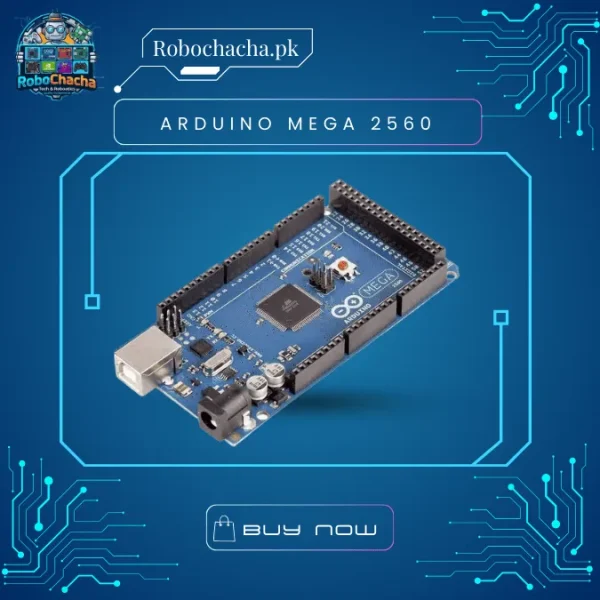

Arduino Mega 2560 | ATmega2560 | Development Board

The Arduino Mega 2560 is a powerful and versatile microcontroller development board based on the ATmega2560. It is specifically designed for large and complex embedded projects that require a high number of digital and analog I/O pins, multiple serial ports, and extensive memory.

With 54 digital I/O pins, 16 analog inputs, and 4 hardware UARTs, the Arduino Mega 2560 is ideal for 3D printers, CNC machines, robotics, industrial control systems, and automation projects. It is fully compatible with the Arduino IDE, making it suitable for both beginners and advanced users.

Key Features

• Based on ATmega2560 AVR microcontroller

• Operating frequency: 16 MHz

• Large number of I/O pins for complex projects

• 4 hardware serial ports (UART)

• USB interface for programming and power

• Compatible with most Arduino shields

• Onboard voltage regulator and reset circuit

• Extensive Arduino library and community support

Detailed Board Specifications

Core & Performance

• Microcontroller: ATmega2560

• Architecture: 8-bit AVR

• Clock Speed: 16 MHz

Memory

• Flash Memory: 256 KB (8 KB used by bootloader)

• SRAM: 8 KB

• EEPROM: 4 KB

Power

• Operating Voltage: 5 V

• Input Voltage (recommended): 7 – 12 V

• Input Voltage (limits): 6 – 20 V

• Power via USB or DC barrel jack

I/O & Peripherals

• Digital I/O Pins: 54 (15 PWM outputs)

• Analog Input Pins: 16

• UART: 4 (Serial0, Serial1, Serial2, Serial3)

• SPI: Yes

• I²C (TWI): Yes

• External Interrupts: 6

Programming & Connectivity

• Programming Interface: USB (USB-to-Serial)

• USB Controller: ATmega16U2

• Supported IDE: Arduino IDE

Physical

• Board Type: Development Board

• Form Factor: Mega

• USB Connector: Type-B USB

• DC Jack: 2.1 mm center-positive

• Pin Spacing: 2.54 mm

• Shield Compatible: Yes

Typical Applications & Uses

• 3D printers and CNC controllers

• Robotics and automation systems

• Industrial control projects

• Home automation systems

• Data acquisition and logging

• Embedded system learning and prototyping

• Projects requiring multiple sensors and actuators

Why Choose Arduino Mega 2560?

• Large number of I/O pins for advanced projects

• Multiple hardware serial ports

• Stable and beginner-friendly Arduino ecosystem

• Wide compatibility with Arduino shields

• Ideal for complex and large-scale applications

Package Includes

• 1 × Arduino Mega 2560 Development Board
