Overview

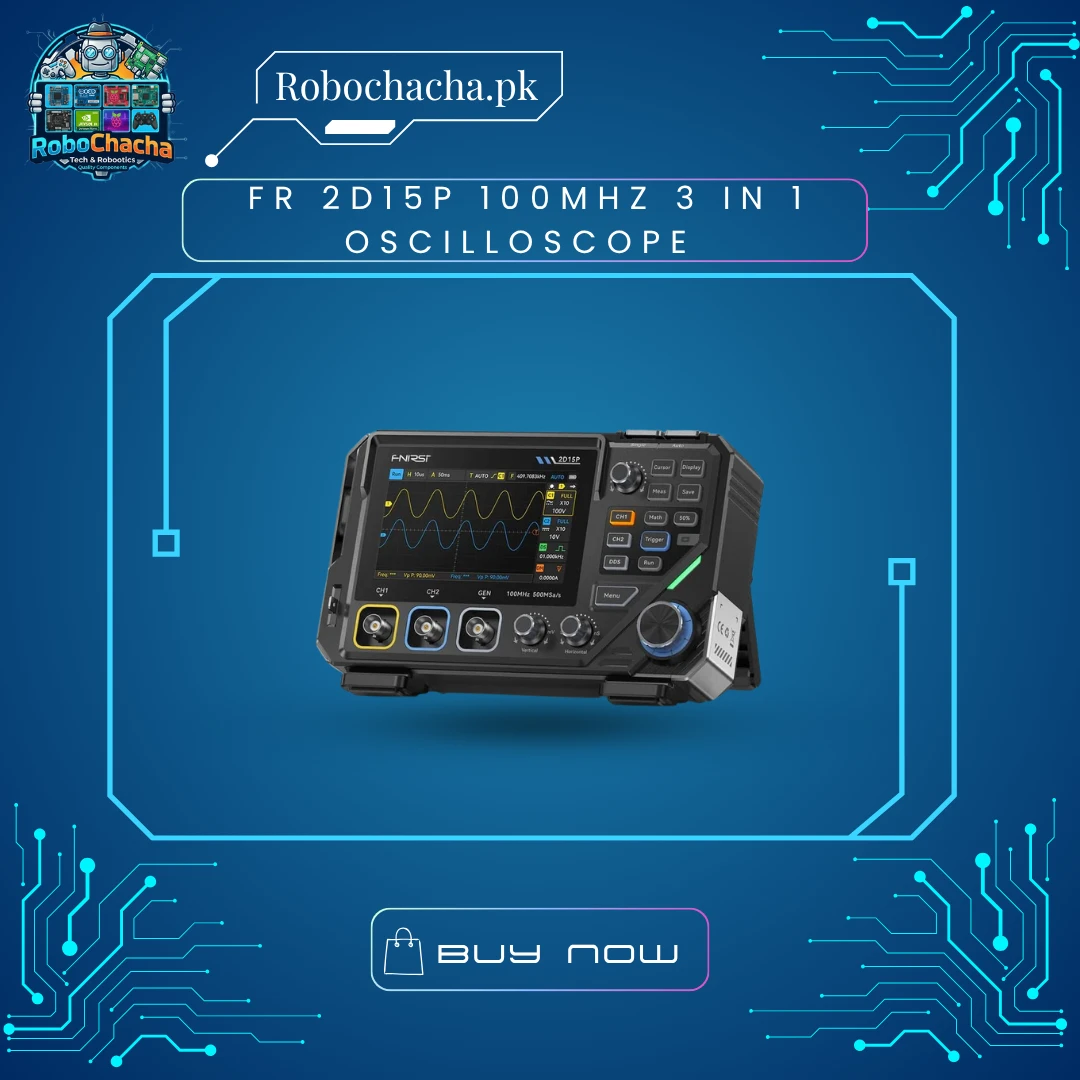

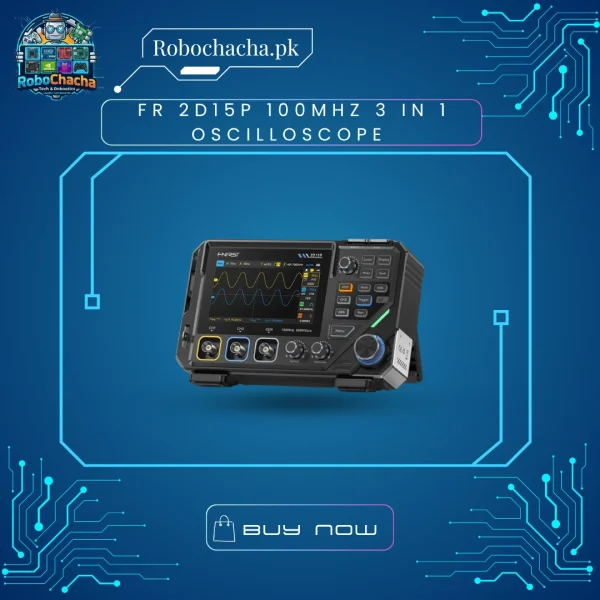

The FR 2D15P is a professional-tier laboratory instrument designed for high-speed signal analysis. With a 100MHz Bandwidth and a 1GSa/s (1 Billion samples per second) sampling rate, it can capture fast-moving transients that smaller scopes miss. This 3-in-1 machine replaces three expensive benchtop units: a Dual-Channel Oscilloscope, a 25MHz Arbitrary Waveform Generator, and a 16-channel Logic Analyzer. It is the ultimate tool for debugging high-speed microcontrollers (ESP32/STM32), repairing switching power supplies (SMPS), and analyzing communication protocols.
Three Tools in One Chassis
Dual-Channel DSO: 100MHz bandwidth allows you to see high-frequency signals with perfect clarity. Dual channels let you compare input vs. output signals.
AWG Signal Generator: Built-in 25MHz generator allows you to “inject” signals (Sine, Square, etc.) into your circuit to find faults.
Logic Analyzer: 16-channel digital input (optional) for analyzing complex SPI, I2C, and CAN bus data streams simultaneously.
Technical Specifications
| Feature | Specification |
| Bandwidth | 100 MHz |
| Channels | 2 Analog Channels |
| Real-time Sample Rate | 1 GSa/s |
| Vertical Resolution | 8 bit |
| Memory Depth | 8M per channel |
| Signal Generator | 25 MHz (Arbitrary Waveform) |
| Screen | 7-inch High Resolution Color LCD |
| Interface | USB Host (for Pen Drive) & USB Device (for PC software) |
Why Choose the 2D15P for your Lab?
Massive Screen: The 7-inch display makes it easy to spot noise and glitches that are invisible on smaller screens.
Auto-Measure: Over 30 automatic measurement types (Frequency, Vpp, Duty Cycle, etc.) at the touch of a button.
FFT Analysis: Convert signals from time-domain to frequency-domain to analyze harmonics and interference.
