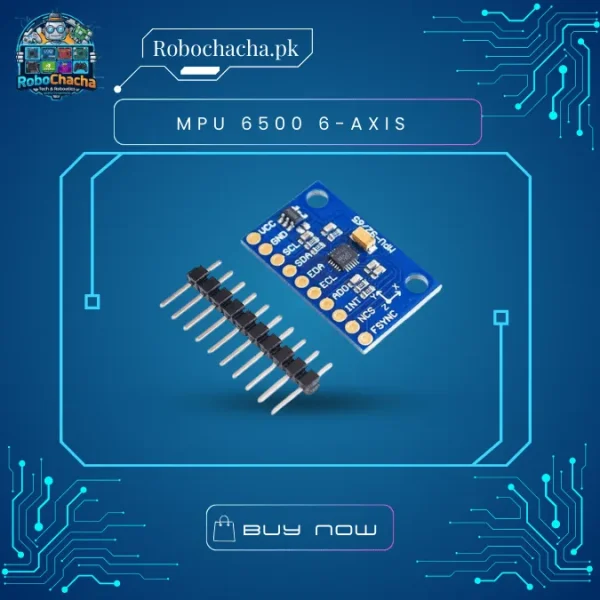

GY-6500 MPU6500 6-Axis High-Speed Gyro & Accelerometer Module in Pakistan

Overview 📝 The MPU-6500 (GY-6500) is a high-performance 6-axis MotionTracking device designed for projects that need more speed and precision than the standard MPU-6050. It combines a 3-axis Gyroscope and a 3-axis Accelerometer in a compact 3x3mm package. With added support for SPI communication (up to 20MHz), this module is the top choice for advanced Arduino, STM32, and ESP32 developers in Pakistan.

Key Features ✨

• SPI & I2C Interface: Supports high-speed SPI for faster data sampling compared to I2C-only modules. ⚡

• Ultra-Low Power: Consumes nearly 60% less power than previous generations, making it ideal for battery-operated wearables. 🔋

• Enhanced DMP: The on-chip Digital Motion Processor™ offloads complex calculations from your microcontroller. 🧠

• Compact GY-6500 Design: Breadboard-friendly pins for quick prototyping.

Technical Specifications ⚙️ | Feature | Specification | | :— | :— | | Model | MPU-6500 / GY-6500 | | Operating Voltage | 1.8V to 3.3V (Module supports 3V-5V) | | Communication | I2C (400kHz) & SPI (up to 20MHz) | | Gyroscope Range | ±250, 500, 1000, 2000 °/s | | Accelerometer Range | ±2, ±4, ±8, ±16g | | Sampling Rate | Up to 32kHz (Gyro) / 4kHz (Accel) | | Dimensions | 15mm x 25mm |

Why Choose MPU-6500 over MPU-6050? 🤔

• Better Stability: Lower noise floor and improved thermal stability for cleaner data.

• Faster Response: High-frequency sampling makes it superior for racing drones (FPV).

• Smaller Size: Fits easily into compact DIY projects.
