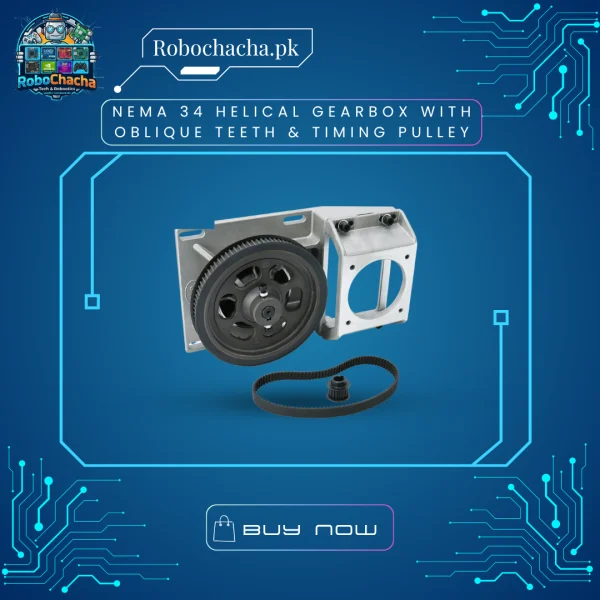

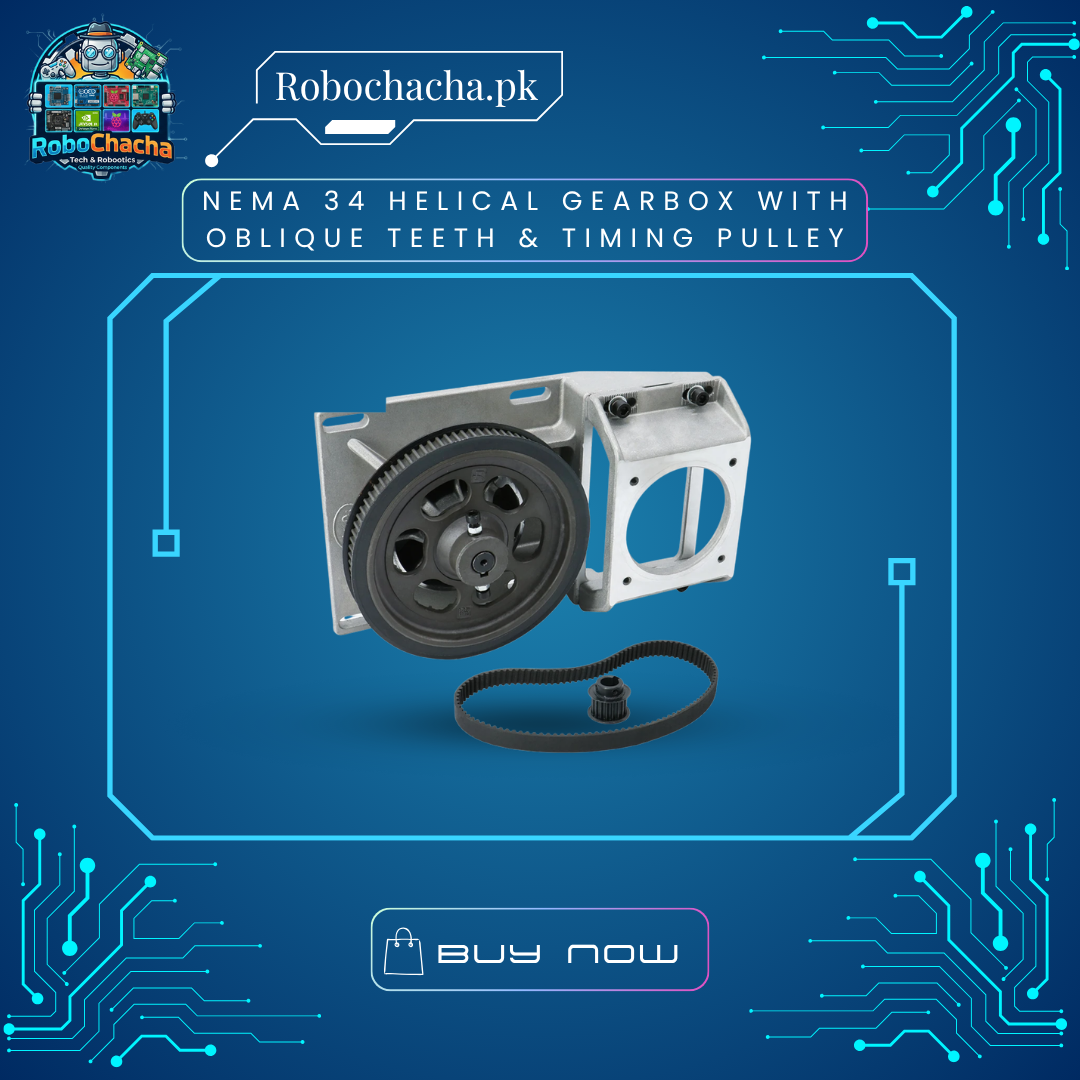

NEMA 34 Helical Gearbox with Oblique Teeth & Timing Pulley – High-Torque Low-Backlash Reducer for CNC & Robotics

Overview

Take your heavy-duty industrial machines to the next level of precision with the Oblique Teeth NEMA 34 Helical Gearbox. Engineered specifically for high-torque applications where positioning accuracy is non-negotiable, this gearbox utilizes an advanced helical gear design. The angled oblique teeth provide a much higher contact ratio than standard spur gears, distributing mechanical stress evenly and eliminating jerky transitions. Outfitted with a rugged, integrated timing pulley output, it offers a robust, zero-slip interface perfect for driving heavy gantries, rack-and-pinion systems, or precision robotic joints.

Key Features

• High-Torque Helical Gearing: Oblique teeth ensure continuous, smooth gear meshing, allowing the system to handle massive torsional loads without failing.

• Ultra-Low Backlash: Crucial for bi-directional precision tasks like CNC milling and plasma cutting where directional changes can introduce positioning errors.

• Integrated Timing Pulley: Ready to accept heavy-duty timing belts directly, saving you the hassle and misalignment risk of sourcing external adapters.

• Quiet & Vibration-Free: The gradual engagement of helical profiles vastly reduces mechanical chatter and acoustic noise at high RPMs.

• Standard NEMA 34 Flange: Drop-in compatibility with standard 86mm stepper motors or brushless servo systems.

Technical Specifications

Primary Applications

• Heavy-Duty CNC Routers: Moving heavy spindle carriages across the X and Y axes smoothly without chattering.

• Robotic Manipulators: High-torque reduction for base rotation or articulating shoulder/elbow joints where precision holding torque is required.

• Industrial Automation: Actuating heavy conveyor lines, automated turning tables, and large linear stages.
