Overview

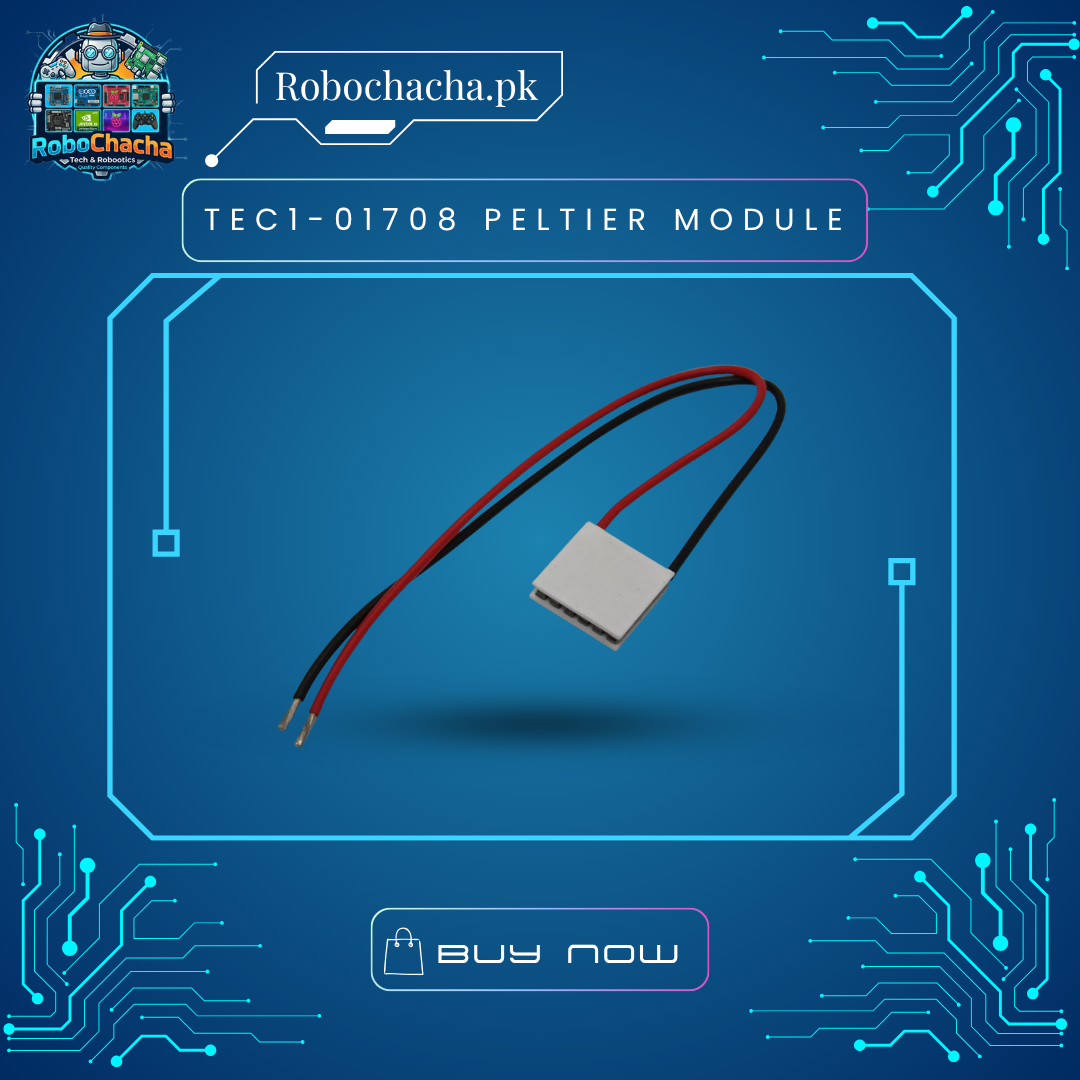

The TEC1-01708 is a high-performance, miniature thermoelectric cooler. Despite its small size, it can handle a significant current (up to 8A), allowing for rapid heat transfer in a very concentrated area. By applying a DC voltage, one side of the plate gets icy cold while the other side gets hot. It is specifically engineered for applications where space is at a premium, such as cooling small CPUs, overclocking experiments, or thermal imaging calibration.
Key Features
Ultra-Compact Footprint: Much smaller than standard 40mm Peltier plates, allowing for integration into tiny enclosures.
Solid State Reliability: No moving parts, no vibration, and no noise—ideal for sensitive electronic environments.
Rapid Response: Reaches temperature differentials in seconds, providing instant cooling or heating.
Precise Control: Temperature can be fine-tuned by adjusting the input voltage and current.
Dual-Functionality: Simply reverse the polarity to switch from cooling to heating.
Technical Specifications
| Feature | Specification |
| Model | TEC1-01708 |
| Dimensions | Approx. 15mm x 15mm x 3.8mm (or 20x20mm variant) |
| Couples | 17 |
| Imax (Max Current) | 8.0 Amperes |
| Vmax (Max Voltage) | 2.1V to 2.4V DC |
| Qmax (Max Cooling Power) | ~10 – 12 Watts |
| Tmax (Max Temp Diff) | ~60°C to 65°C |
| Wire Length | ~100mm – 150mm |
Ideal Applications
Laser Diode Cooling: Keeping high-power lasers stable during operation.
Precision Electronics: Cooling small ICs or high-speed sensors.
Portable Science Kits: Perfect for student projects demonstrating the Peltier effect.
Miniature Water Coolers: Building ultra-small chillers for liquid-cooled systems.
