Overview

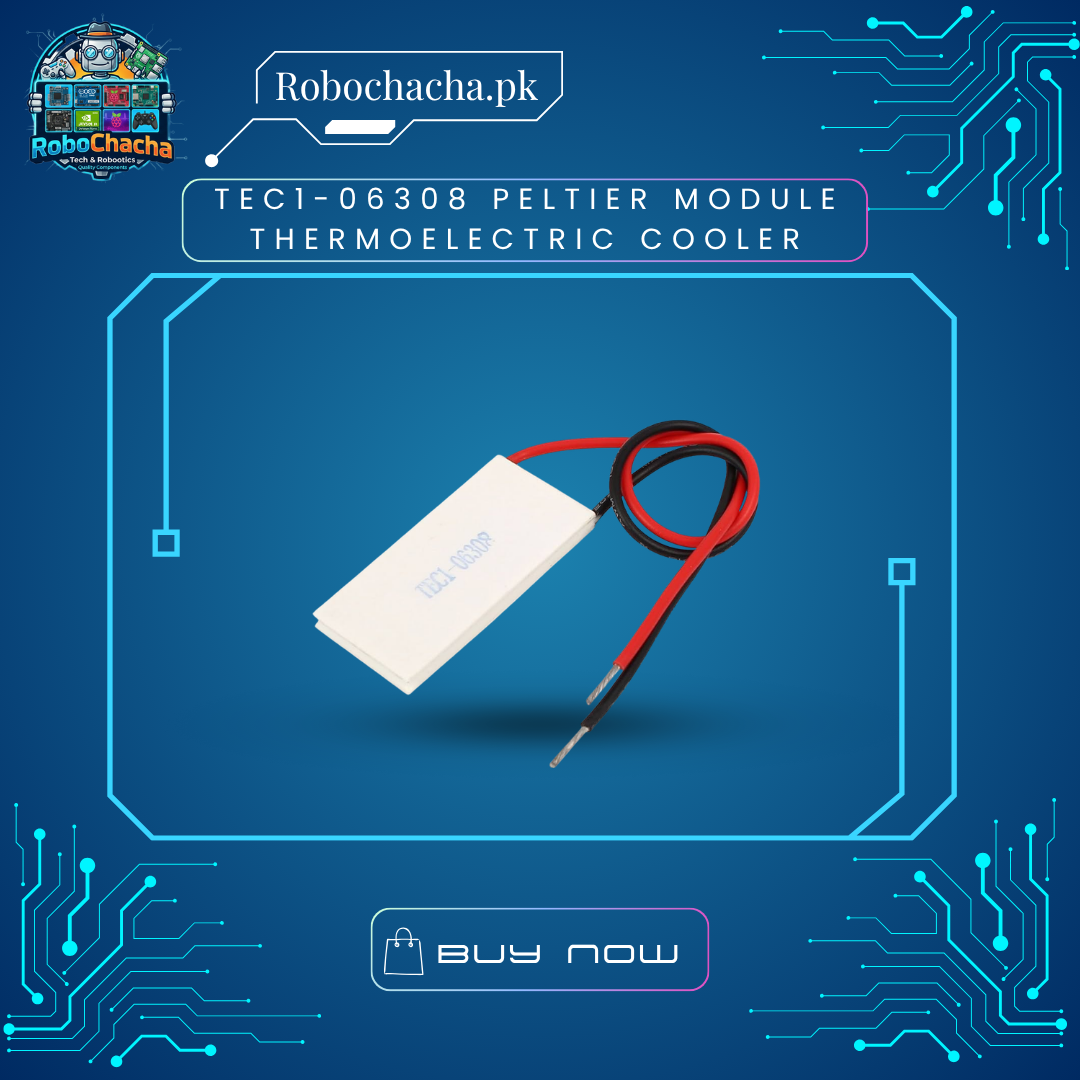

The TEC1-06308 is a high-performance thermoelectric cooler (TEC) that utilizes the Peltier effect to create a temperature differential between its two surfaces. With an 8-ampere rating, this module offers a higher cooling capacity (Q_c) than the standard 06306 series, making it suitable for demanding thermal management tasks. Its small 30mm form factor allows for integration into tight spaces where traditional fan-and-heatsink combos cannot reach.
Key Features
High Current Density: 8A max current allows for faster temperature drops and higher heat load handling.
Silent & Solid State: No moving parts or refrigerants; completely vibration-free cooling.
Precision Thermal Control: Pair it with a thermistor and a PID controller for exact temperature maintenance.
Dual Mode: Reverse the polarity of the DC input to switch instantly from cooling to heating.
Technical Specifications
| Feature | Specification |
| Model | TEC1-06308 |
| Max Voltage (V_max) | 8.4V – 9.0V DC |
| Max Current (I_max) | 8.0 Amperes |
| Cooling Power (Q_c max) | ~45W – 50W |
| Max Temp Differential (\Delta T_max) | ~66°C |
| Dimensions | 30mm x 30mm x 3.2mm |
| Wire Length | ~150mm |
| Couples | 63 |
Best Used For:
High-Power Lasers: Essential for keeping laser diodes at a constant temperature to prevent wavelength shift.
Compact Overclocking: Direct-to-die or MOSFET cooling in custom PC builds.
Medical Devices: Cooling reagents or samples in laboratory equipment.
Car Cup Coolers: Designing high-speed cooling holders for beverages.
