Overview

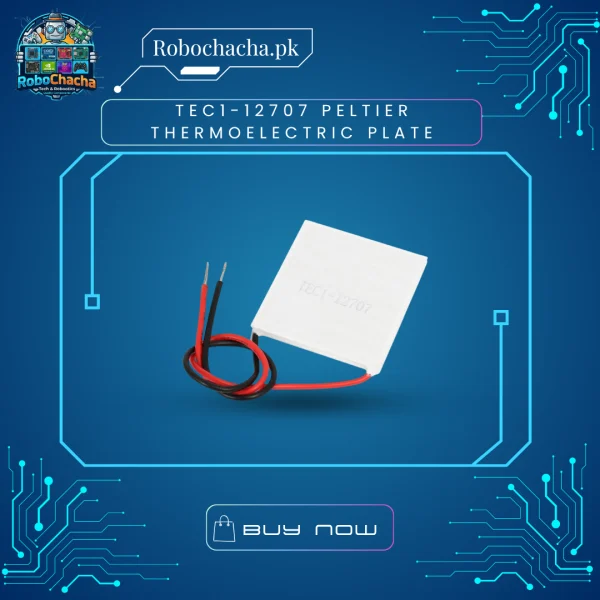

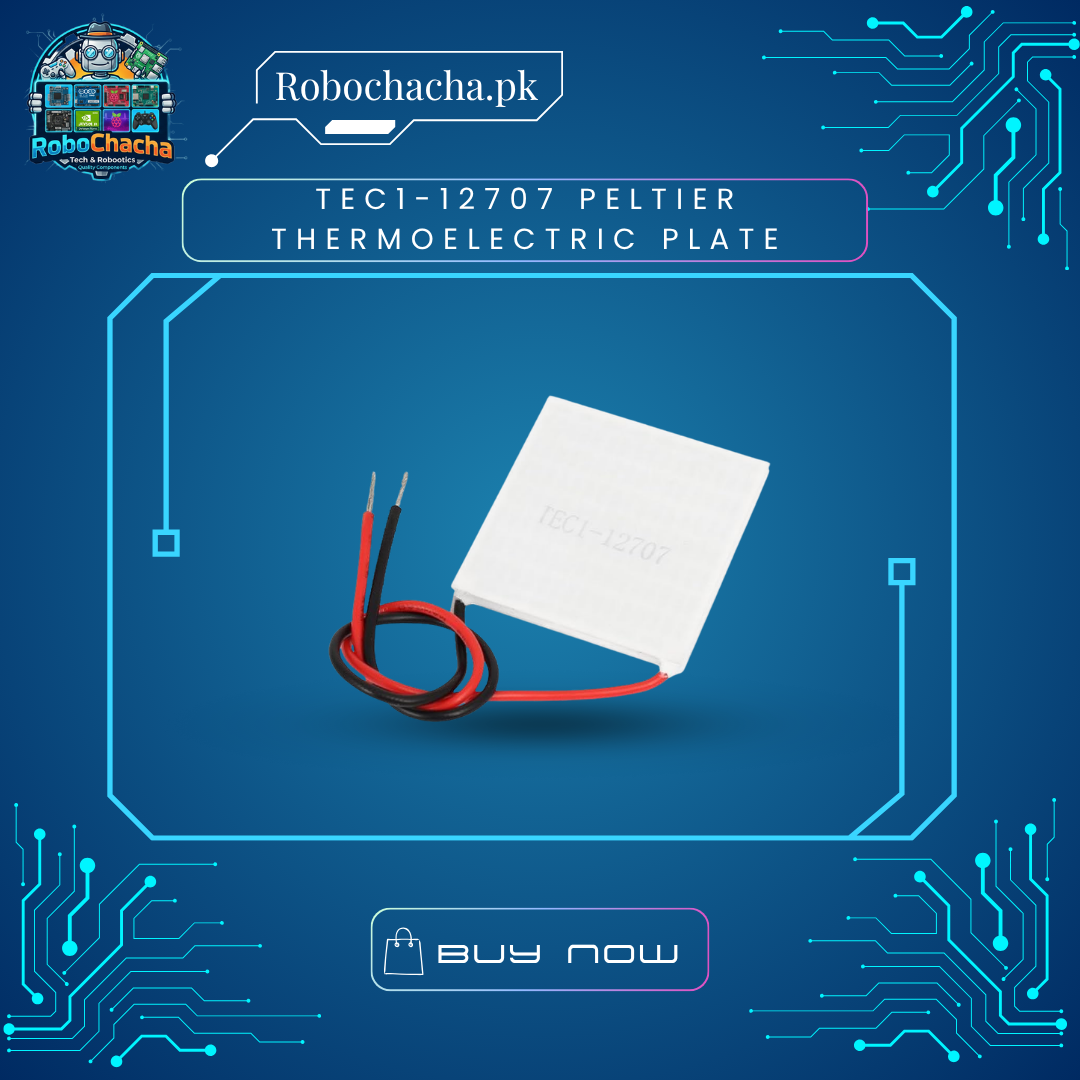

The TEC1-12707 is a solid-state active heat pump that transfers heat from one side of the device to the other against a temperature gradient. With a maximum current capacity of 7 Amperes, it offers significantly more thermal “pumping” power than standard modules. It is ideal for projects where the 12706 falls just a bit short, such as larger medical coolers, specialized laboratory equipment, or DIY air conditioning units for small enclosures.
Key Features
Increased Cooling Capacity: 7A rating provides faster pull-down times and lower minimum temperatures compared to 5A/6A models.
No Moving Parts: Operates silently and without vibration, ensuring a long life cycle in stationary projects.
Dual Cooling/Heating: Instantly switch between ice-cold and bone-dry heat by simply reversing the DC power polarity.
Standard 40mm Size: Fits into any mount or heatsink designed for the TEC1-12706, making it an easy “drop-in” upgrade.
Ceramic Construction: Features high-quality Alumina ceramic plates for excellent electrical insulation and thermal conductivity.
Technical Specifications
| Feature | Specification |
| Model | TEC1-12707 |
| Operating Voltage | 12V DC (Vmax: 15.4V) |
| Max Current (Imax) | 7.0 Amperes |
| Cooling Power (Qcmax) | ~60 – 70 Watts |
| Temperature Diff (Tmax) | ~65°C to 70°C |
| Internal Resistance | 1.5 – 1.8 Ω |
| Dimensions | 40mm x 40mm x 3.8mm |
| Wire Gauge | 18 AWG |
Popular Use Cases
DIY Portable Fridges: Keep food and drinks cold in cars or during camping.
CPU/GPU Chilling: Sub-ambient cooling for PC enthusiasts and overclockers.
Water Dispensers: Building small-scale instant cold water systems.
Dehumidifiers: Capturing moisture from the air in small storage cabinets.
