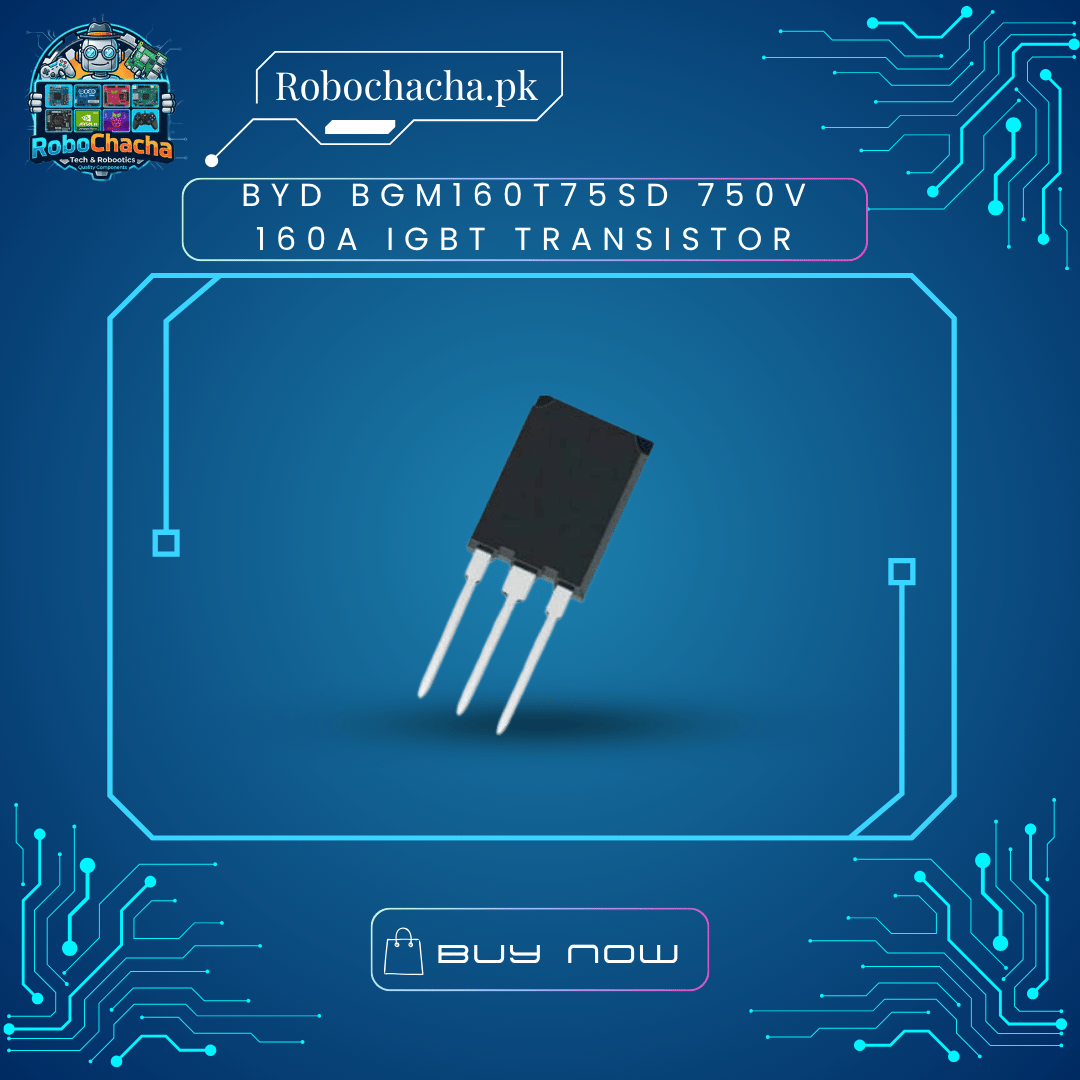

BYD BGM160T75SD 750V 160A IGBT Transistor – High-Efficiency Power Component

Overview

The BYD BGM160T75SD is an advanced IGBT designed to handle high-power loads with minimal energy loss. Utilizing Trench Field Stop (TrenchFS) technology, this transistor offers superior switching performance and thermal robustness. With a rating of 750V and 160A, it is a versatile choice for engineers repairing or building high-current inverter stages, such as those found in modern electric vehicle propulsion systems or commercial-grade power converters.

Key Features

• Advanced Trench Technology: Engineered for low $V_{CE(sat)}$ (saturation voltage) and low switching losses, maximizing overall system efficiency.

• Integrated Fast Diode: Includes a soft, fast-recovery anti-parallel diode, ideal for high-speed switching circuits.

• Robust 750V Rating: Provides excellent voltage headroom for demanding 400V-600V power bus applications.

• Thermal Efficiency: Housed in a TO-247 Plus package for excellent heat dissipation and ease of mounting to high-capacity heatsinks.

• Industrial Reliability: Built by BYD Semiconductor to meet the rigorous demands of automotive and industrial power environments.

Technical Specifications

Ideal Applications

• Electric Vehicles (EV): Motor controller and powertrain components.

• Solar Power: High-capacity grid-tie inverters and solar chargers.

• Industrial Motor Drives: High-current VFDs and servo motor controllers.

• UPS Systems: Industrial-grade uninterruptible power supplies.
