OverviewÂ

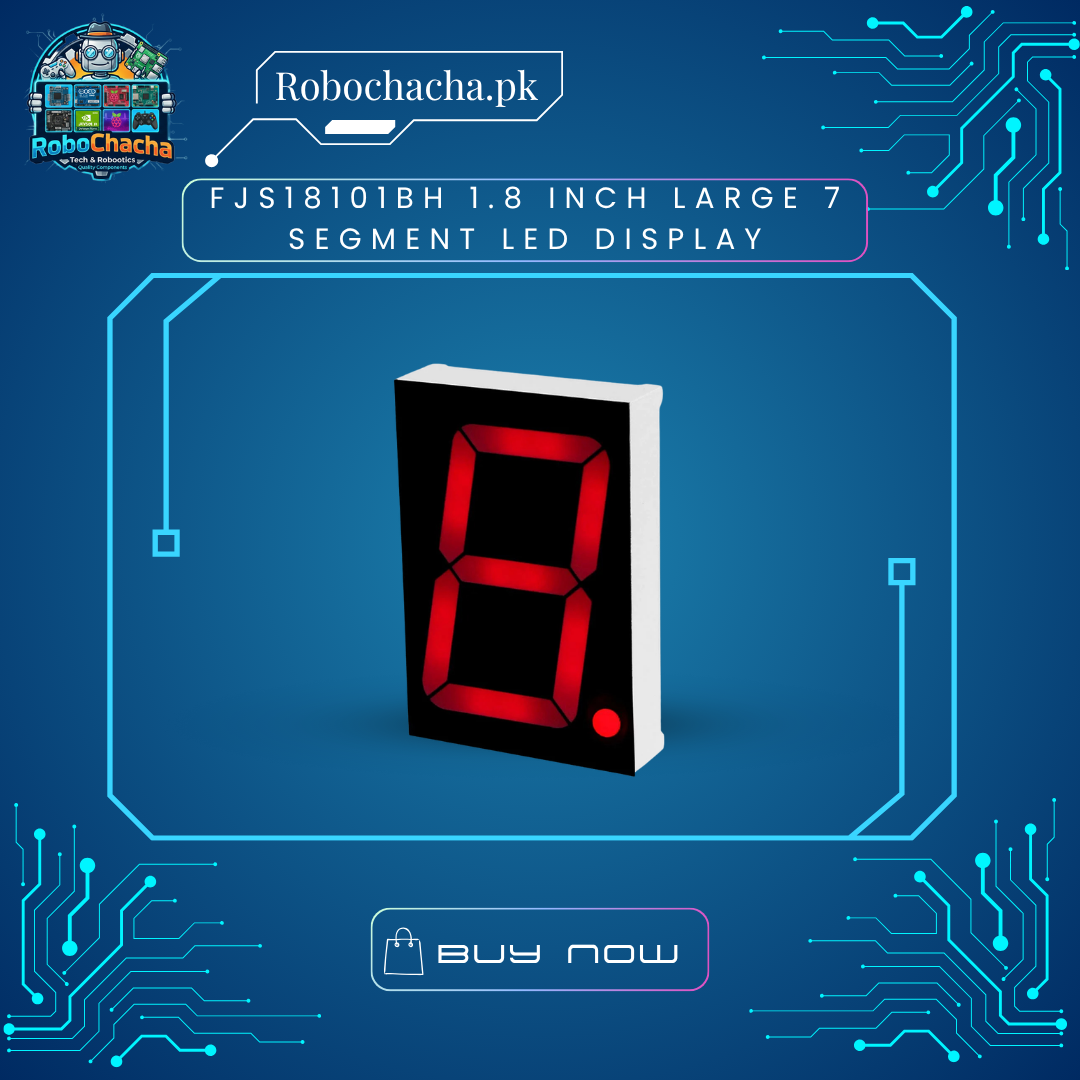

When small 0.56 displays just won’t cut it, the FJS18101BH 1.8-inch LED Display steps up. Measuring a prominent 38 mm wide by 56 mm tall, this single-digit alphanumeric display ensures your data is readable from distances up to 15 to 20 meters. It features a crisp black face with white segments when unlit, shifting to a vibrant, high-efficiency red when powered. Ideal for industrial instrumentation, token machines, gyms, and commercial sports timers.
Key FeaturesÂ
Jumbo 1.8-Inch Digit: Large format display specifically engineered for long-range readability.
Industrial Grade Red: High-brightness red output stands out sharply even in well-lit factory environments.
Common Anode Circuitry: Features a shared positive pin configuration, standard for major industrial display drivers and multiplexers.
Durable Construction: Built with a rugged black housing face and solid pins to handle stable mounting on PCBs or control panels.
Technical SpecificationsÂ
| Feature | Specification |
| Model Number | FJS18101BH / FJS-18101BH |
| Digit Height | 1.8 Inch (45.7mm internal digit / 56mm total module height) |
| Module Dimensions | 38.0 mm times 56.0 mm times 11.0 mm |
| Emitted Color | High-Brightness Red |
| Circuit Configuration | Common Anode (CA) |
| Segment Forward Voltage ($V_f$) | 6.0 V – 7.2 VÂ per segment (Multiple LEDs in series) |
| Decimal Point Forward Voltage ($V_f$) | 2.0 V – 2.4 VÂ (Single LED) |
| Recommended Operating Current | 15 mA – 20 mA per segment |
