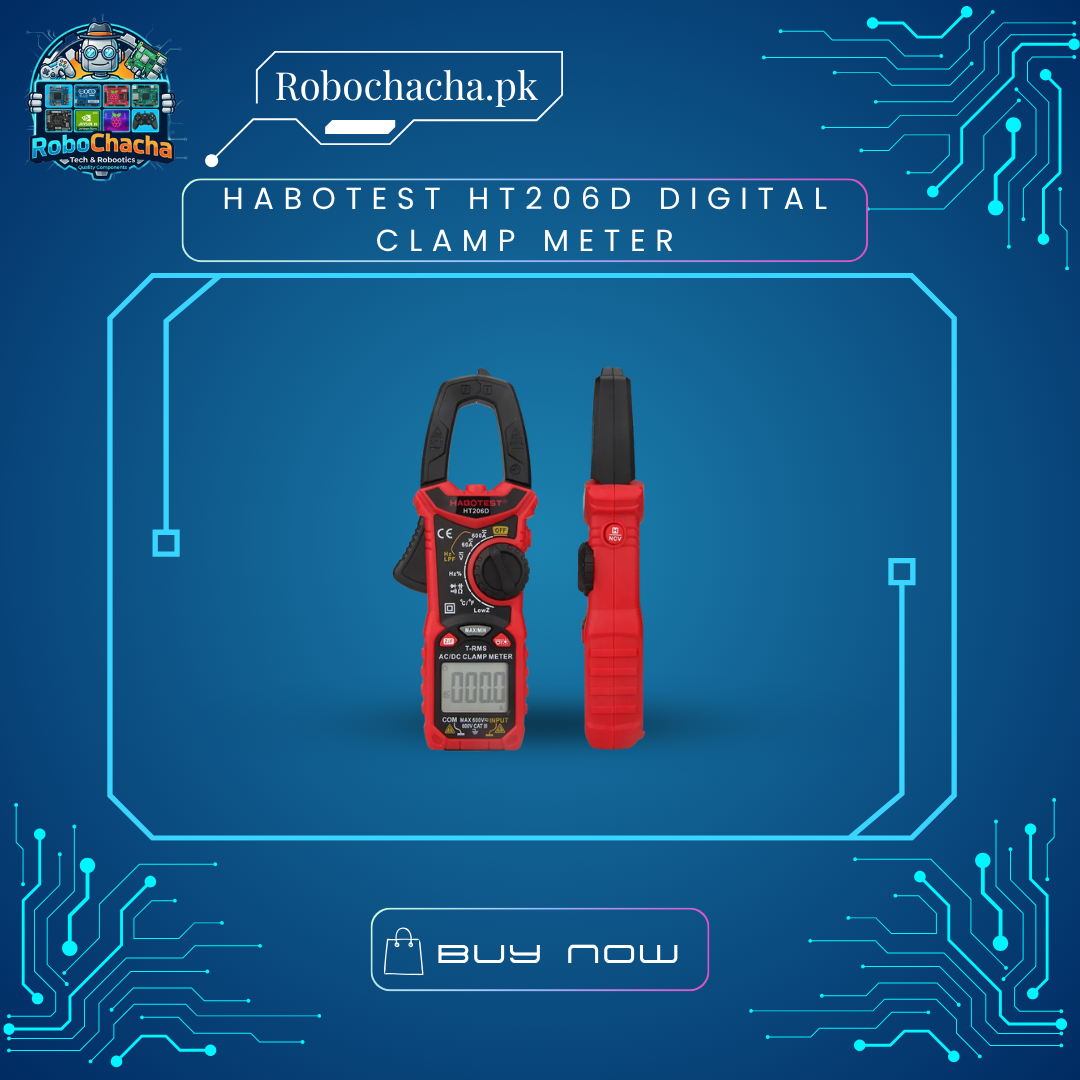

Habotest HT206D Digital Clamp Meter – 600A AC/DC Current True RMS Multimeter with NCV & Temperature

Overview

The Habotest HT206D is a high-performance, dual-current (AC/DC) digital clamp meter designed for professionals who refuse to compromise. While standard meters require you to break a circuit to measure DC amps, the HT206D uses advanced Hall Effect sensors to read DC current up to 600A simply by clipping around the wire. Combined with True RMS for accurate readings on noisy solar inverters and a LowZ mode to eliminate ghost voltages, this is arguably the most versatile tool in its price class.

Key Features

• AC/DC Current Clamping: Measure both AC and DC amperage up to 600A without interrupting the circuit.

• True RMS Accuracy: Provides precise measurements even on non-linear loads (UPS, Inverters, LED drivers).

• LowZ (Low Impedance): A specialized mode that prevents false “ghost” voltage readings caused by nearby wiring.

• LPF (Low Pass Filter): Filters out high-frequency noise when measuring variable frequency drives (VFDs).

• Full Diagnostic Suite: Includes NCV (Non-Contact Voltage), Temperature, Capacitance, Frequency, and Duty Cycle.

• Dual-Color Backlight: The screen turns orange when high voltage or current is detected, acting as an extra safety warning.
