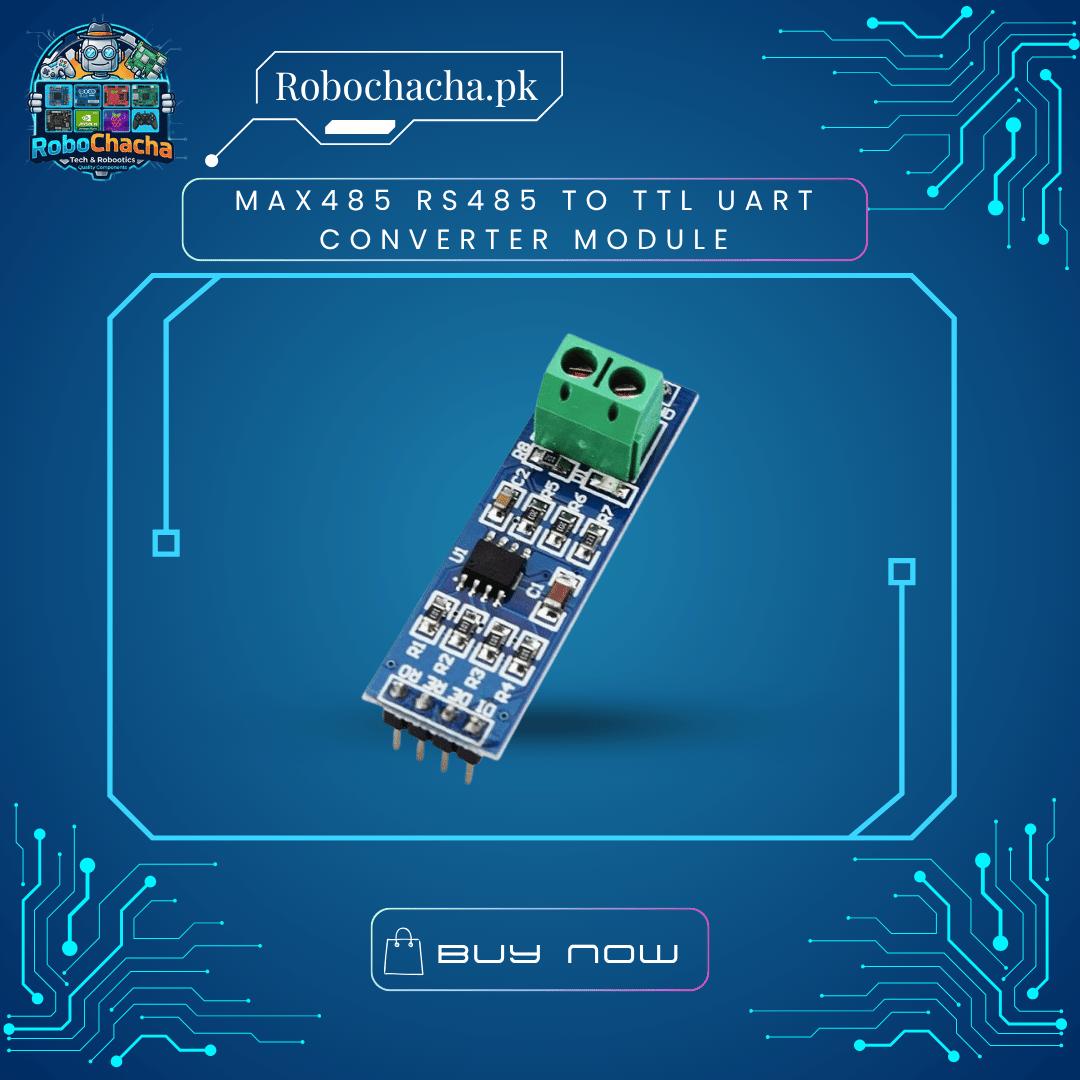

MAX485 RS485 to TTL UART Converter Module for Arduino & Industrial Automation in Pakistan

Overview

The MAX485 module is a low-power, slew-rate-limited transceiver used for RS-485 communication. It is the gold standard for connecting microcontrollers (Arduino, ESP32, STM32) to industrial equipment, sensors, and PLCs that speak the MODBUS protocol. By using a differential signal (A and B lines), this module naturally cancels out electromagnetic noise, making it immune to interference from high-power motors and fluorescent lighting.

Key Features

• Long-Distance Reliable Data: Transmit serial data over twisted-pair cables up to 1.2 kilometers.

• Multi-Drop Support: Connect up to 32 transceivers on a single bus (perfect for daisy-chaining sensors).

• High Noise Immunity: Differential signaling ensures your data stays clean even in high-EMI industrial environments.

• Easy TTL Integration: Connects directly to any 5V microcontroller’s UART (RX/TX) pins.

• Compact Design: Small footprint, easy to mount in control cabinets or junction boxes.

Technical Specifications

Why use RS-485 instead of Serial?

• Distance: Standard UART fails after a few meters; RS-485 goes for over a kilometer.

• Safety: Differential signaling protects your microcontroller from common-mode voltage spikes.

• Standards: If you are working with industrial sensors (pH meters, flow meters, PLCs), they almost always use RS-485/MODBUS.
