Overview

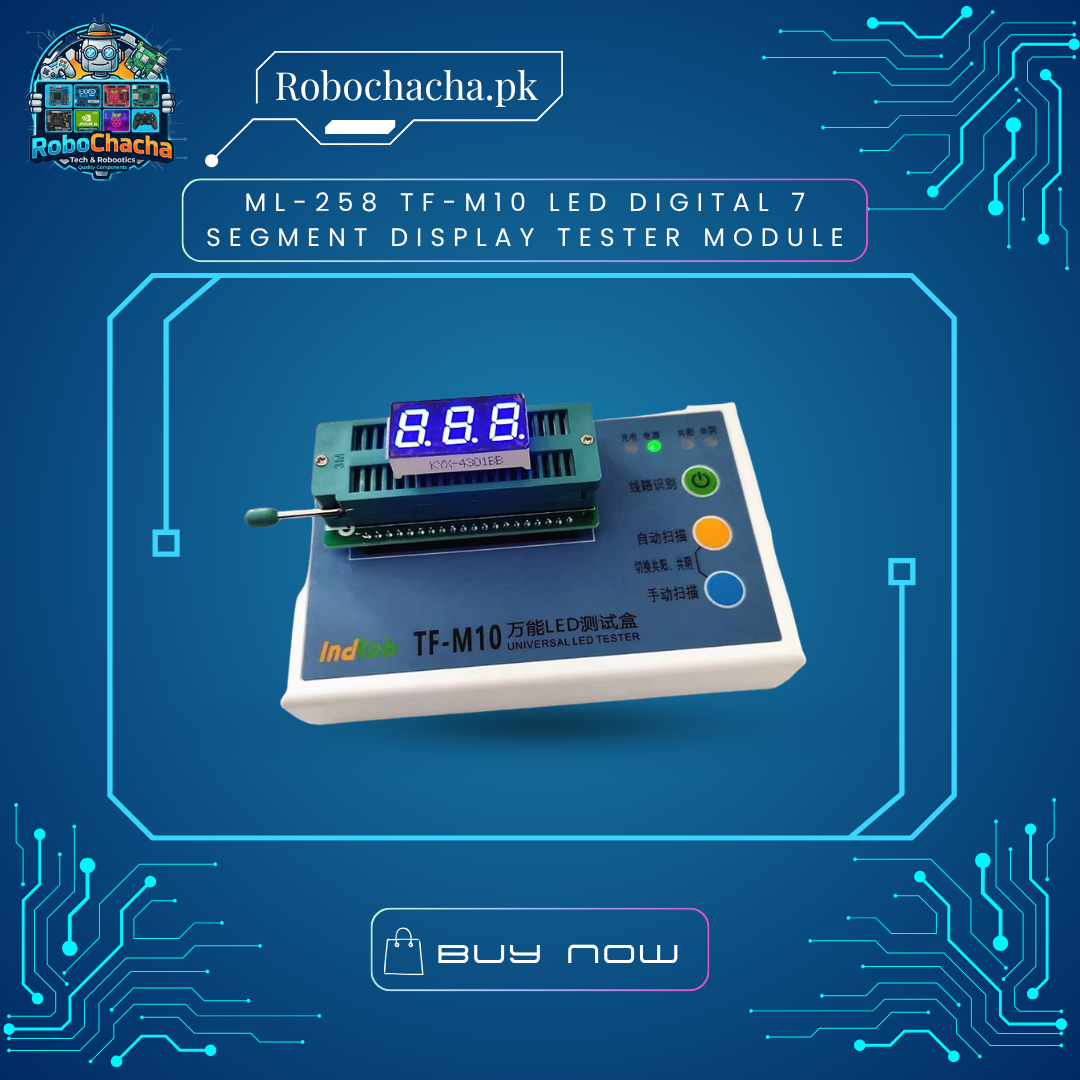

Stop wasting time troubleshooting multi-pin displays with individual jumper wires. The ML-258 TF-M10 LED Digital 7-Segment Tester is a standalone diagnostic board designed to test the functionality, brightness uniformity, and segment integrity of alphanumeric LED displays. It features multiple socket layouts to accommodate single-digit, dual-digit, triple-digit, and quad-digit 7-segment modules. It is an indispensable tool for students, electronic technicians, and manufacturing quality control departments.
Key Features
Universal Testing Slots: Multi-pin ZIF/SIP socket configurations fit a massive variety of standard 7-segment display packages.
Dual Polarity Support: Easily verifies both Common Anode (CA) and Common Cathode (CC) configurations.
Instant Dead-Segment Check: Illuminates all segments simultaneously to quickly find dim, flickering, or dead LEDs.
Safe Current Regulation: Built-in current-limiting resistors protect low-power or sensitive display segments from burning out during testing.
Standalone Operation: Requires minimal external power to cycle through all pins effortlessly.
Technical Specifications
| Feature | Specification |
| Model | ML-258 / TF-M10 |
| Supported Displays | 0.28″ to 1.0″ Single/Multi-digit 7-Segment LED Displays |
| Test Modes | Common Anode & Common Cathode |
| Operating Voltage | 5V DC (via standard power jack or terminal pins) |
| Socket Type | Precision machined female headers / test slots |
| Board Dimensions | Compact benchtop footprint |
Who is this tool for?
Repair Technicians: Quickly verify if a broken digital clock, panel meter, or microwave screen needs a new display module.
E-Commerce Retailers: Speed up your inventory QA by batch-testing 7-segment displays before shipping them to customers.
Engineering Students: Instantly map out unknown pinouts of surplus or recycled 7-segment displays.
