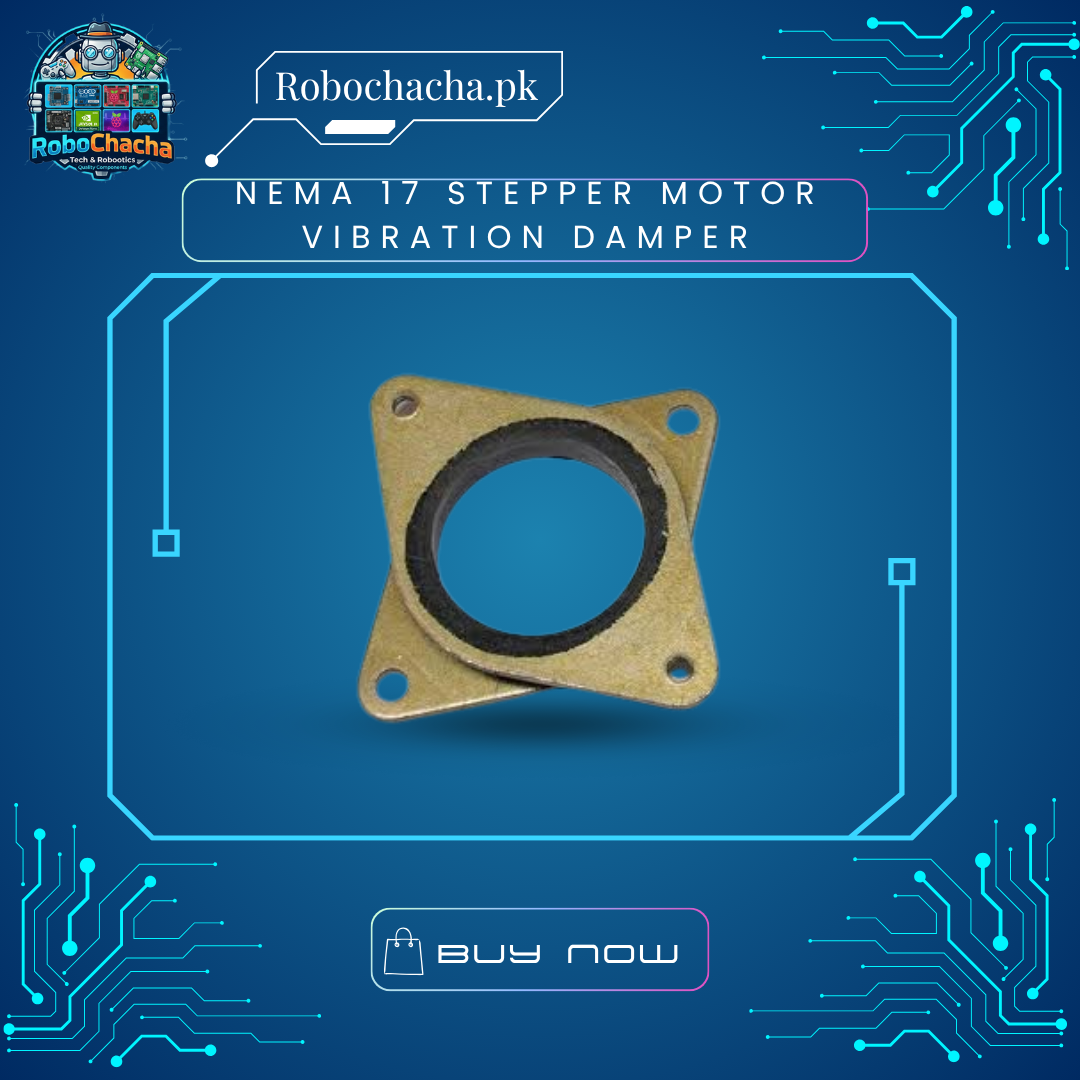

NEMA 17 Stepper Motor Vibration Damper – Steel & Rubber Shock Absorber for 3D Printer & CNC

Overview

Tired of the constant whining and buzzing noises coming from your 3D printer during long overnight prints? The NEMA 17 Steel and Rubber Vibration Damper is a simple yet highly effective mechanical upgrade designed to isolate motor resonance. By isolating the energy transfer between the motor chassis and the printer frame, this bracket reduces overall operational noise by up to 10dB to 15dB.

Additionally, by dampening harsh shock waves during sudden directional retractions, it helps eliminate surface artifacts like “ghosting” or “ringing,” giving your 3D printed models a significantly smoother exterior finish.

Key Features

• Dual-Material Composites: Heavy-duty carbon steel outer plates provide an ultra-secure thread mount, while the vulcanized rubber core handles energy dissipation.

• Massive Noise Reduction: Drastically reduces structural harmonic hums, making your workshop or workspace significantly quieter.

• Improved Surface Finish: Absorbs high-frequency micro-shocks, resulting in crisper vertical layers and fewer resonance lines on your prints.

• Standard NEMA 17 Fit: Standard face mounting pattern makes it instantly compatible with NEMA 17 motors used on Creality, Anet, Makerbot, and custom RepRap printers.

Technical Specifications

Critical Installation Warning for Builders

• Pulley Realignment: Because this damper adds roughly 6mm of thickness between the motor and the frame, your motor shaft will sit further back. You will need to loosen the grub screws on your GT2 drive pulley and slide it outward along the motor shaft by 6mm so it aligns perfectly with your timing belt path again.

• Secure Fastening: Ensure the screws mounting the damper to the frame do not pass all the way through and bind against the motor casing, as this will bypass the rubber and completely ruin the sound-dampening effect.
