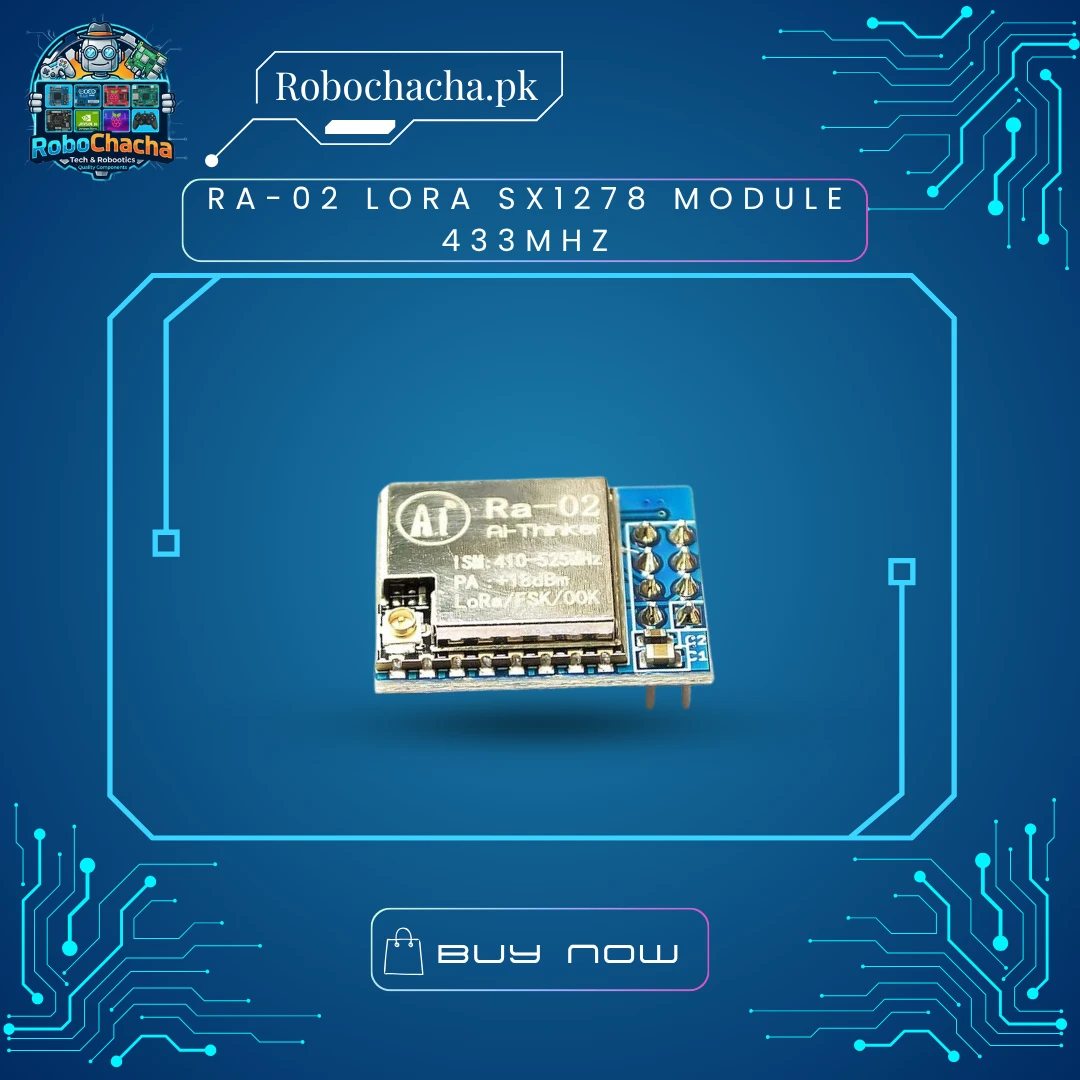

Ra-02 LoRa SX1278 Module 433MHz – 10km Long Range Wireless Spread Spectrum Node

Overview

The Ra-02 LoRa Module is based on Semtech’s SX1278 wireless transceiver. It uses patented LoRa (Long Range) spread spectrum technology to achieve extreme communication distances with high interference immunity. Unlike Wi-Fi or Bluetooth which struggle with walls and distance, LoRa can penetrate obstacles and transmit data over several kilometers. It’s designed for “set-and-forget” battery-powered nodes that only need to send small amounts of data (like sensor readings) over long distances.

Key Features

• Extreme Range: Capable of 1–3km in urban areas and up to 10km+ in open line-of-sight environments.

• Anti-Interference: Uses LoRa spread spectrum modulation to stay stable even in “noisy” RF environments.

• Ultra-Low Power: Ideal for battery-operated devices; the module can stay in “deep sleep” for years on a single charge.

• SPI Interface: Easy to connect with Arduino, ESP32, STM32, and Raspberry Pi using standard libraries.

• Wake-on-Radio: The module can stay in a low-power state and only wake up when it detects an incoming signal.

Technical Specifications

Why LoRa instead of NRF24L01?

• Distance: NRF24L01 usually stops at 100m; LoRa keeps going for kilometers.

• Obstacles: LoRa penetrates walls and trees much better than 2.4GHz signals.

• Reliability: LoRa is far less likely to be “jammed” by Wi-Fi or Microwave noise.
