Overview

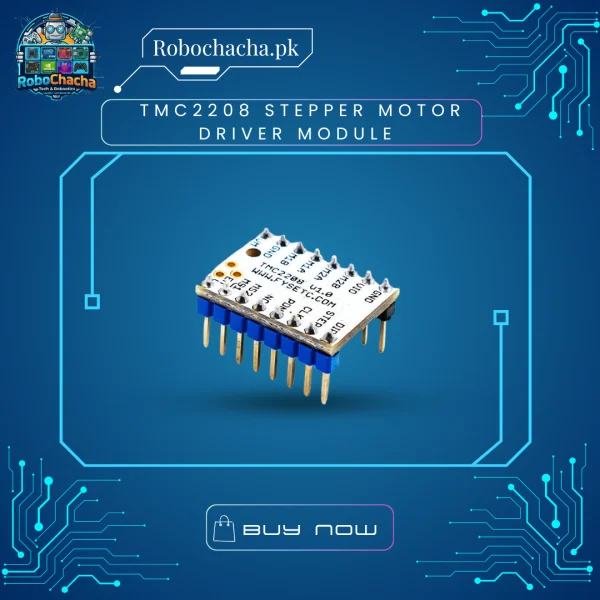

The TMC2208 is an ultra-silent single-axis stepper motor driver chip with an integrated power mosfet stage. It is designed to be a drop-in replacement for standard step/direction drivers found on 3D printer mainboards (like Creality Ender series, SKR, or RAMPS). By utilizing advanced interpolation technology, it can take a standard signal and smooth it out to 256 microsteps, resulting in silky-smooth motor movement, reduced vibration, and near-zero operational noise.
Key Features
StealthChop2â„¢ Technology: Delivers exceptionally quiet motor operation, making the motor completely silent at low-to-medium speeds.
SpreadCycleâ„¢ Technology: Highly dynamic chopper control for high-speed, high-torque applications when noise isn’t the primary concern.
Massive Microstepping: Hardware support for up to 1/256 microstepping via internal interpolation from a standard 1/16 input.
UART Mode Capable: Can be configured via single-wire UART for advanced firmware control (adjusting current and switching modes on the fly via Marlin/Klipper).
Thermal Protection: Comes with a custom mini-aluminum heatsink to dissipate heat during long printing cycles.
Technical Specifications
| Feature | Specification |
| Driver IC | Trinamic TMC2208 |
| Motor Supply Voltage (VM) | 4.75V to 36V DC |
| Logic Supply Voltage (VIO) | 3.0V to 5.5V DC |
| Continuous Current (RMS) | 1.4A (with proper cooling) |
| Peak Current | 2.0A max |
| Step/Dir Resolution | 1/2, 1/4, 1/8, 1/16 with MicroPlyerâ„¢ 1/256 interpolation |
| Control Interface | Step/Dir Pins or UART Mode |
Why Upgrade to TMC2208?Â
Work in Peace: You can literally run your 3D printer on your desk right next to you while studying or working without being distracted by motor whine.
Smoother Surface Finish: The finer microstepping reduces “salmon skin” artifacts on 3D prints, giving you cleaner, smoother vertical walls.
Drop-in Compatibility: Follows the standard StepStick pinout layout, making it compatible with most open-source control boards.
