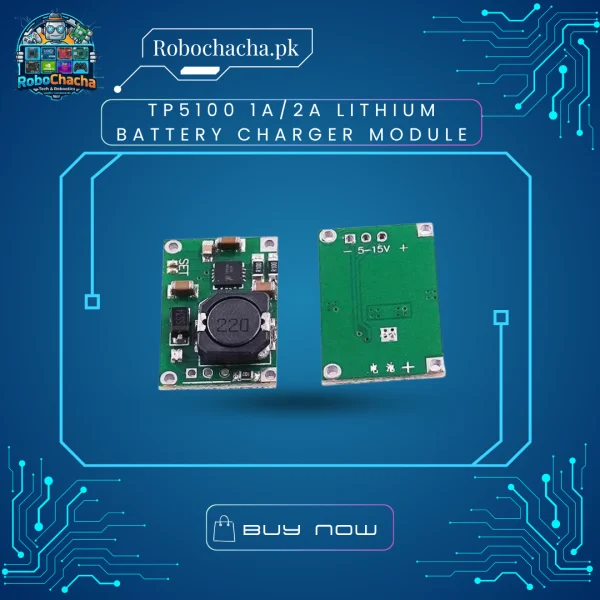

TP5100 1A 2A High Efficiency Switch-Mode Lithium Battery Charger Module Board for 4.2V 1S and 8.4V 2S Series 18650 Cells

TP5100 1A/2A Lithium Battery Charger Module – 4.2V Single & 8.4V Dual 2S Cell Compatible Charging Board

Name: TP5100 1A/2A Lithium Battery Charger Module – 4.2V Single &amp; 8.4V Dual 2S Cell Compatible Charging Board
Brand: Robochacha.pk
SKU: PWR-CHG-TP5100-2A
Price: 150 PKR
Availability: InStock

SKU: PWR-CHG-TP5100-2A

₨ 150

Add ₨ 10,000 to cart and get free shipping!

Add to compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description

Overview

The TP5100 is a programmable, switch-mode buck (step-down) lithium battery charging management chip module. It is engineered to handle single-cell ( $4.2\text{V}$ ) or dual-cell ( $8.4\text{V}$ ) lithium battery configurations.

Because it operates as a switching regulator rather than a linear regulator, it achieves incredible power efficiency, allowing it to charge batteries at double the speed ( $2\text{A}$ ) of standard modules without generating excessive, damaging heat. It includes built-in over-current, under-voltage, over-temperature, and short-circuit protections.

Key Features

Dual-Cell Versatility: Charges a standard 1S lithium battery or a 2S series lithium pack ( $8.4\text{V}$ total) with a simple solder pad bridge adjustment.
Rapid 2A Charging Rate: Shipped as 2A by default, reducing battery charge times by up to $50\%$ compared to 1A chargers.
Wide Input Range: Can handle a broad input voltage (5 $5\text{V}$ to 1 $18\text{V}$ ), making it perfect for multi-voltage projects or solar panel inputs.
Onboard Status LED: Built-in dual-color LED displays real-time charging status (Red: Charging | Blue/Green: Fully Charged / Standby).
Dedicated External LED Headers: Features solder pads to attach an external LED indicator if you are mounting the board inside an enclosure.

Technical Specifications

Feature	Specification
Charger IC	TP5100 (Switch-Mode Buck Architecture)
Input Voltage Range	5.0V to 18.0V DC (Input must be $\ge 7\text{V}$ for 2S mode)
Output Voltage Default	4.2V (1S Battery Configuration)
Output Voltage Modded	8.4V (2S Series Battery Configuration)
Charging Current	2.0A Maximum (Can be modified down to 1A)
Status Indication	Red (Charging) / Blue-Green (Charged/Idle)
PCB Dimensions	25mm x 17mm x 5mm

5. Mode & Current Modification Guide

To adapt the board to your specific battery pack, locate the marked solder traces on the PCB:

To Enable 8.4V (2S Series Pack Mode): Locate the two pads labeled “SET” and bridge them together with a drop of solder. (Leave open for standard single-cell 4.2V operation).
To Reduce Charging Current to 1A: The board uses dual parallel current sensing resistors to achieve 2A. Desolder or remove one of the onboard 0.1 ohm resistors to limit the output current safely to 1A (ideal for smaller capacity cells).
