OverviewĀ

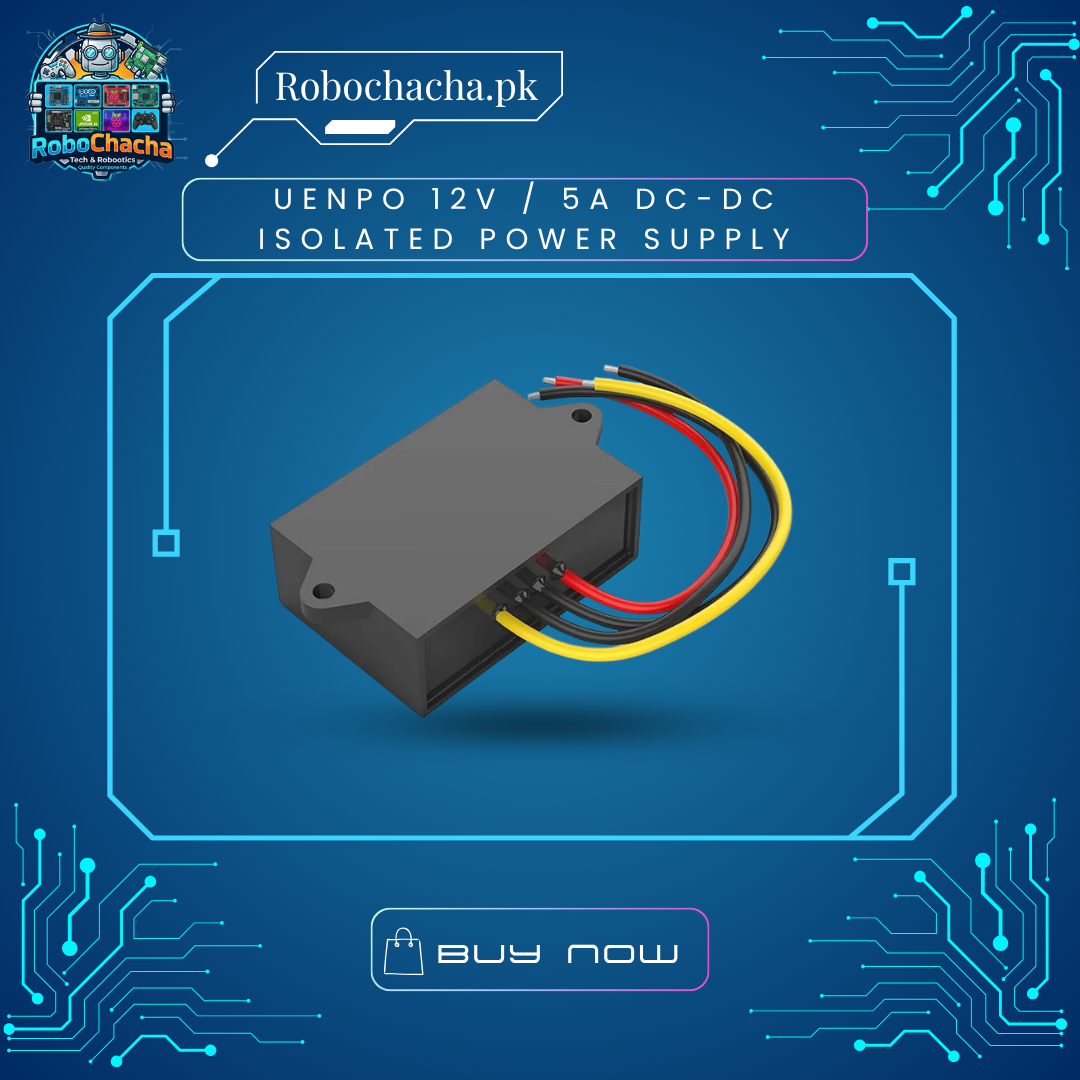

Safely bridge the gap between high-voltage power networks and low-voltage control systems with the UENPO High-Voltage Isolated DC-DC Step-Down Power Supply Module. Engineered for continuous industrial duty, this converter accepts an input range from 75 VĀ up to 150 V DC and converts it to a highly stable 12 V DCĀ rail capable of delivering up to 5AĀ (60 WĀ of clean current. Featuring true galvanic isolation between the input and output circuits, this module guarantees that a catastrophic spike on your primary high-voltage side will never migrate down to fry your sensitive microcontrollers, PLCs, or telemetry sensors.
Key FeaturesĀ
True Galvanic Circuit Isolation: Provides complete electrical separation between the high-voltage input and low-voltage output stages, eliminating ground loops and suppressing massive electrical noise.
Ultra-Wide High-Voltage Input: Rugged internal topology handles wide voltage fluctuations ($75\text{V} – 150\text{V DC}$), making it ideal for solar strings, telecom backup banks, and EV platforms.
Heavy-Duty 60W Output: Continuously delivers up to 5 Amps at 12V DC, easily powering heavy inductive loads like industrial relays, solenoid valves, actuators, and chassis cooling fans.
Rugged Industrial Packaging: Housed in a compact, vibration-resistant casing with an integrated aluminum heatsink backplane for excellent passive thermal dissipation.
Comprehensive Fault Shielding: Complete safety layer featuring over-current limiting, over-temperature throttling, input under-voltage lockout, and continuous short-circuit recovery.
Technical SpecificationsĀ
| Feature | Specification |
| Brand / Series | UENPO Industrial Power |
| Input Voltage Range | 75 V to 150 V DC |
| Output DC Voltage | 12 V DC (Note: 5V output configuration available via variant drop-down) |
| Maximum Output Current | 5.0 A |
| Total Rated Power | 60 Watts |
| Isolation Voltage | ge 1500 V DC(Input to Output) |
| Conversion Efficiency | ~88% to 91% at full load |
| Cooling Method | Passive Convection (Aluminum Baseplate Heatsink) |
| Terminal Configuration | Screw Terminals: +Vin, -VinĀ (Input) | +Vout, -VouĀ (Output) |
Primary Industrial ApplicationsĀ
Solar PV Array Logic Power: Tapping directly into high-voltage solar panel strings ($~100\text{V}$) to power remote weather stations, tracking motors, and data loggers without running AC grid lines.
Electric Vehicles & Forklifts: Stepping down high-voltage industrial traction battery packs down to a standard 12V line for cabin lighting, horns, and dash electronics.
Telecom & Base Stations: Operating off standard high-voltage DC backup battery arrays to feed low-power networking equipment securely.
