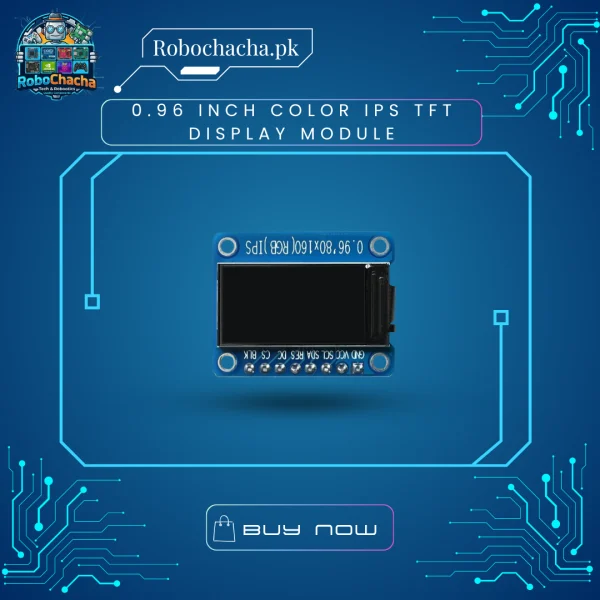

0.96 Inch Color IPS TFT Display Module – 80×160 SPI 8-Pin ST7735 HD Screen for Arduino & ESP32 in Pakistan

Overview

Add a vibrant, high-definition visual upgrade to your next DIY gadget with our 0.96″ 8-Pin Color IPS TFT Display Module. This micro-sized screen offers an impressive 65K RGB color palette at an $80 \times 160$ resolution. Thanks to advanced IPS (In-Plane Switching) display technology, it delivers vivid color replication and near-perfect 160-degree viewing angles. It communicates via standard 4-wire SPI protocol, enabling swift frame rates for animations, custom progress bars, and multi-color telemetry layouts.

Key Features

• Stunning IPS Panel: Superior color vibrancy, contrast, and significantly wider viewing angles compared to standard TN displays.

• Full RGB Color: Supports 16-bit 65K colors to display complex, multi-colored user interfaces, colorful warning indicators, and logos.

• High-Speed SPI Interface: The 8-pin configuration utilizes 4-wire SPI communication, ensuring fast refresh rates for real-time sensor plotting.

• ST7735 Driver Engine: Broad library compatibility—works instantly with popular Arduino libraries like Adafruit_ST7735 and TFT_eSPI.

• Level-Shifter Friendly: Highly compatible with 3.3V and 5V power and logic circuits, making it exceptionally safe for various microcontrollers.

Technical Specifications

The 8-Pin Interface Breakdown

As visible on the top of the module header, the 8 operational pins route as follows:

1. GND: Ground Power

2. VCC: Power Supply (3.3V / 5V)

3. SCL: SPI Clock Line (CLK)

4. SDA: SPI Data Line (MOSI)

5. RES: Screen Reset Pin

6. DC: Data/Command Selection Pin

7. CS: Chip Select Pin (Enables SPI)

8. BLK: Backlight Control (Pull HIGH to turn on, or tie to PWM for brightness dimming)
