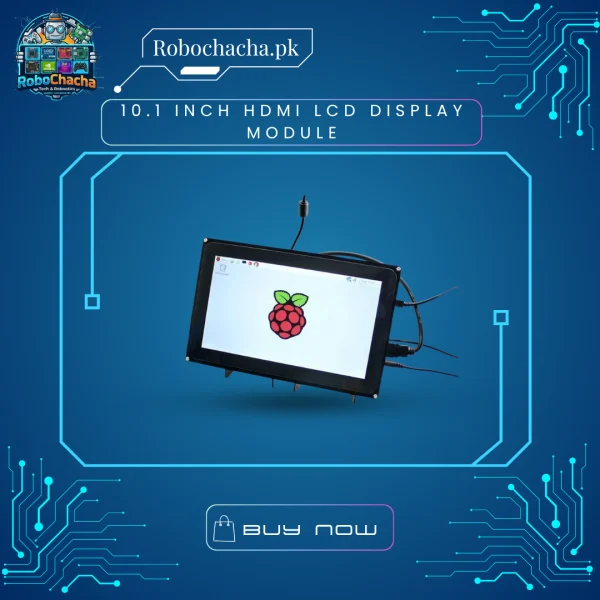

10.1 inch HDMI LCD Display Module – 1024×600 IPS Capacitive Touch Screen for Raspberry Pi & PC

Overview

Bring professional-grade, crisp visuals to your embedded applications with the 10.1″ HDMI LCD Display Module. Boasting an IPS (In-Plane Switching) panel, this display offers stunning color accuracy and wide 178° viewing angles. The integrated capacitive touch layer handles up to 5 multi-touch points via a simple USB connection. It acts as a standard USB HID (Human Interface Device) layer, meaning it works instantly out of the box with Windows, Linux, and Raspberry Pi OS without requiring tedious drivers.

Key Features

• Stunning IPS Panel: Deep contrast and vibrant colors that do not distort when viewed from sharp angles.

• Plug-and-Play HDMI: Simple video connection works seamlessly with Raspberry Pi, Nvidia Jetson, mini PCs, and desktop computers.

• Capacitive Touch: Fast, responsive touch interface utilizing the modern USB connection protocols.

• Audio Capable: Features built-in headphone routing jack or integrated speaker expansion pads directly on the backplate.

• Backlight Control: Onboard hardware switch to turn the backlight off completely for extreme power-saving applications.

Technical Specifications

Raspberry Pi Configuration Fix

If your customer hooks this display to a Raspberry Pi and sees a black or poorly scaled screen, it is because Linux is attempting to output standard 1080p resolution. Tell them to add these lines to their /boot/config.txt file to lock in native hardware timing:

hdmi_group=2
hdmi_mode=87
hdmi_cvt=1024 600 60 6 0 0 0
hdmi_force_hotplug=1
