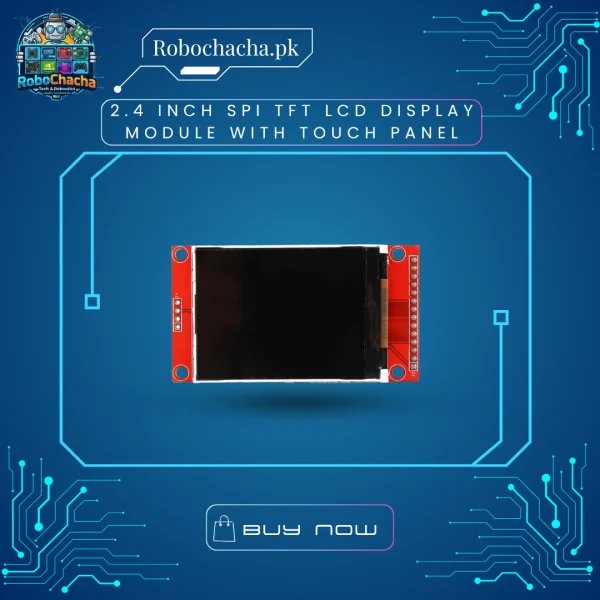

Bring your embedded projects to life with the 2.4″ SPI TFT LCD Touch Screen Module. Offering a vivid 240 × 320 pixel resolution and supporting up to 65,000 rich RGB colors, this display provides crisp graphics for any handheld device prototype or control console.
The integrated resistive touch layer enables direct user input via a stylus or fingernail. It communicates completely through high-speed serial peripheral interface (SPI) pins, minimizing the wire count required to control the display, touch matrix, and the integrated storage slot simultaneously.
Key Features
Resistive Touch Controller: Features an onboard XPT2046 chip for stable, accurate touch coordinate tracing.
On-Board SD Card Slot: Easily store, read, and display massive full-color bitmap images or log long-term sensor data directly to memory.
High-Speed SPI Communication: Shared SPI data lines keep your wiring relatively clean across multiple interfaces.
Universal Library Compatibility: Pairs perfectly with standard graphics frameworks like Adafruit_ILI9341, TFT_eSPI, and XPT2046_Touchscreen.
Technical Specifications
Feature
Specification
Screen Size
2.4 Inch (Diagonal)
Resolution
240 x 320 Pixels (Portrait/Landscape adjustable)
Display Driver IC
ILI9341
Touch Controller IC
XPT2046 (Resistive Touch)
Color Depth
16-bit RGB (65K Colors)
Operating Voltage
5V VCC Power (Logic inputs require level shifting)
Interface Protocol
4-Wire SPI
Active Display Area
Approx. 36.72mm x 48.96mm
Weight
2000 g
Dimensions
15 × 10 × 5 cm
