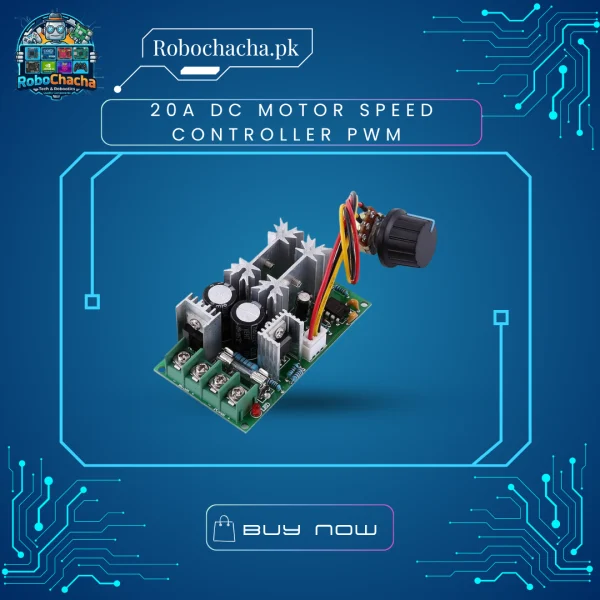

20A DC Motor Speed Controller PWM – 9V-60V High Power Adjustable Voltage Regulator Switch for Robotics

Overview

The 20A DC PWM Motor Speed Controller is an industrial-grade electronic regulator engineered for high-power applications. Operating on a wide voltage range from 9V up to 60V DC, this driver can effortlessly regulate high-current brushed DC motors, LED strip dimming arrays, or heating elements. Encased in a rugged aluminum chassis for optimal thermal dissipation, it features an integrated potentiometer with a long, flexible wire harness, allowing for easy panel-mounting in your project boxes or control panels.

Key Features

• High Efficiency Design: PWM duty cycle adjusts smoothly from 0% to 100% with very low heat generation, ensuring over 90% power efficiency.

• Rugged Aluminum Enclosure: Protects internal circuitry from external debris while acting as a large surface-area heatsink.

• Wide Voltage Range: Compatible with standard 12V, 24V, 36V, and 48V battery systems and industrial power supplies.

• Panel-Mount Potentiometer: Includes a premium, detachable speed adjustment knob for easy dashboard integration.

• Heavy-Duty Screw Terminals: Features thick barrier terminals to securely hold high-gauge wires handling up to 20 Amperes.

Technical Specifications

Wiring Guide

The terminal blocks are clearly labeled on the back of the PCB:

1. Power + / Power – : Connects to your DC Power Supply or Battery (9V – 60V).

2. Motor + / Motor – : Connects directly to your Brushed DC Motor or Actuator.

Note: Reverse polarity on the power lines will damage the module immediately. Double-check your input polarities before flipping the switch!
