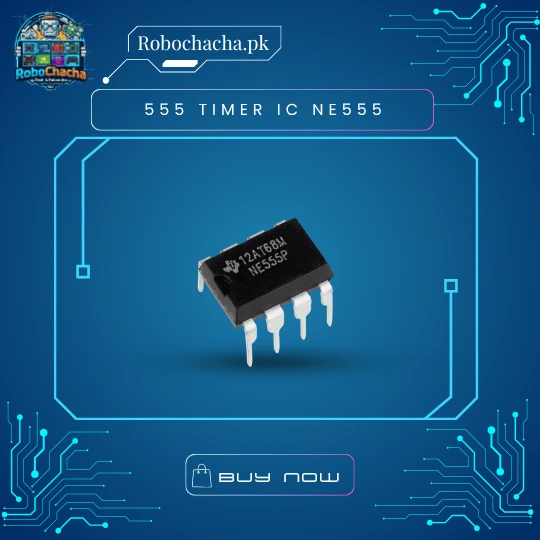

555 Timer IC NE555 / LM555 Precision Single Timer Integrated Circuit

Overview

The 555 Timer IC (NE555 / LM555) is a highly stable controller capable of producing accurate time delays or oscillation. In the time-delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For astable operation as an oscillator, the free-running frequency and duty cycle are accurately controlled with two external resistors and one capacitor.

From simple LED flashers to complex tone generators, the 555 Timer IC NE555 remains the fundamental building block of analog and digital electronics.

Key Features

• Multiple Operating Modes: Operates in Monostable (one-shot), Astable (free-running), and Bistable (Schmitt trigger) modes.

• High Output Current: Can source or sink up to 200mA, enough to drive small relays or LEDs directly.

• Wide Voltage Range: Works reliably from 4.5V up to 16V DC.

• Timing from Microseconds to Hours: Highly flexible timing intervals based on external RC components.

• Industry Standard: Compatible with all standard breadboards and 8-pin DIP sockets.

Technical Specifications

Common Applications

• PWM Generation: Controlling the speed of DC motors or dimming LEDs.

• Pulse Generation: Creating clock signals for digital circuits.

• Sequential Timing: Turning on a device after a specific delay.

• Tone Generation: Building DIY synthesizers and buzzers.
