Overview

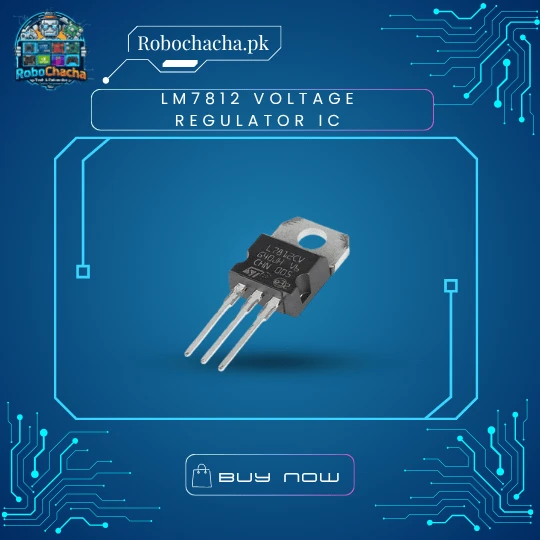

The LM7812 Voltage Regulator IC is a classic three-terminal positive regulator. Part of the iconic L78 series, this chip is designed to provide a fixed 12V output from a higher, unregulated input voltage (typically 14.5V to 35V). Its “set-it-and-forget-it” nature makes it the most popular choice for building bench power supplies, automotive electronics interfaces, and 12V logic circuits.
Key Features
Fixed 12V Output: Provides a constant, ripple-free 12V DC output even if the input fluctuates.
High Current Capability: Capable of delivering up to 1.5 Amperes of current (when properly heat-sinked).
Internal Protections: Built-in thermal-overload protection and short-circuit current limiting to prevent the chip from burning out.
Simple Implementation: Requires only two external capacitors to function as a complete, stable power station.
Standard TO-220 Package: Easily mounts to heat sinks or plugs directly into breadboards and PCBs.
Technical Specifications
| Feature | Specification |
| Output Voltage | +12V DC |
| Input Voltage (Min – Max) | 14.5V – 35V DC |
| Output Current | Up to 1.5 A |
| Dropout Voltage | 2.0V (Typical) |
| Package | TO-220 (3-Pin) |
| Operating Temp | 0°C to 125°C |
| Line Regulation | 120 mV (Max) |
Common Applications
Power Supplies: Converting 18V or 24V adapters down to 12V for hobby projects.
Automotive DIY: Powering 12V accessories safely from a car’s battery (which can spike to 14V+).
Microcontroller Logic: Providing stable power to relays and fans that require exactly 12V.
