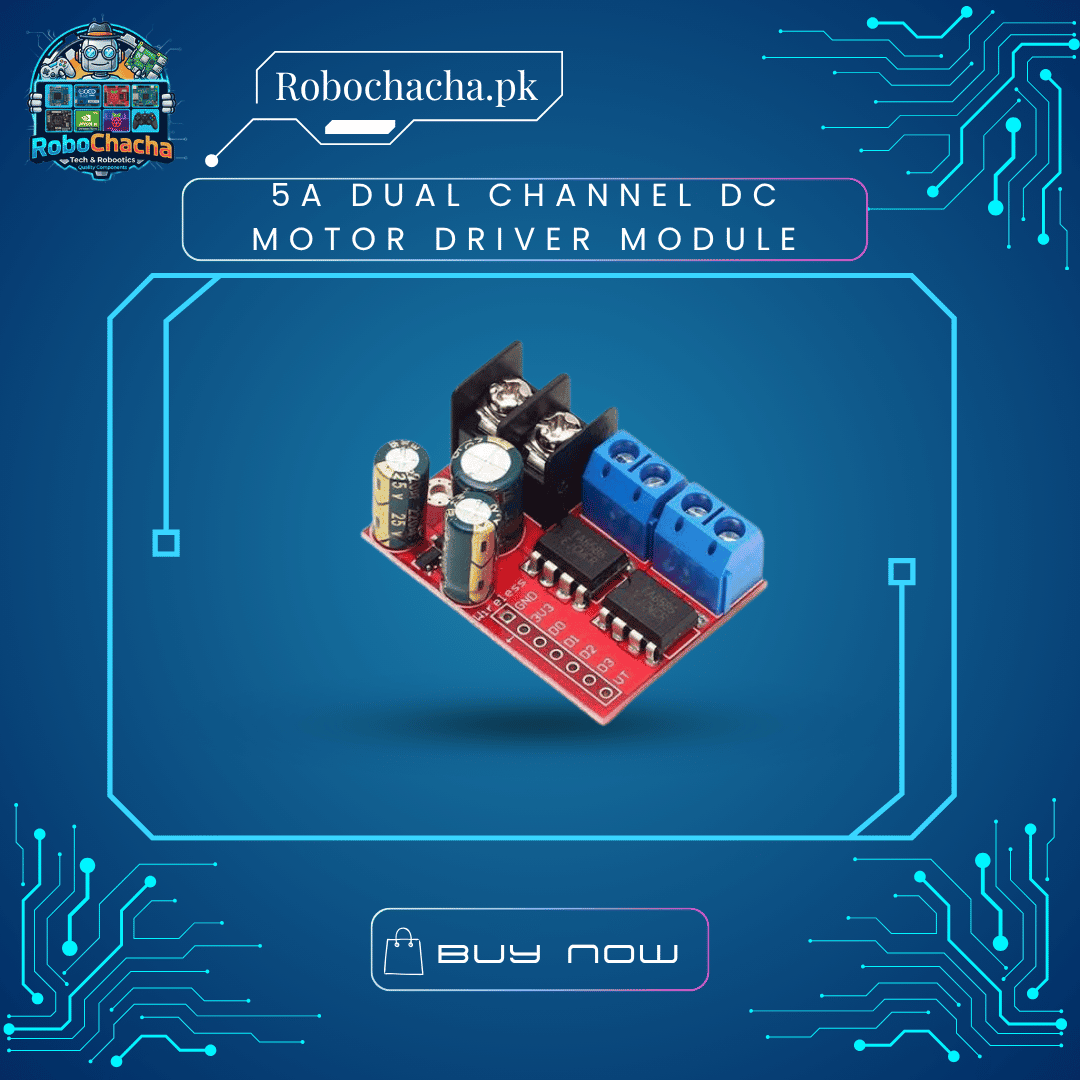

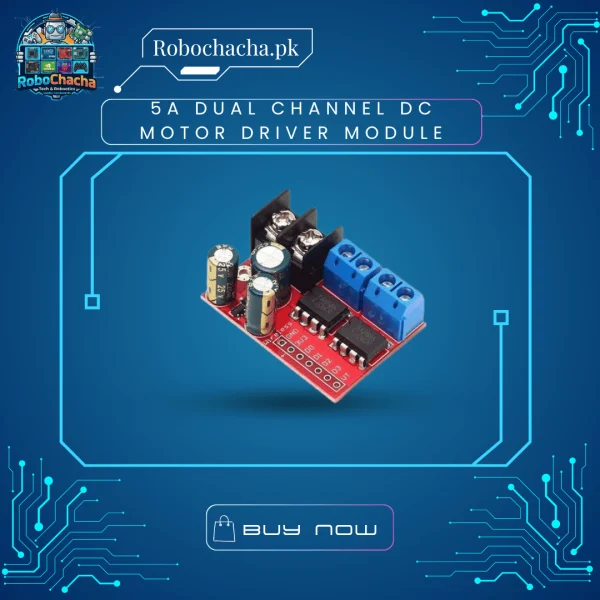

5A Dual Channel DC Motor Driver Module – PWM Speed & Direction Control for Robotics

Overview

The 5A Dual Motor Drive Module is designed for independent control of two DC motors, making it an essential component for differential-drive robots and automated systems. Utilizing high-performance H-bridge circuitry, this driver allows you to stop, start, reverse, and regulate the speed of your motors via your microcontroller (Arduino, ESP32, or Raspberry Pi). It is designed to run cool and reliably under continuous loads up to 5 Amps per channel.

Key Features

• Dual Channel Control: Drive two DC motors simultaneously with full independent control over speed and direction.

• PWM Speed Regulation: Supports Pulse Width Modulation for smooth and precise speed control from 0% to 100%.

• Reversible Operation: Logic pins allow for seamless switching between forward and reverse rotation.

• Robust Output: Capable of handling up to 5A continuous current per channel, suitable for most hobby-grade and medium-duty motors.

• Wide Input Voltage: Compatible with a range of battery setups, making it versatile for mobile projects.

Technical Specifications

Ideal Applications

• Robotics: DIY two-wheeled robots, tank chassis, and robotic arms.

• Automation: Controlling small linear actuators or motorized valves.

• Education: Learning the fundamentals of H-bridge motor control and PWM.
