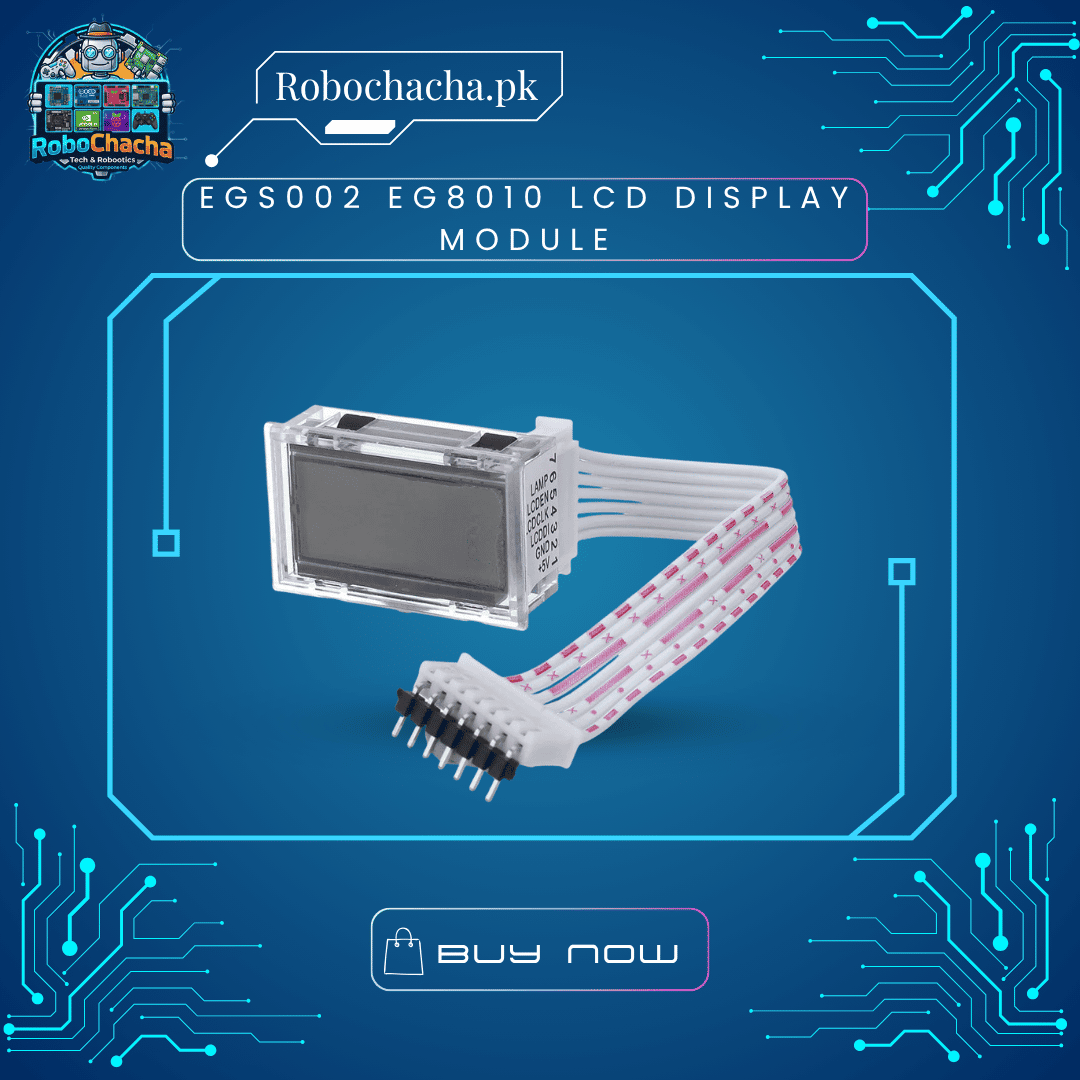

EGS002 EG8010 LCD Display Module – Digital Monitoring for Pure Sine Wave Inverters

Overview

The EGS002 LCD Display Module is the perfect “dashboard” for your pure sine wave inverter build. When paired with the popular EG8010 SPWM driver chip, it allows you to visualize critical parameters that are otherwise hidden. It is a plug-and-play solution that removes the guesswork from monitoring your power system, ensuring you know exactly how your inverter is performing under load.

Key Features

• Direct Compatibility: Designed specifically for the EGS002 driver board and EG8010 chip.

• Real-Time Monitoring: Displays output voltage, current, frequency, and power (load) percentage clearly.

• Intuitive Interface: High-contrast LCD for clear visibility in various lighting conditions.

• Easy Setup: Simple header pin connection makes it effortless to integrate into your existing control panel.

• Compact Design: Fits perfectly into standard inverter chassis and control enclosures.

Technical Specifications

Why you need this display

• Instant Diagnostics: Instantly see if your inverter is overloaded or if the output voltage is fluctuating.

• Professional Finish: Adds a finished, commercial look to your DIY inverter projects.

• Safety: Quickly identify voltage sag or frequency drift, preventing potential damage to your expensive appliances.
