Overview

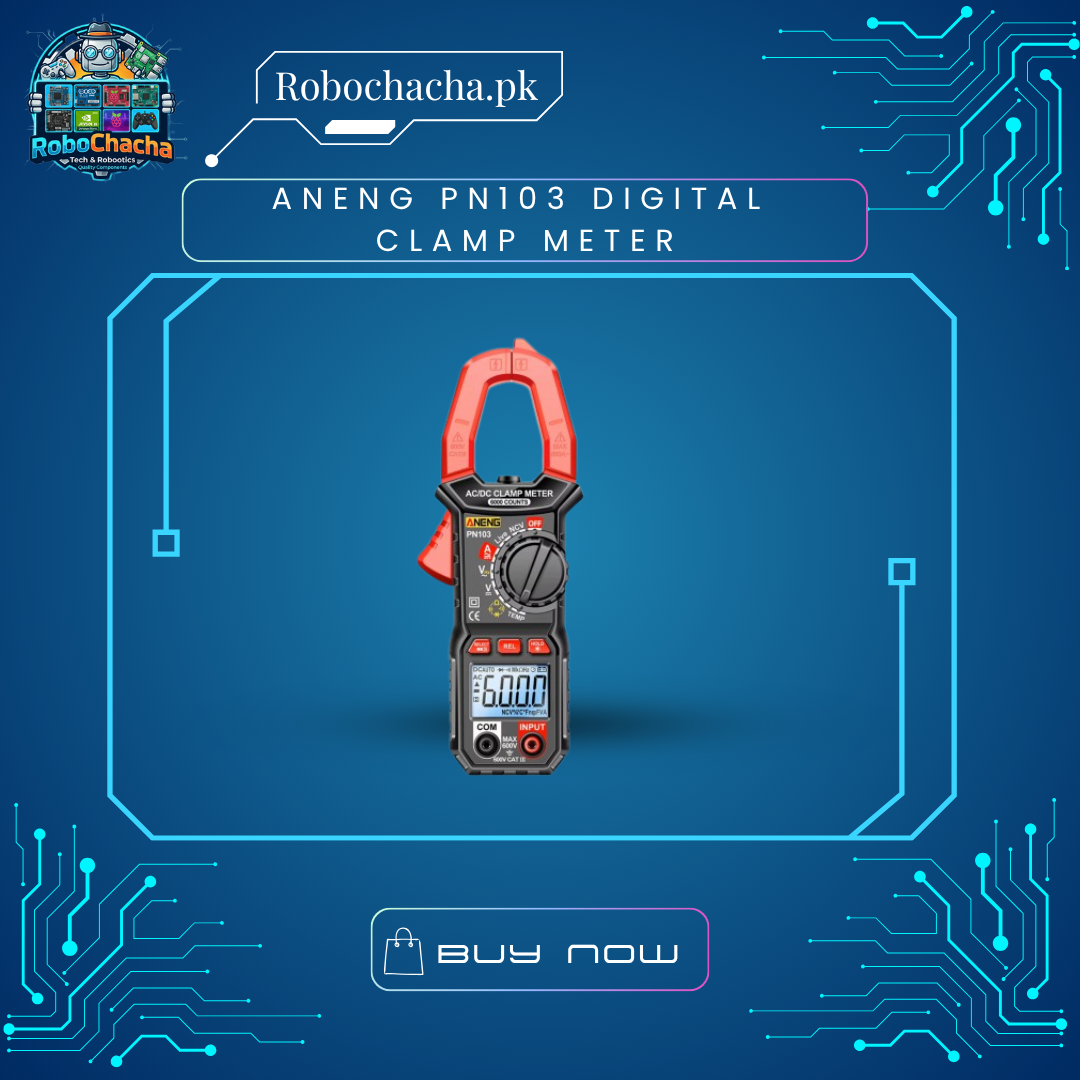

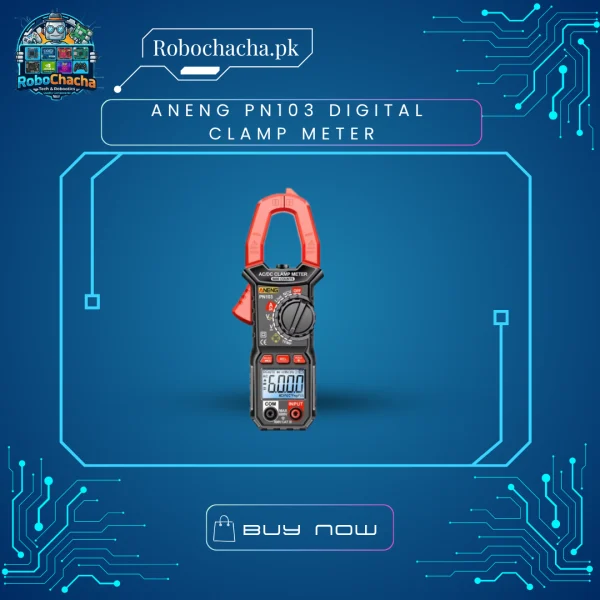

The ANENG PN103 is a high-performance, intelligent digital clamp meter designed for safety and precision. With a 6000-count auto-ranging display, it provides professional-grade accuracy for a wide variety of electrical tests. Its most powerful feature is the DC Current measurement, allowing you to diagnose automotive electrical systems and solar panels where standard AC-only clamp meters fail. It also features NCV (Non-Contact Voltage) detection, allowing you to find live wires inside walls without making contact.
Key Features
AC/DC Current Measurement: Safely measure up to 600A without disconnecting any wires.
True RMS: Provides accurate readings even on non-linear signals (essential for modern electronics).
NCV Detection: Non-contact voltage sensing with an audible alarm for maximum safety.
Inrush Current: Capture the initial surge current when a motor or compressor starts up.
Large Backlit Display: Easy-to-read 6000-count LCD, even in dark electrical panels.
Multi-Functional: Measures Temperature, Frequency, Capacitance, Resistance, and Continuity.
Technical Specifications]
| Feature | Range / Specification |
| AC/DC Current | 0A to 600A |
| AC/DC Voltage | 0V to 600V |
| Resistance | 0Ω to 60MΩ |
| Capacitance | 0nF to 60mF |
| Temperature | -20°C to 1000°C (-4°F to 1832°F) |
| Display Counts | 6000 Max |
| Power Supply | 2 x AAA Batteries (Not Included) |
| Jaw Opening | 34mm |
