Overview

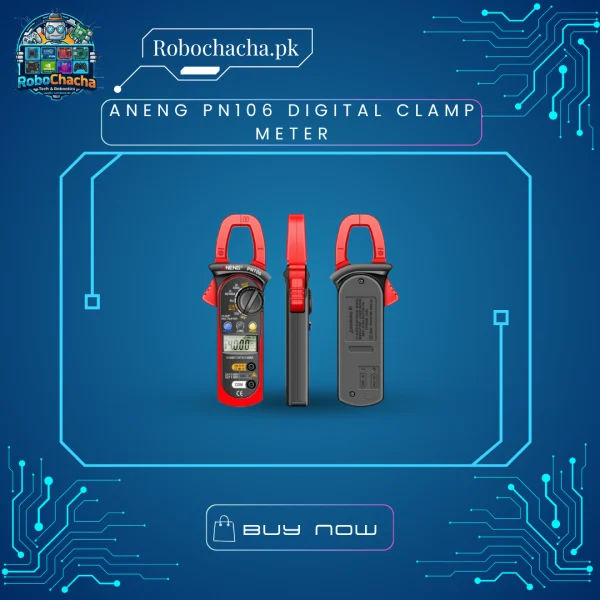

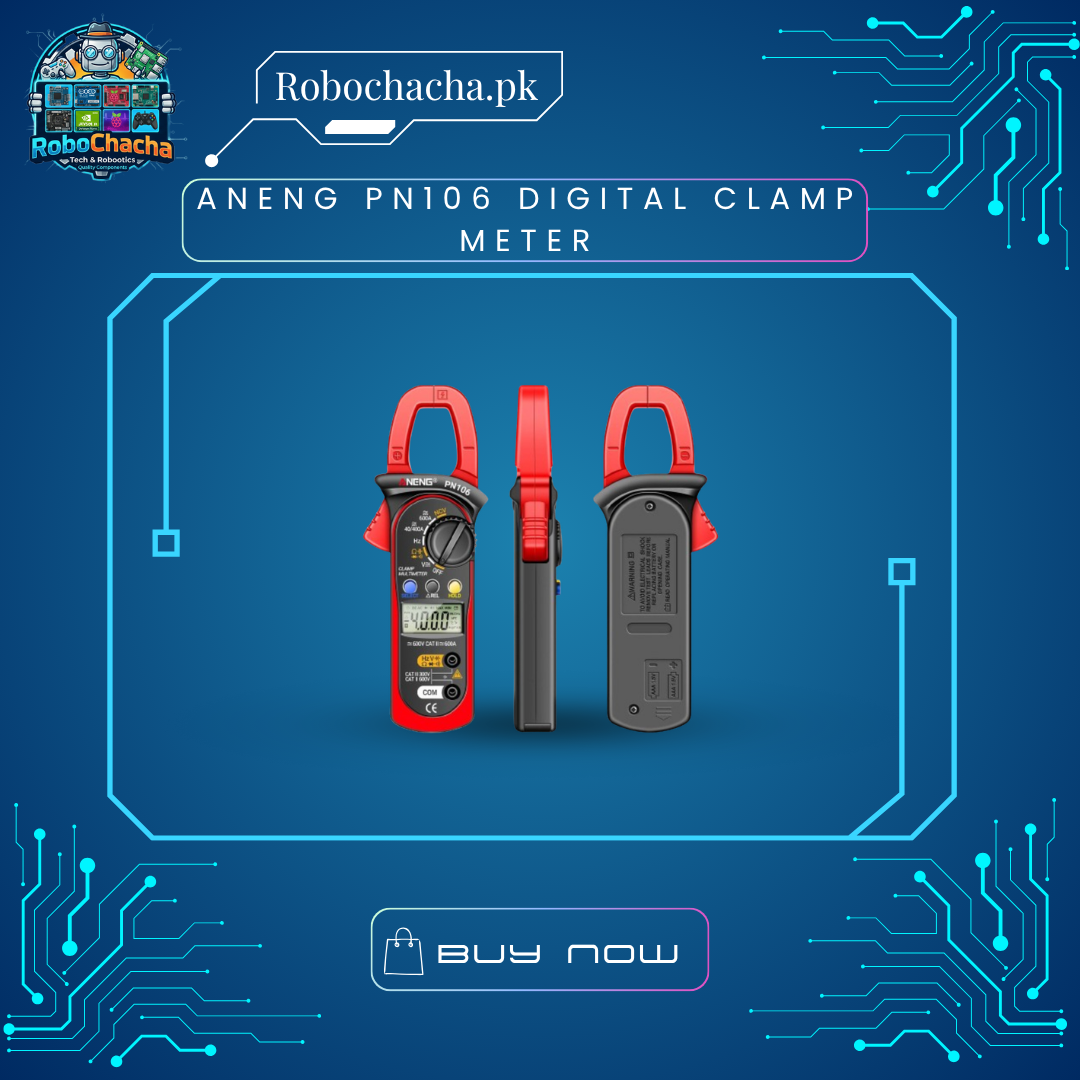

The ANENG PN106 is a professional-grade, high-precision digital clamp meter designed for both hobbyists and field technicians. Unlike basic clamp meters that only measure AC, the PN106 handles both AC and DC current, making it perfect for automotive work and solar power systems. It also functions as a full-featured multimeter, measuring voltage, resistance, capacitance, and even temperature.
Key Features
Non-Contact Measurement: Measure up to 600A of current without ever touching a live wire.
NCV (Non-Contact Voltage) Detection: Quickly check for live wires behind walls or in outlets without using probes.
True RMS: Provides accurate readings even on “noisy” AC signals (like those from motor controllers or cheap inverters).
Built-in Flashlight: Essential for working in dark DB boxes or under car dashboards.
Large Backlit Display: 6000 counts for high resolution and easy reading in any lighting condition.
Technical Specifications
| Feature | Range / Specification |
| AC Current | 0A to 600A |
| DC Current | 0A to 600A (High Precision) |
| AC/DC Voltage | 0V to 600V |
| Resistance | 0Ω to 60MΩ |
| Capacitance | 0nF to 60mF |
| Frequency | 0Hz to 10MHz |
| Temperature | -20°C to 1000°C (-4°F to 1832°F) |
| Display | 6000 Counts LCD with Backlight |
| Power | 2 x AAA Batteries (Not included) |
