Overview

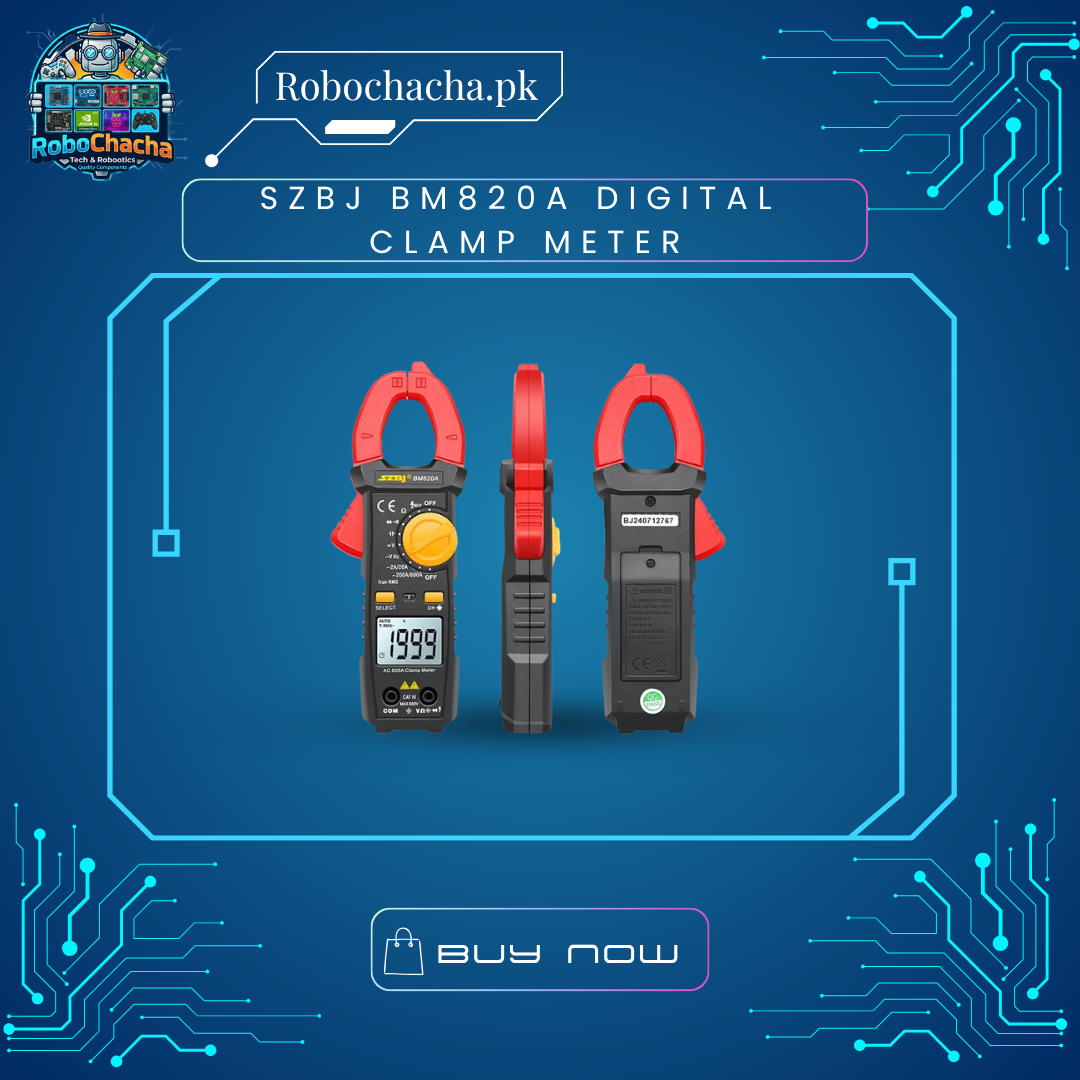

The SZBJ BM820A is a versatile and robust digital clamp meter that combines the functions of a high-end multimeter with the convenience of a current clamp. Its standout feature is the ability to measure both AC and DC Current up to 600A using a non-invasive Hall Effect clamp. Equipped with True RMS for accurate readings on distorted waveforms and a high-resolution 5999-count display, this meter ensures that you capture even the smallest fluctuations in your system.
Key Features
High-Resolution 5999-Count LCD: Provides more precise readings compared to standard 4000-count meters.
Dual AC/DC Current Sensing: Measure up to 600A without cutting wires—essential for battery systems and solar inverters.
True RMS Technology: Ensures accurate measurement of non-sinusoidal signals (common in VFDs and computer power supplies).
Full Multimeter Functions: Measures AC/DC Voltage, Resistance, Capacitance, Frequency, and Temperature.
NCV & Continuity: Includes Non-Contact Voltage detection for safety and a fast-response continuity buzzer.
Data Hold & Backlight: Perfect for working in tight, dark spaces like electrical distribution boards.
Technical Specifications
| Feature | Measurement Range |
| DC Current | 60A / 600A |
| AC Current | 60A / 600A |
| DC Voltage | 600mV to 600V |
| AC Voltage | 6V to 600V |
| Resistance | 600Ω to 60MΩ |
| Capacitance | 10nF to 100mF (High capacity support) |
| Frequency | 10Hz to 10MHz |
| Temperature | -20°C to 1000°C |
| Display Count | 5999 Counts (3 5/6 digit) |
Why the BM820A is a Professional Choice?
Higher Resolution: The extra digits in the 5999-count display allow you to see small changes that lower-end meters might round off.
Large Capacitance Range: Capable of measuring up to 100mF, making it suitable for testing large industrial and motor-start capacitors.
Rugged Design: Built to withstand the rigors of field use with a CAT III 600V safety rating.
