Overview

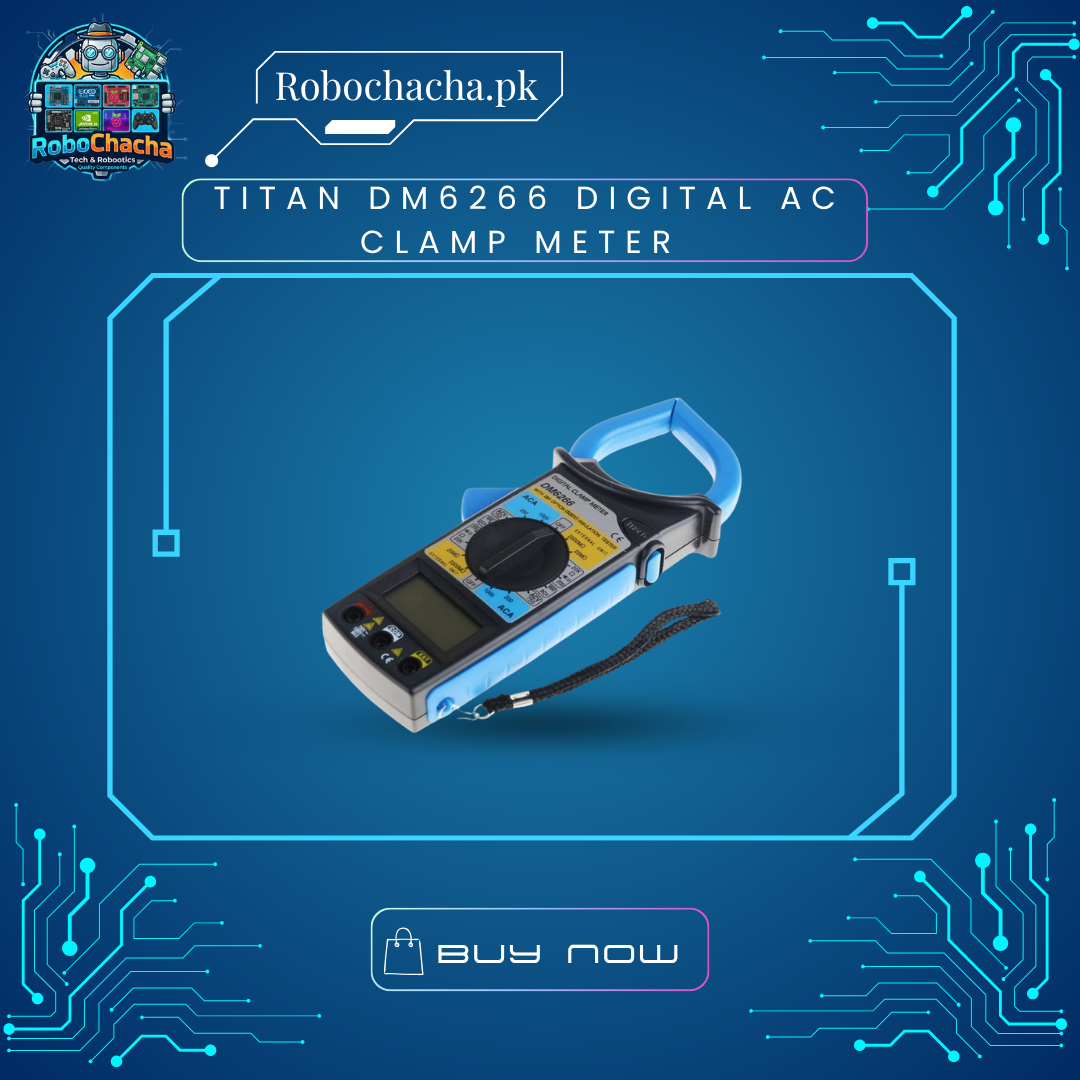

The Titan DM6266 is a classic, large-jaw digital clamp meter designed for measuring high AC currents in industrial and residential settings. With a maximum current range of 1000A AC, it is perfectly suited for testing heavy-duty motors, distribution panels, and high-load electrical lines. Its ergonomic design and data-hold function make it easy to use even in cramped or dark environments. If you need a reliable, no-nonsense tool for day-to-day electrical diagnostics, the DM6266 is the industry standard.
Key Features
Massive 1000A AC Range: Easily measure high-current electrical loads without breaking the circuit.
Large 50mm Jaw Opening: Accommodates thick cables and industrial busbars with ease.
Insulation Testing Ready: Built-in ports to connect external insulation testers (up to 2000MΩ).
High Voltage Protection: Rated for up to 1000V DC and 750V AC, ensuring safety in high-power environments.
Standard 1999 Count LCD: A clear, easy-to-read display that provides fast updates on measurements.
Data Hold Function: Freeze the reading on the screen to record data safely away from live wires.
Technical Specifications
| Feature | Measurement Range |
| AC Current | 200A / 1000A |
| AC Voltage | Up to 750V |
| DC Voltage | Up to 1000V |
| Resistance | 200Ω / 20kΩ |
| Insulation Test | 20MΩ / 2000MΩ (with optional unit) |
| Continuity | Built-in Buzzer (<50Ω) |
| Power Supply | 9V Battery (6F22) |
| Jaw Opening | 50mm (Approx.) |
Why the DM6266 is a Must-Have?
Durability: Unlike delicate electronics meters, this is built with a hard-plastic shell to survive being dropped in toolbags.
Focus on AC: It is optimized specifically for AC current monitoring, which covers 90% of industrial and home electrical issues.
Safety First: Large, shielded jaws keep the user at a safe distance from high-voltage conductors.
