Overview

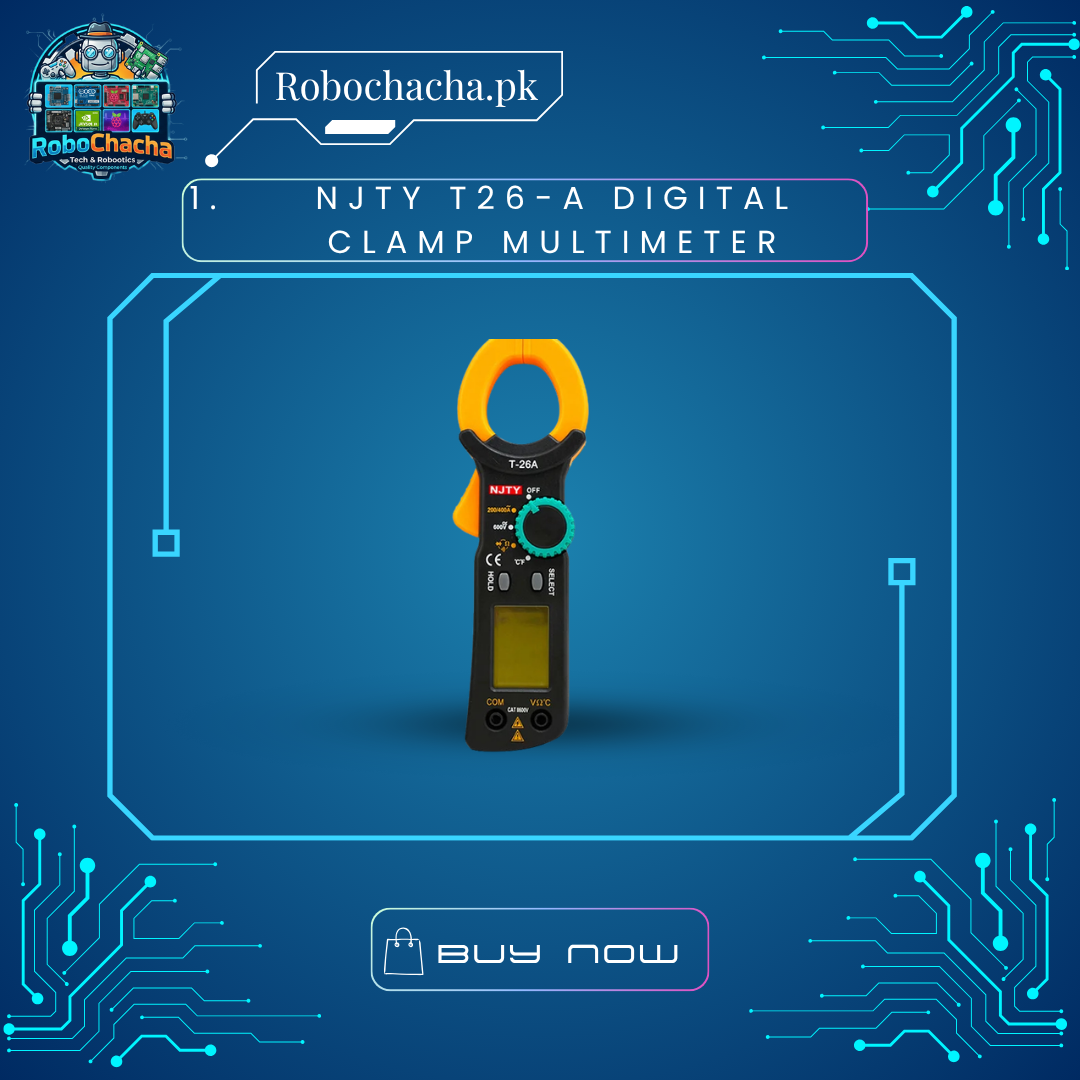

The NJTY T26-A is a high-performance, auto-ranging digital clamp meter that combines safety with precision. Its non-contact clamp design allows you to measure AC up to 400A simply by encircling a single wire. Beyond current, it serves as a comprehensive diagnostic tool, measuring AC/DC voltage, resistance, and temperature, making it a perfect companion for troubleshooting solar inverters, home wiring, and industrial panels.
Key Features
Non-Contact Measurement: Large 30mm jaw opening allows for safe AC current testing without direct contact with live wires.
Multi-Function Testing: Measures AC/DC Voltage, Resistance, Diode, and Continuity with a built-in buzzer.
Temperature Sensing: Includes a K-type thermocouple probe to measure temperatures from -30C to 1000C.
User-Friendly Design: Features a large 1999-count LCD screen, data hold button, and an automatic power-off function to save battery.
Safety First: Built-in overload protection across all ranges to ensure technician safety during high-power testing.
Technical Specifications
| Feature | Specification |
| Model | T26-A (Original NJTY) |
| Max Display | 1999 Counts |
| AC Current (ACA) | 2A / 20A / 200A / 400A ±(2.5%+5) |
| DC Voltage (DCV) | 600V ±(1.0%+5) |
| AC Voltage (ACV) | 600V ±(1.5%+5) |
| Resistance | 200Ω to 20MΩ |
| Temperature | -30°C to 1000°C |
| Jaw Opening | 30 mm |
| Power Supply | 2 x 1.5V AAA Batteries (Not included) |
| Dimensions | Approx. 183mm x 63mm x 29mm |
Package Includes:
1 x NJTY T26-A Clamp Meter
1 x Pair of Test Leads (Probes)
1 x Temperature Probe (Thermocouple)
1 x User Manual
1 x Carrying Case/Bag
