Overview

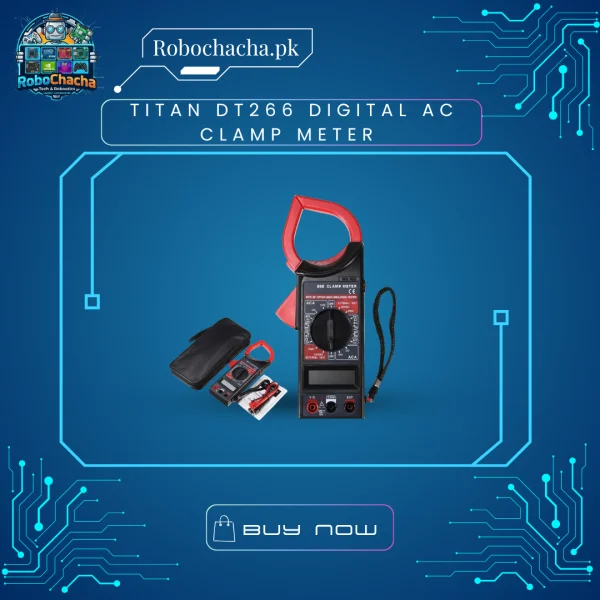

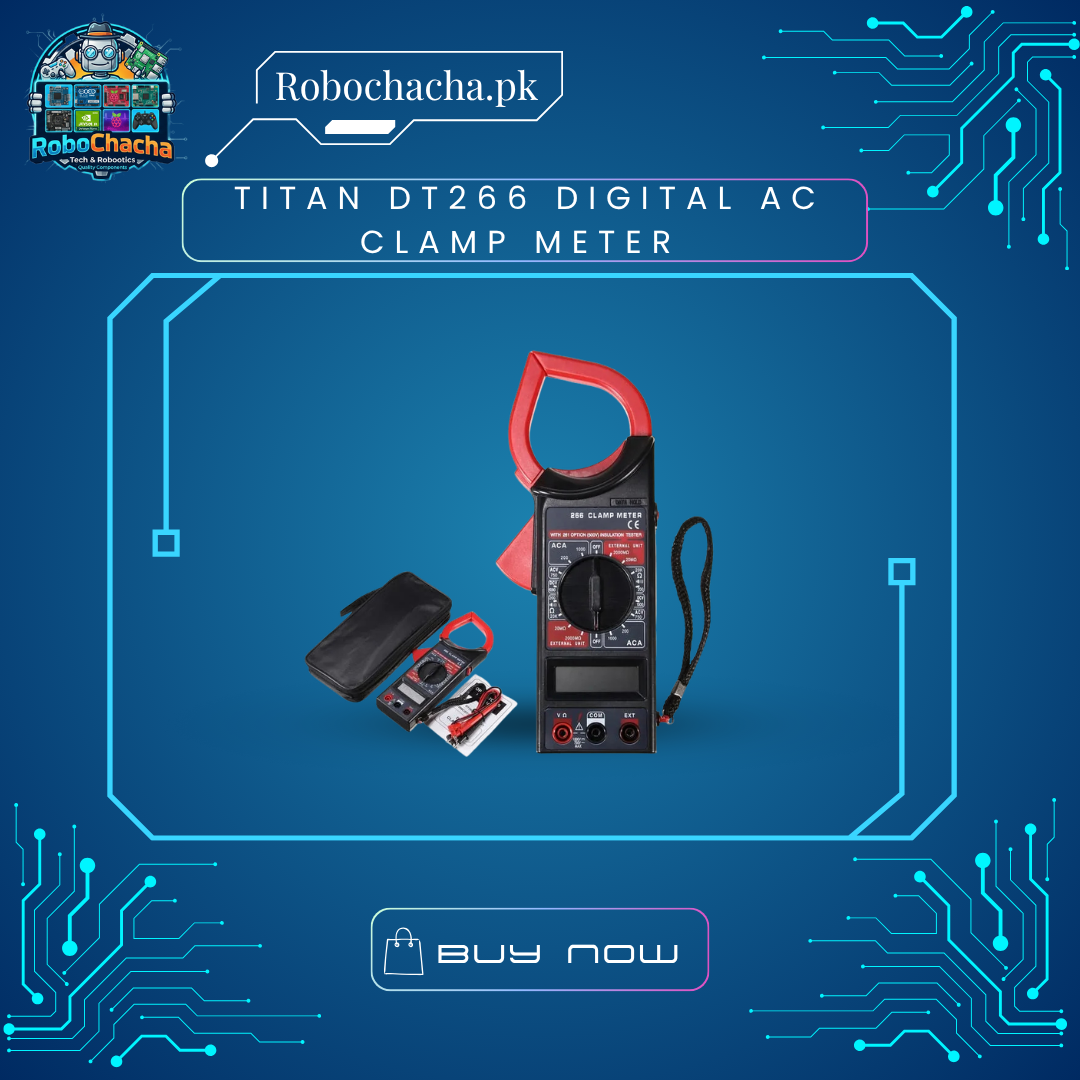

The TITAN DT266 is a versatile digital clamp meter designed for safety and ease of use. It allows for the measurement of high AC currents in conductors without interrupting the circuit. With its wide 50mm jaw opening and comprehensive multimeter functions (Voltage, Resistance, Continuity), it is an ideal tool for troubleshooting HVAC systems, electrical panels, and heavy machinery. It also supports external insulation testing modules for advanced diagnostic work.
Key Features
High Current Range: Measures AC current up to 1000A, suitable for industrial and residential applications.
Large 50mm Clamp Jaw: Easily fits around thick cables and bundles of wires.
Data Hold Function: Allows you to freeze a measurement on the screen for easy recording in tight spaces.
Safety & Protection: Overload protection on all ranges and a ruggedized plastic shell for field durability.
Continuity Buzzer: Includes an audible signal for fast wiring checks and circuit tracing.
Insulation Test Support: Features dedicated ports for connecting 500V insulation testing units.
Technical Specifications
| Feature | Measurement Range |
| AC Current | 200A / 1000A |
| AC Voltage | Up to 750V |
| DC Voltage | Up to 1000V |
| Resistance | Up to 20kΩ |
| Insulation Test | 20MΩ to 2000MΩ (With external unit) |
| Display | 3.5 Digit LCD (Max 1999) |
| Sampling Rate | 3 times per second |
| Battery Type | 9V (6F22) |
Ideal For:
Maintenance Electricians: Testing motor currents and panel loads.
HVAC Technicians: Diagnosing compressor and fan motor issues.
DIY Enthusiasts: Safe home electrical troubleshooting.
Apprentices: A reliable, cost-effective starter meter for technical training.
