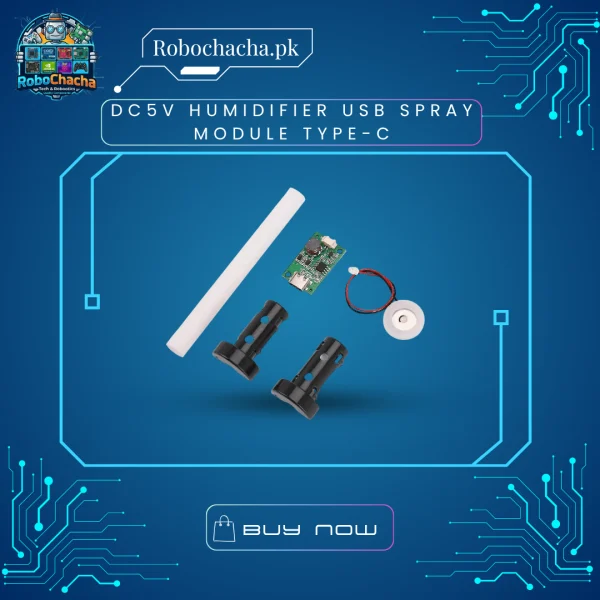

DC5V Humidifier USB Spray Module Type-C – Ultrasonic Atomizer Driver Board with Ceramic Mist Maker in Pakistan

Overview

The DC5V Ultrasonic Humidifier Driver Module is an easy-to-use DIY kit for creating high-frequency misting systems. Operating via a modern Type-C USB input, the driver board sends high-frequency electrical pulses to the microporous atomizing sheet. The ceramic disc vibrates at an ultrasonic frequency to atomize water droplets effortlessly. It features an integrated tactile switch for easy power control, making it perfect for smart desktop humidifiers, incubator humidity control systems, and automated indoor gardening prototypes.

Key Features

• Modern Type-C Interface: Powered easily by phone chargers, power banks, or laptop USB ports.

• Ultrasonic Cold Mist: The microporous ceramic transducer atomizes water instantly without getting hot, ensuring safe indoor operation.

• Plug-and-Play Assembly: Simple wire connections between the driver board and the misting disc.

• One-Button Control: Features an onboard tactile push button to alternate between continuous spray, intermittent spray, and shutdown modes.

• Automation Friendly: The board can be integrated with relays or microcontrollers (like Arduino, ESP32, or Pi Pico) for smart humidity management.

Technical Specifications

Usage Instructions

1. Ensure the white ceramic atomizing sheet is placed correctly facing up (the side with the soldered wire leads or rubber ring ridge generally sits face down toward the water source).

2. Use a cotton swab or absorbent wick to feed water to the underside of the ceramic disc. The disc needs to draw water dynamically; completely submerging the entire disc in water will stop it from vibrating effectively.

3. Plug in the Type-C cable and click the button to begin misting.
