Overview

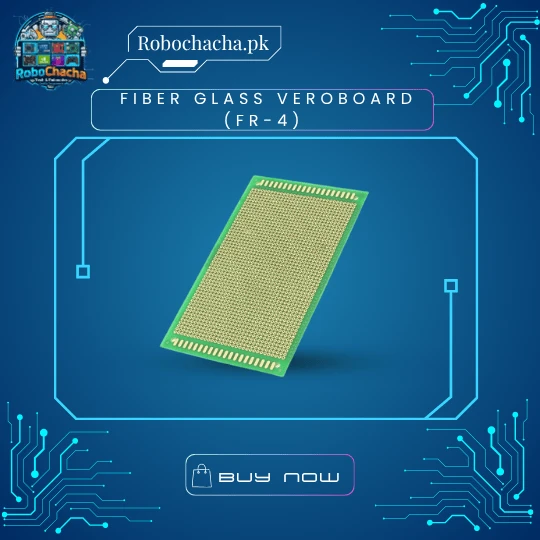

The Fiber Glass Veroboard, manufactured from high-density FR-4 material, is designed for high-reliability electronics prototyping. Unlike standard paper-based boards, the fiberglass substrate is flame-retardant and exceptionally strong. It features Double-Sided Tinned Holes, meaning you can solder components on both sides, making it perfect for compact, high-density layouts or building custom shields for Arduino and ESP32.
Key Features
FR-4 High-Grade Material: Does not warp, bend, or snap easily under the weight of heavy components or heat.
Double-Sided Connectivity: Every hole is plated through (tinned), allowing for stronger mechanical joints and dual-layer routing.
Heat Resistant: Copper pads are bonded with high-quality epoxy, preventing them from peeling or “lifting” even during repeated soldering/desoldering.
Standard 2.54mm Grid: Perfectly spaced for ICs, sensors, and headers.
Professional Aesthetics: Usually comes in a sleek green or blue finish with white silk-screen coordinates for easy component placement.
Technical Specifications
| Feature | Specification |
| Material | FR-4 Grade Fiber Glass |
| Hole Pitch | 2.54mm (0.1″) |
| Hole Diameter | 1.0mm |
| Board Thickness | 1.6mm (Standard) |
| Plating | Tinned / Lead-Free |
| Available Sizes | 5x7cm, 7x9cm, 9x15cm, 10x15cm |
